Female header connectors

Female header connectors, PCB connectors, electronic connectors, wire-to-board connectors, dual-row female header connectors, single-row female header connectors, through-hole connectors, SMT connectors, durable connectors, reliable connectors, high-performance connectors, electronic component connectors, customizable connectors, solderable connectors, industrial connectors, secure connections, compact connectors, efficient connectors, high-quality female header connectors, connector suppliers, connector manufacturers, precision connectors, affordable connectors

Enlarge

Quick View

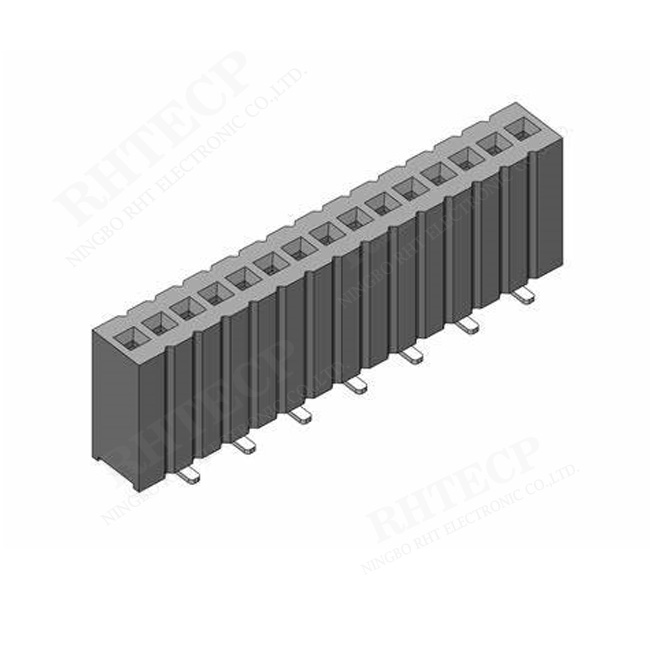

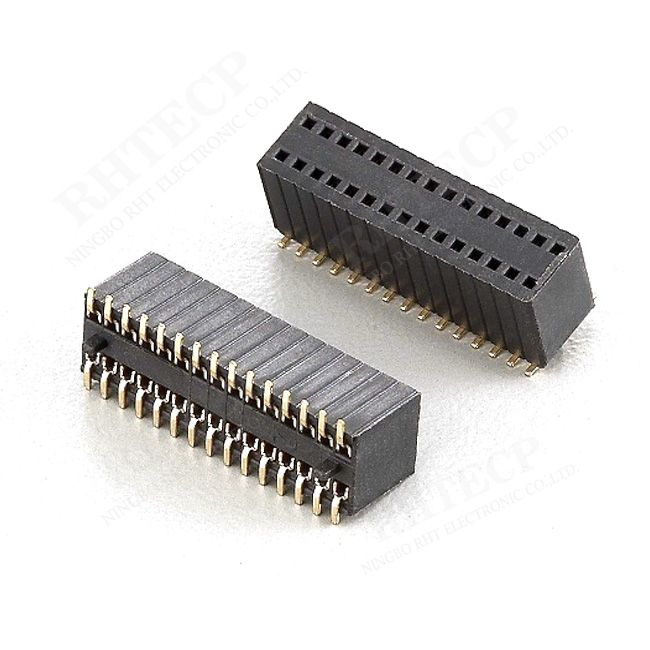

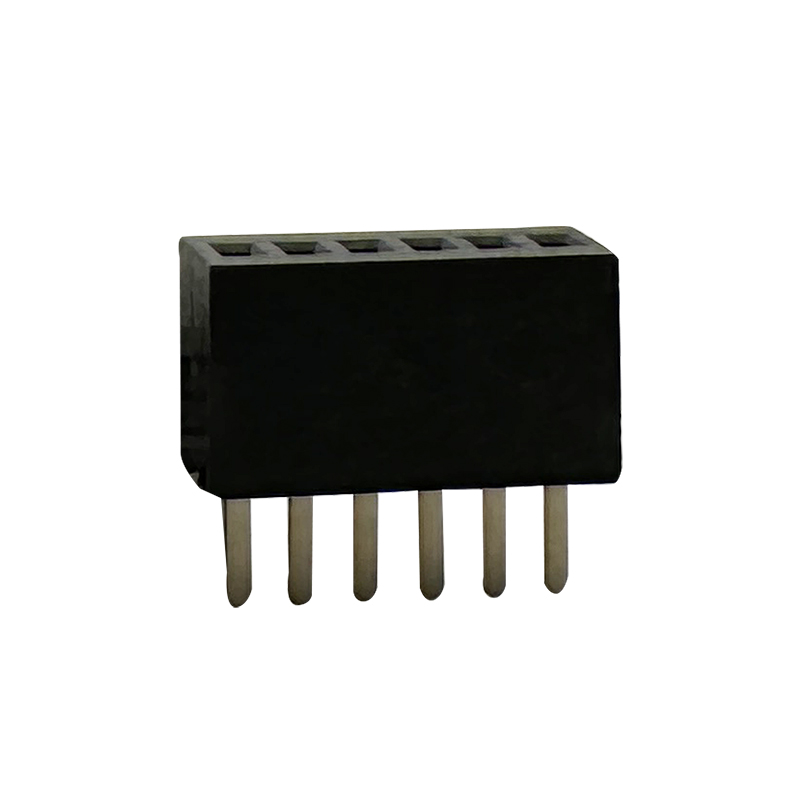

1.27mm Pitch Female Header Connector Height 4.3mm:RHTAY08C-4.3&RHTAY08CA-4.3

Series Part No:RHTAY08C-4.3&RHTAY08CA-4.3

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch:1.27mm (0.05 inches) pitch, indicating the center-to-center distance between adjacent pins.

-Height:4.3mm, which is the overall height of the connector from the base to the top, providing slightly more clearance than the 3.4mm version.

- Number of Positions: Available in various pin counts, often ranging from a few positions up to 50 or more, depending on the specific application requirements.

-Contact Material:Typically made of phosphor bronze or copper alloy, which offers good conductivity and mechanical strength.

Applications

1. IoT Devices

2. LED Lighting

3. Wearable Technology

4. Gaming Consoles

Specifications

1.27mm Pitch Female Header Connector Height 4.3mm

Order Information

RHTAY08C-4.3-2-XX-T-B

Type: 208C or 208CA

Height: 4.3mm

1-Single layer 2-Double layer

XX-Total pin number (No.of 2~100pin)

S-Straight Pin R-Right Angle Pin T-SMT Pin RM-SMD pin

Material:B=PA6T C=LCP

Material:

Housing: PA6T or LCP UL94V-0

Contacts: Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 1.0 AMP

Withstanding Voltage: 500V AC/DC

Insulator Resistance: 1000MΩ Min

Contact Resistance: 20mΩ Max

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

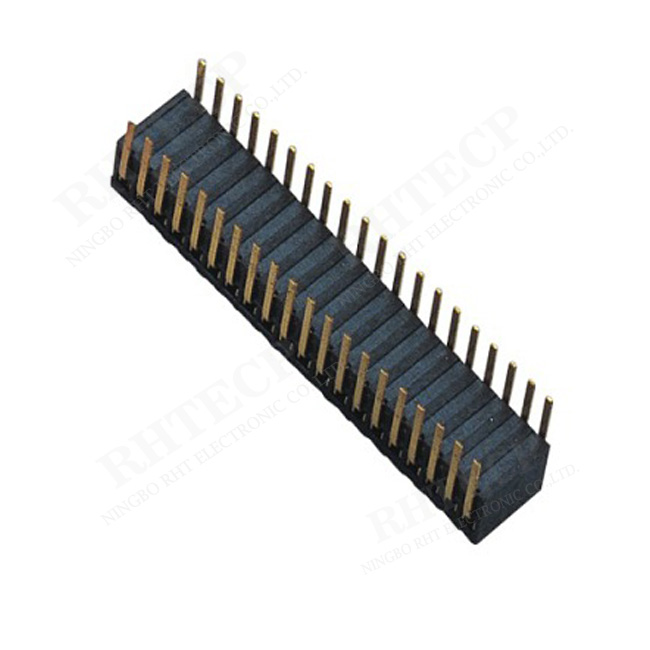

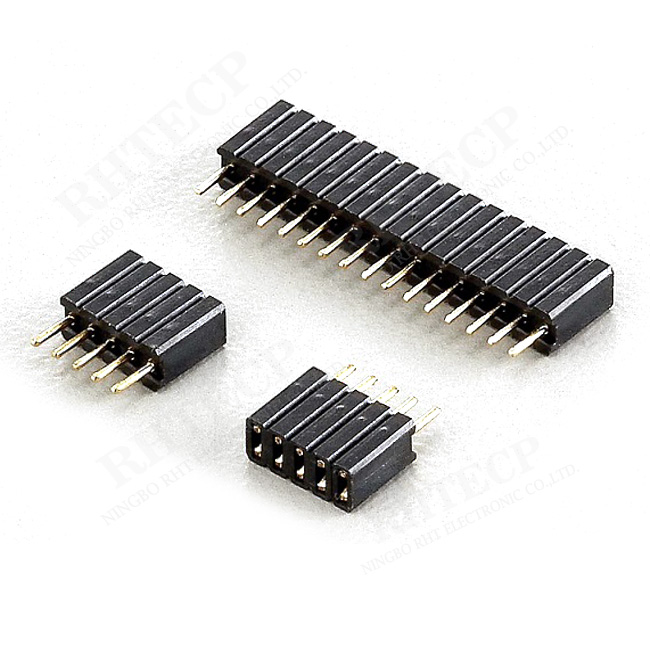

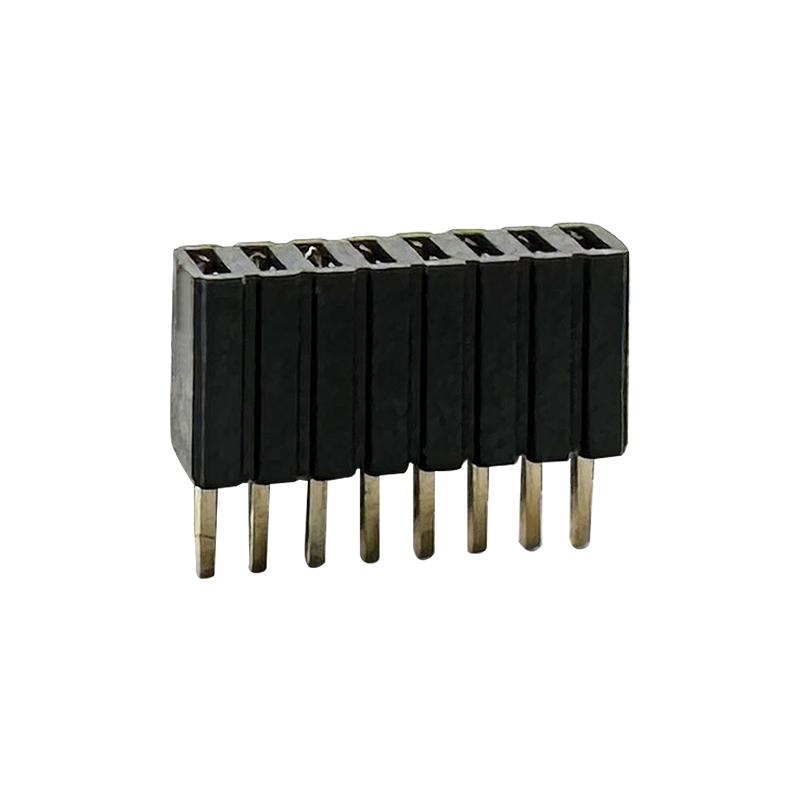

1.27mm Pitch Female Header Connector Height 4.6mm:RHTAY08C-4.6

Series Part No:RHTAY08C-4.6

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Mounting Type:Can be through-hole or surface mount, depending on the design and application needs.

-Current Rating:Usually rated for low to moderate current levels, typically around 1A to 3A per pin, but this can vary.

-Operating Temperature Range:Designed to operate within a range of -40°C to +105°C, making them suitable for various environments.

-Mating Cycles: Designed to withstand multiple mating and unmating cycles, typically in the range of 100 to 500 cycles, ensuring durability.

Applications

1. LED Lighting

2. Wearable Technology

3. Gaming Consoles

4. Embedded Systems

Specifications

1.27mm Pitch Female Header Connector Height 4.6mm

Order Information

RHTAY08C-4.6-1-XX-S-B

Height: 4.6mm

1-Single layer

XX-Total pin number (No.of 1~50pin)

S-Straight Pin T-SMT Pin

Material:B=PA6T C=LCP

Material:

Housing: PA6T or LCP UL94V-0

Contacts: Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 1.0 AMP

Withstanding Voltage: 500V AC/DC

Insulator Resistance: 1000MΩ Min

Contact Resistance: 20mΩ Max

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

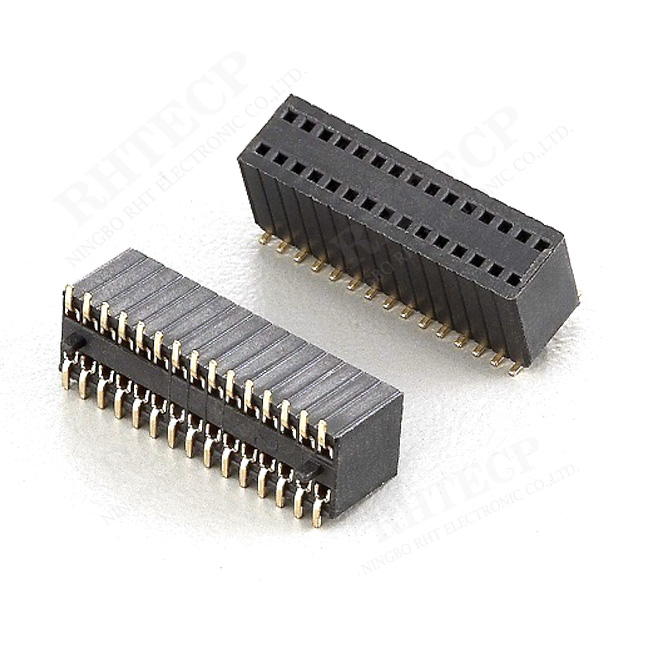

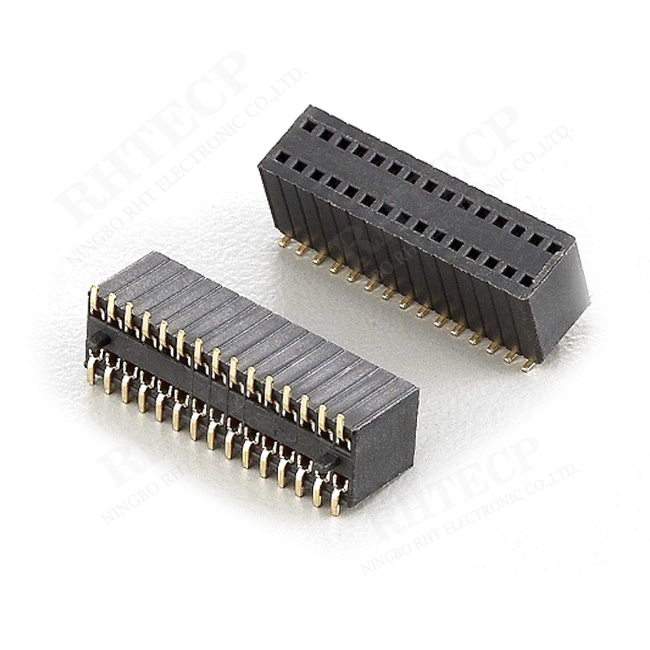

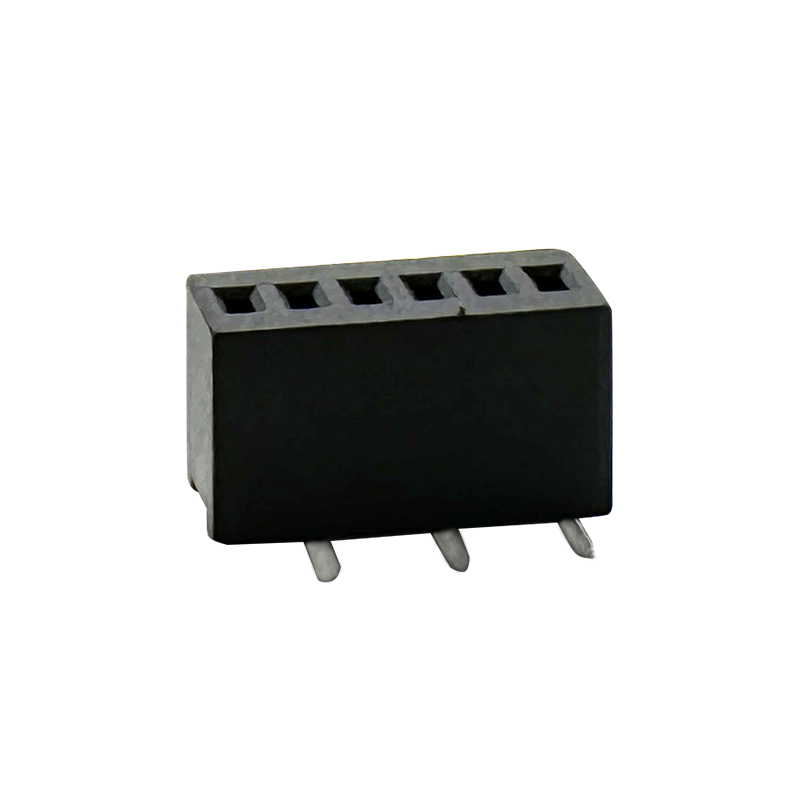

1.27mm Pitch Female Header Connector Height 5.7mm:RHTAY08C-5.7

Series Part No:RHTAY08C-5.7

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Pitch:1.27mm (0.05 inches) pitch, which refers to the distance between the centerlines of adjacent contacts. This pitch size is common in applications where a compact form factor is required.

-Height:5.7mm height from the base to the top of the connector. The increased height compared to standard connectors can accommodate components or provide additional clearance for PCBs or other elements.

-Number of Positions: Available in various configurations with different numbers of positions (pins), typically ranging from a few positions to multiple rows and higher pin counts. This flexibility allows for versatile connectivity options.

-Contact Material: Usually made from materials such as phosphor bronze or copper alloy, providing good electrical conductivity and mechanical strength.

Applications

1. Industrial Automation

2. Medical Devices

3. Automotive Electronics

4. Test and Measurement Instruments

Specifications

1.27mm Pitch Female Header Connector Height 5.7mm

Order Information

RHTAY08C-5.7-1-XX-T1-L1xL2-N-B-R

Height: 5.7mm

1-Single layer

XX-Total pin number (No.of 1~50pin)

SMT Pin:T1,T2,RＭ

Size: L1xL2

Material:B=PA6T C=LCP

Material:

Housing: PA6T or LCP UL94V-0

Contacts: Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 1.0 AMP

Withstanding Voltage: 500V AC/DC

Insulator Resistance: 1000MΩ Min

Contact Resistance: 20mΩ Max

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.27mm Pitch Female Header Connector Height 8.5mm : onnector Height 8.5mm : RHTAY08C-8.5

Series Part No:RHTAY08C-8.5

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High-Density 1.27mm Pitch: Designed for compact PCB layouts requiring fine pitch connectors, ideal for miniaturized electronic devices.
-Female Header Design: Provides a secure socket interface for male pins, ensuring stable and reliable electrical connections in tight spaces.
-8.5mm Height: Offers sufficient clearance for component stacking and easy mating with corresponding connectors, facilitating flexible PCB design.
-Compact and Lightweight: Perfect for space-constrained applications such as mobile devices, wearables, and small form-factor electronics.

Applications

1.Consumer Electronics
2.Medical Devices
3.Embedded Systems
4.Wearable Technology

Specifications

1.27mm Pitch Female Header Connector Height 8.5mm
Order Information
RHTAY08C-8.5-1-XX-S-B
Height: 8.5mm
1-Single layer
XX-Total pin number (No.of 1~50pin)
S-Straight Pin
Material:B=PA6T C=LCP
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

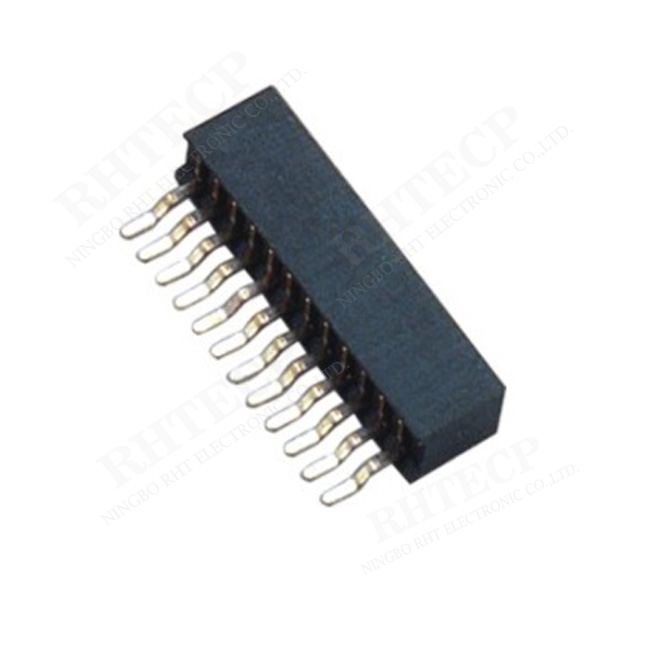

1.27mm Pitch Female Header Connector Height 3.4mm Side Entry : RHTAY08CP-3.4

Series Part No:RHTAY08CP-3.4

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Versatile Mounting: Available in surface-mount and through-hole configurations
-Durable Materials: High-temperature thermoplastic housing with gold or tin-plated contacts for superior performance
-RoHS & REACH Compliant: Environmentally safe and industry-standard compliant
-Wide Compatibility: Interfaces easily with standard 1.27mm pitch male headers

Applications

1.Embedded Computing Systems
2.Consumer Electronics
3.Medical Devices
4.Automotive Electronics

Specifications

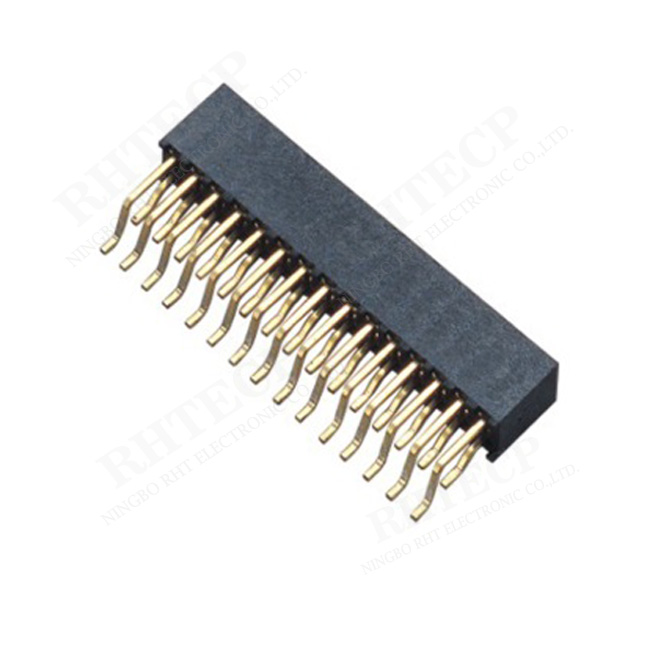

1.27mm Pitch Female Header Connector Height 3.4mm Side Entry
Order Information
RHTAY08CP-3.4-2-XX-T-B
Height: 3.4mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pin)
R-Right Angle Pin T-SMT Pin
Material:B=PA6T C=LCP
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.27x2.54mm Pitch Female Header Connector Height 4.6mm :RHTAY08D-4.6

Series Part No:RHTAY08D-4.6

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

- Typically used to create a detachable connection between two PCBs or between a PCB and other components.

- Current Rating: The female header connector typically supports current ratings between 1-3A (depending on the pin size and material), making it suitable for signal and low-power applications.

-Voltage Rating: The voltage rating for this type of connector is typically 50V - 250V, depending on the material and design.

- Durability: It can withstand several thousand mating cycles, ensuring a long operational life for applications with frequent connect/disconnect cycles.

Applications

1. Consumer Electronics

2. Industrial Equipment

3. Communication Devices

4. Automotive Electronics

Specifications

1.27x2.54mm Pitch Female Header Connector,Height: 4.6mm

Order Information

RHTAY08D-4.6-2-XX-S-B

Height: 4.6mm

2-Double layer

XX-Total pin number (No.of 2~80pin)

S-Straight Pin T-SMT Pin

Material:B=PA6T C=LCP

Material:

Housing: PA6T or LCP UL94V-0

Contacts: Brass or Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 1.0 AMP

Withstanding Voltage: 500V AC/DC

Insulator Resistance: 1000MΩ Min

Contact Resistance: 20mΩ Max

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

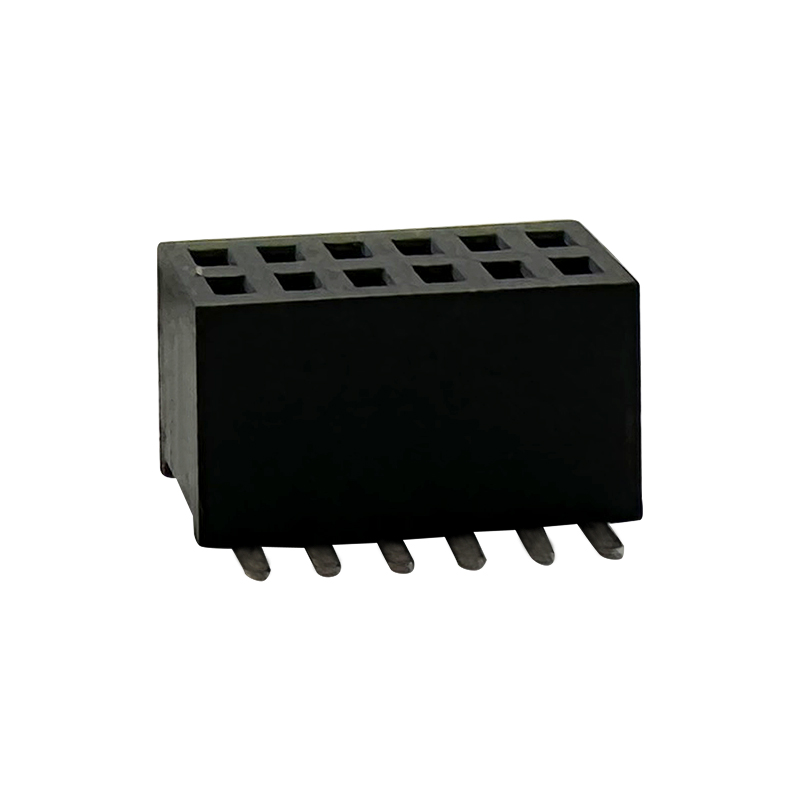

1.27x2.54mm Pitch Female Header Connector Height 5.7mm:RHTAY08D-5.7

Series Part No:RHTAY08D-5.7

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-The height allows for better clearance and mechanical stability in PCB stacking applications.

-Socket Connector: Designed to receive male header pins for detachable, secure electrical connections.

-Multiple Pin Configurations: Available in single-row or dual-row versions to support different circuit layouts.

-Housing Material: Made of high-temperature-resistant plastic such as PA6T, PBT, or LCP, ensuring durability and resistance to wear.

Applications

1.Consumer Electronics

2.Industrial Equipment

3. Communication & Networking

4. Automotive Electronics

Specifications

1.27x2.54mm Pitch Female Header Connector,Height: 4.6mm

Order Information

RHTAY08D-5.7-2-XX-T3-L1xL2

Height: 5.7mm

2-Double layer

XX-Total pin number (No.of 2~80pin)

SMT:T=Without post T3=With post

Size:L1xL2

Material:

Housing: PA6T or LCP UL94V-0

Contacts: Brass or Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 1.0 AMP

Withstanding Voltage: 500V AC/DC

Insulator Resistance: 1000MΩ Min

Contact Resistance: 20mΩ Max

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

1.27x2.54mm Pitch Female Header Connector Height 8.5mm : RHTAY08D-8.5

Series Part No:RHTAY08D-8.5

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Robust Construction: Made with high-quality thermoplastic housing and reliable metal contacts
-Mounting Options: Available in through-hole or surface-mount configurations
-High Durability: Supports multiple mating cycles for long-term reliability
-Good Electrical Performance: Ensures stable signal transmission with low contact resistance

Applications

1.Networking Hardware
2.Automotive Electronics
3.Power Management Systems
4.IoT Devices

Specifications

1.27x2.54mm Pitch Female Header Connector,Height: 8.5mm
Order Information
RHTAY08D-8.5-2-XX-S-B
Height: 8.5mm
2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin T-SMT Pin
Material:B=PA6T C=LCP
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 next page
