Features
- Typically used to create a detachable connection between two PCBs or between a PCB and other components.
- Current Rating: The female header connector typically supports current ratings between 1-3A (depending on the pin size and material), making it suitable for signal and low-power applications.
-Voltage Rating: The voltage rating for this type of connector is typically 50V - 250V, depending on the material and design.
- Durability: It can withstand several thousand mating cycles, ensuring a long operational life for applications with frequent connect/disconnect cycles.
Applications
1. Consumer Electronics
2. Industrial Equipment
3. Communication Devices
4. Automotive Electronics
Specifications

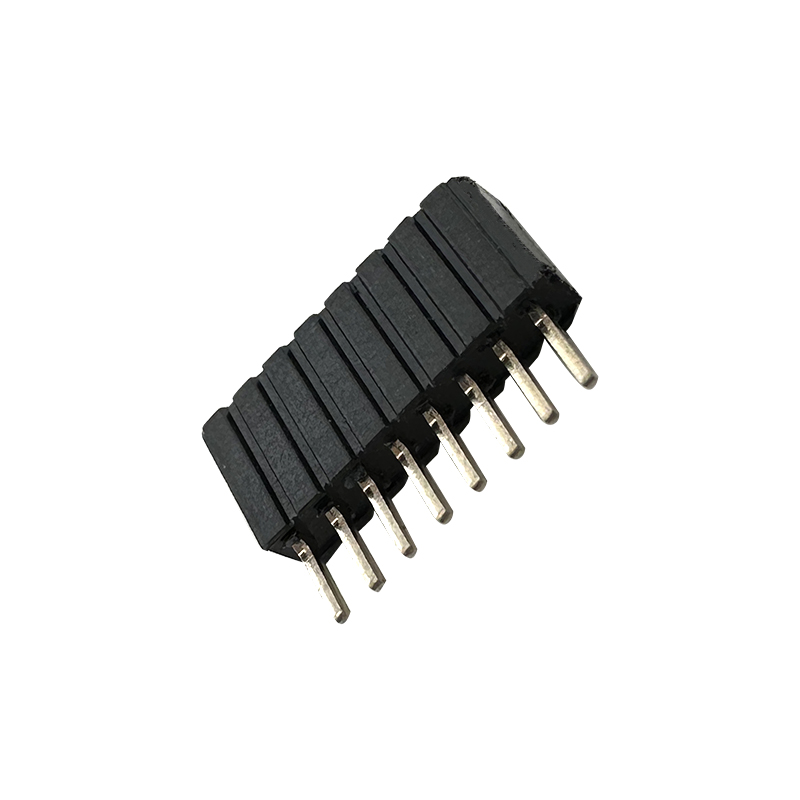

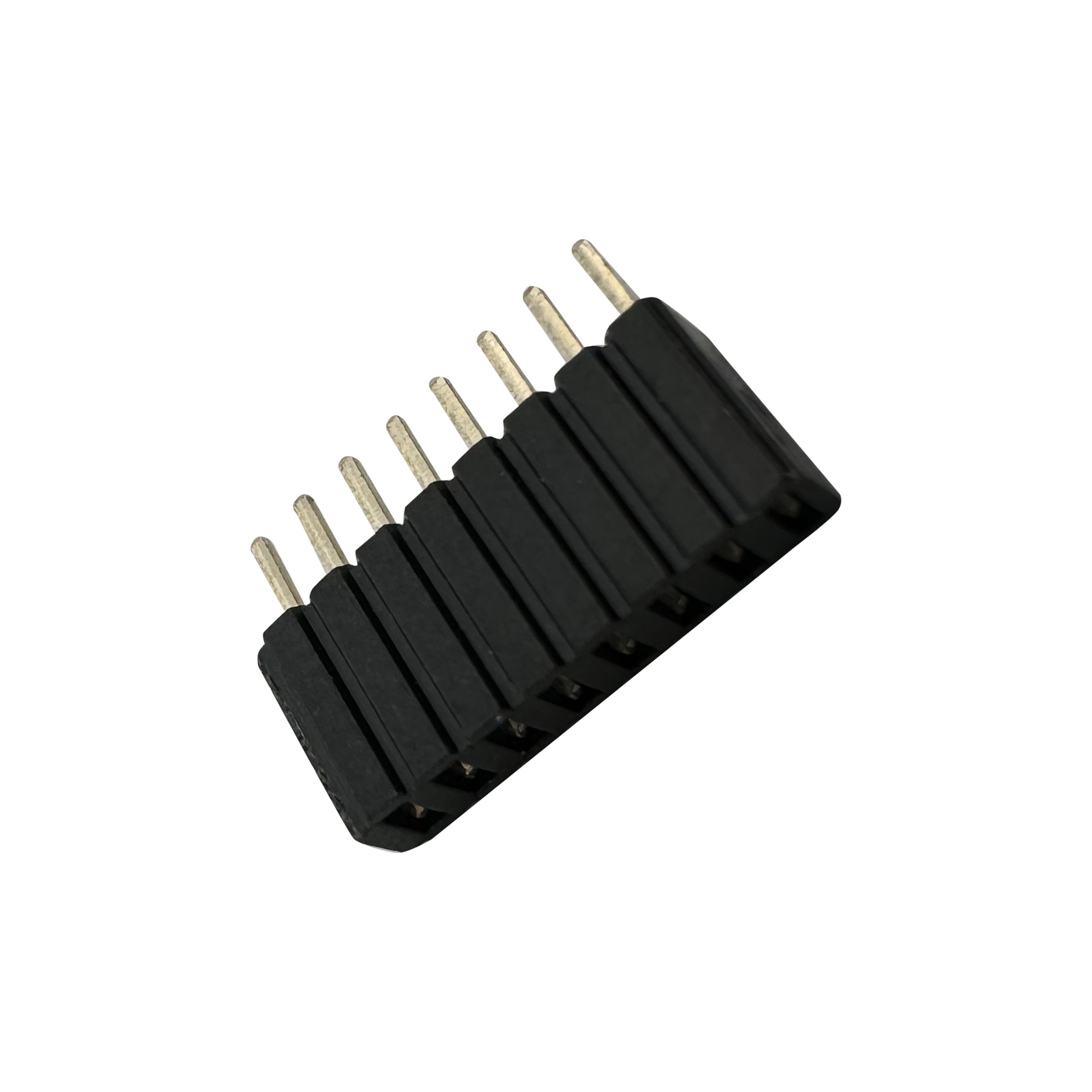

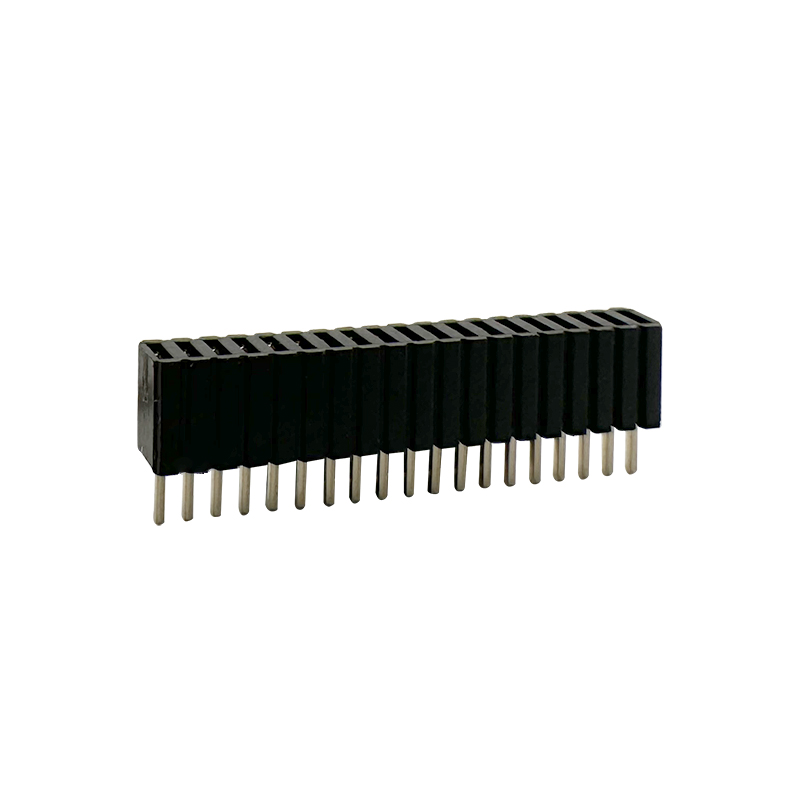

1.27x2.54mm Pitch Female Header Connector,Height: 4.6mm
Order Information
RHTAY08D-4.6-2-XX-S-B
Height: 4.6mm
2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin T-SMT Pin
Material:B=PA6T C=LCP
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
1.27x2.54mm Pitch Female Header Connector Height 4.6mm :RHTAY08D-4.6
