Features
-Pitch:1.27mm (0.05 inches) pitch, indicating the center-to-center distance between adjacent pins.
-Height:4.3mm, which is the overall height of the connector from the base to the top, providing slightly more clearance than the 3.4mm version.
- Number of Positions: Available in various pin counts, often ranging from a few positions up to 50 or more, depending on the specific application requirements.
-Contact Material:Typically made of phosphor bronze or copper alloy, which offers good conductivity and mechanical strength.
Applications
1. IoT Devices
2. LED Lighting
3. Wearable Technology
4. Gaming Consoles
Specifications

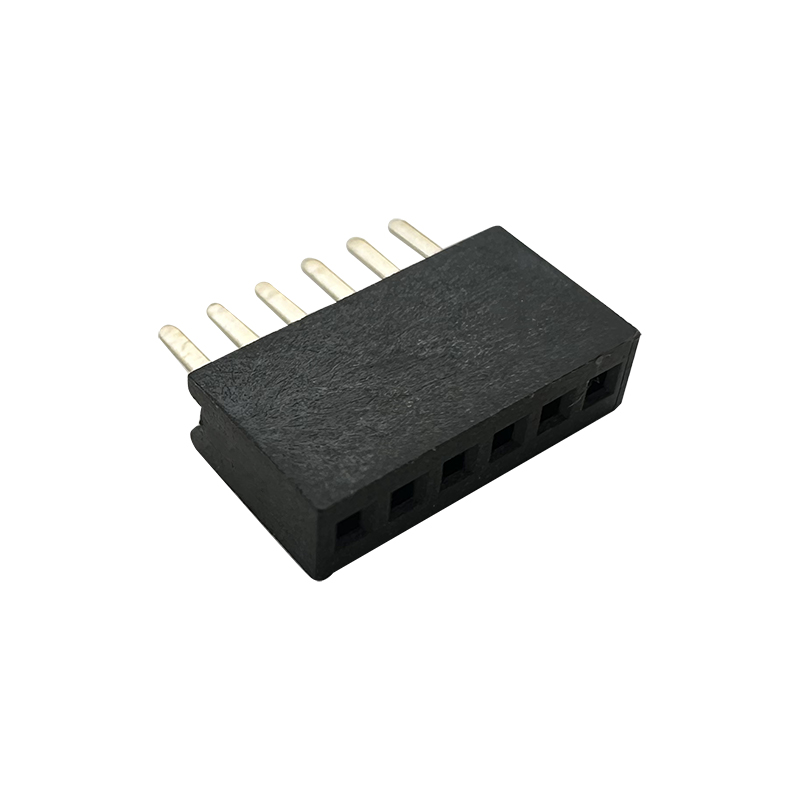

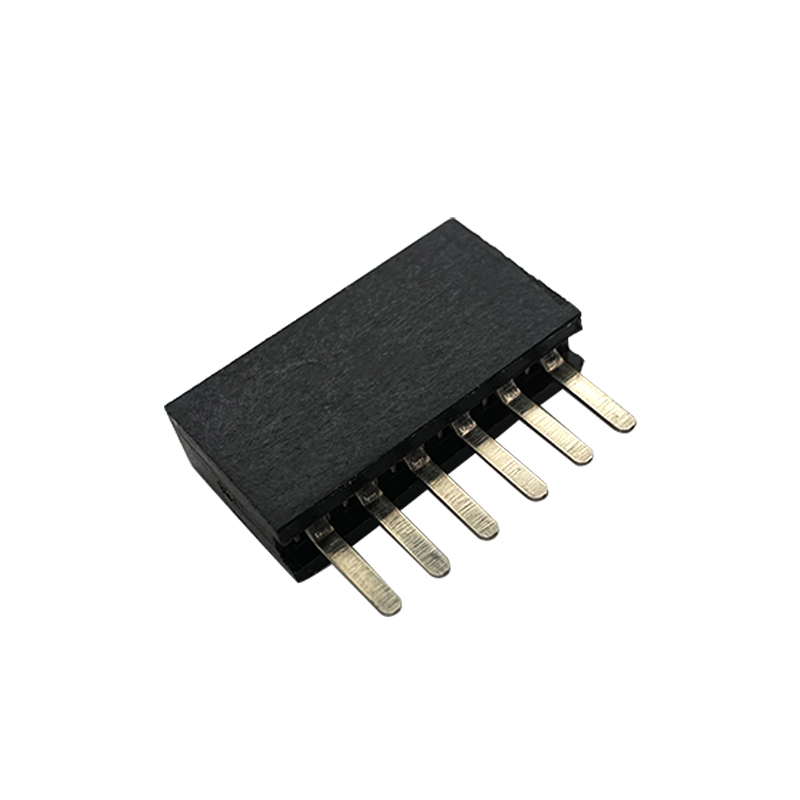

1.27mm Pitch Female Header Connector Height 4.3mm
Order Information
RHTAY08C-4.3-2-XX-T-B
Type: 208C or 208CA
Height: 4.3mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin RM-SMD pin
Material:B=PA6T C=LCP
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
1.27mm Pitch Female Header Connector Height 4.3mm:RHTAY08C-4.3&RHTAY08CA-4.3
