Features
-Mounting Type:Can be through-hole or surface mount, depending on the design and application needs.
-Current Rating:Usually rated for low to moderate current levels, typically around 1A to 3A per pin, but this can vary.
-Operating Temperature Range:Designed to operate within a range of -40°C to +105°C, making them suitable for various environments.
-Mating Cycles: Designed to withstand multiple mating and unmating cycles, typically in the range of 100 to 500 cycles, ensuring durability.
Applications
1. LED Lighting
2. Wearable Technology
3. Gaming Consoles
4. Embedded Systems
Specifications

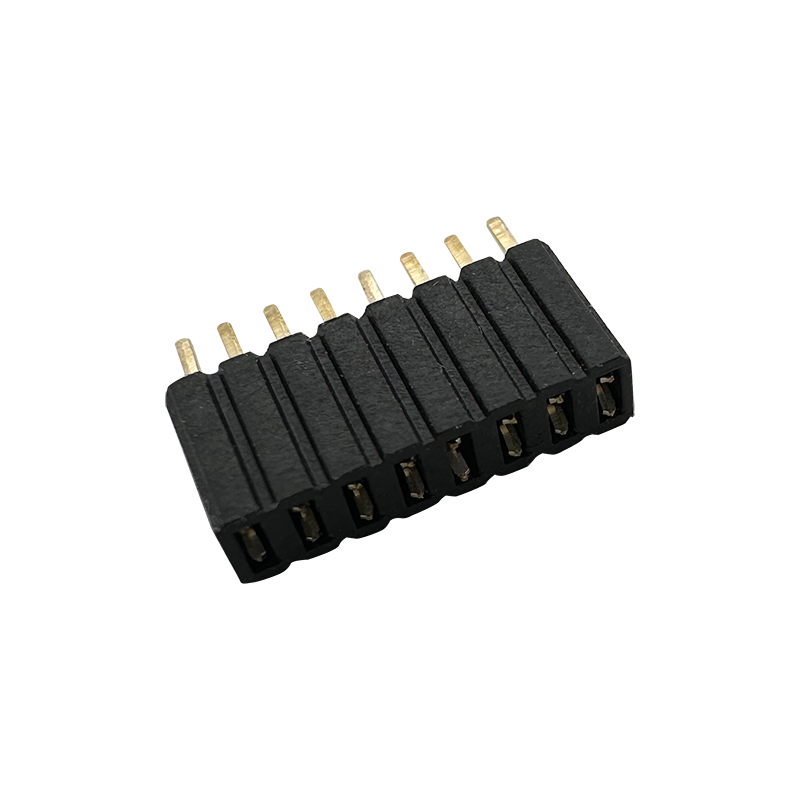

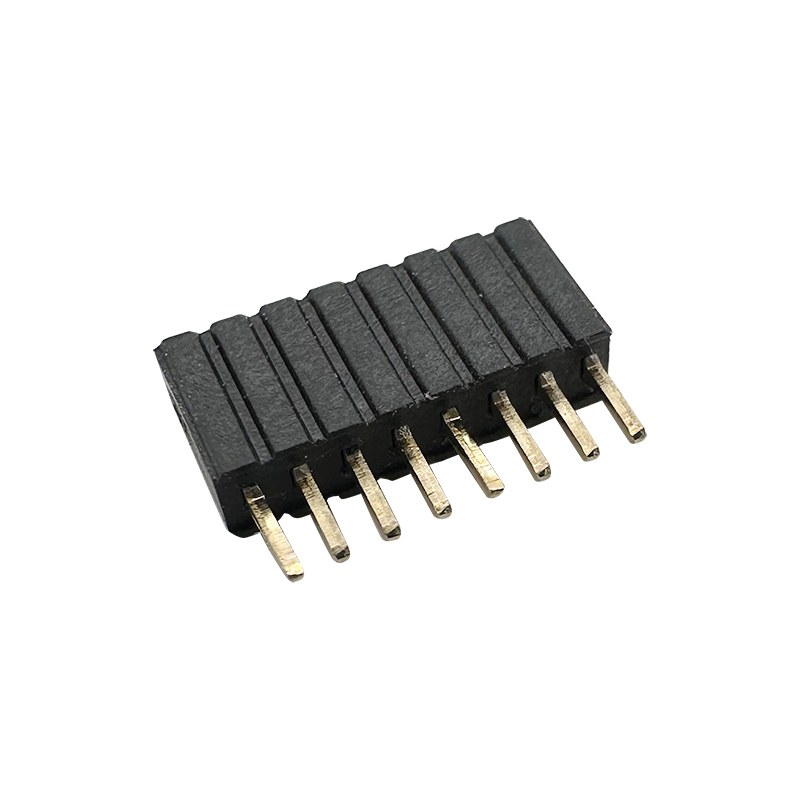

1.27mm Pitch Female Header Connector Height 4.6mm
Order Information
RHTAY08C-4.6-1-XX-S-B
Height: 4.6mm
1-Single layer
XX-Total pin number (No.of 1~50pin)
S-Straight Pin T-SMT Pin
Material:B=PA6T C=LCP
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
1.27mm Pitch Female Header Connector Height 4.6mm:RHTAY08C-4.6
