Features
-Two Rows: This indicates that the connector has two rows of pins or sockets, depending on the type of connector (e.g., VGA, HDMI, USB).
-Gender Change: It facilitates changing the gender of a connector interface, for example, from female to female, male to male, or female to male, depending on the specific adapter configuration.
-Material: Typically made from durable materials such as plastic or metal, ensuring durability and long-lasting performance.
-Compatibility: Designed to be compatible with standard connectors of the same type (e.g., HDMI, VGA, USB), allowing seamless connectivity between devices with different gender requirements.
Applications
1.AV and Home Theater Systems
2.Computer and IT Environments
3.Audio-Visual Installations
4.Gaming and Multimedia:
Specifications

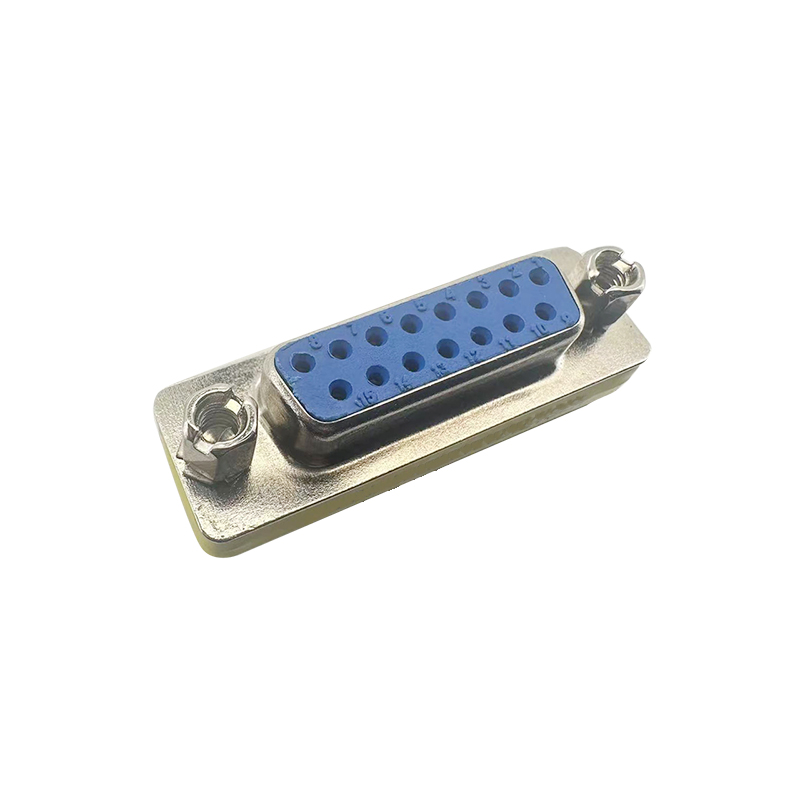

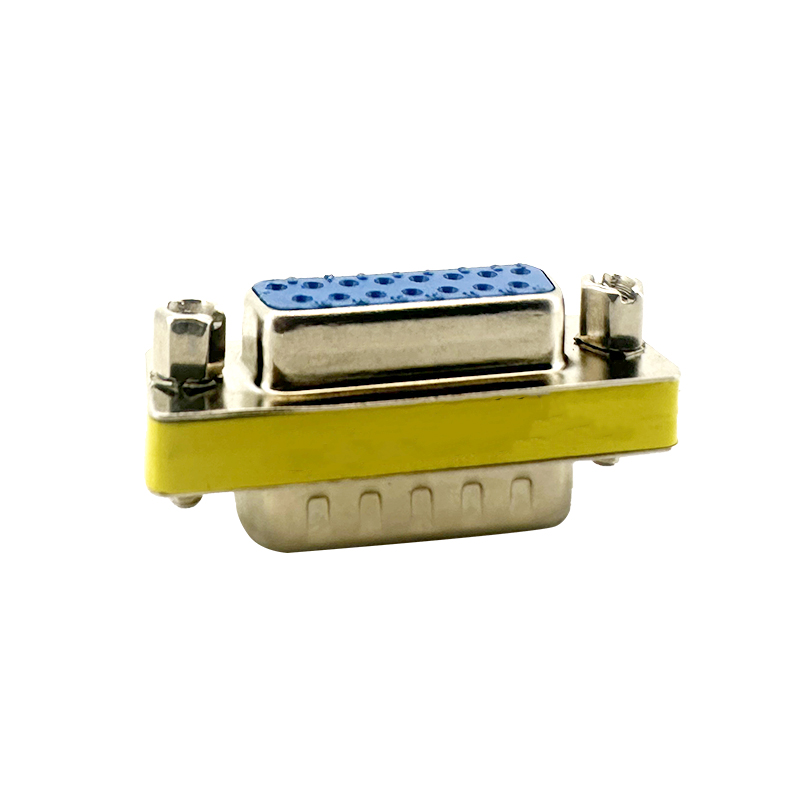

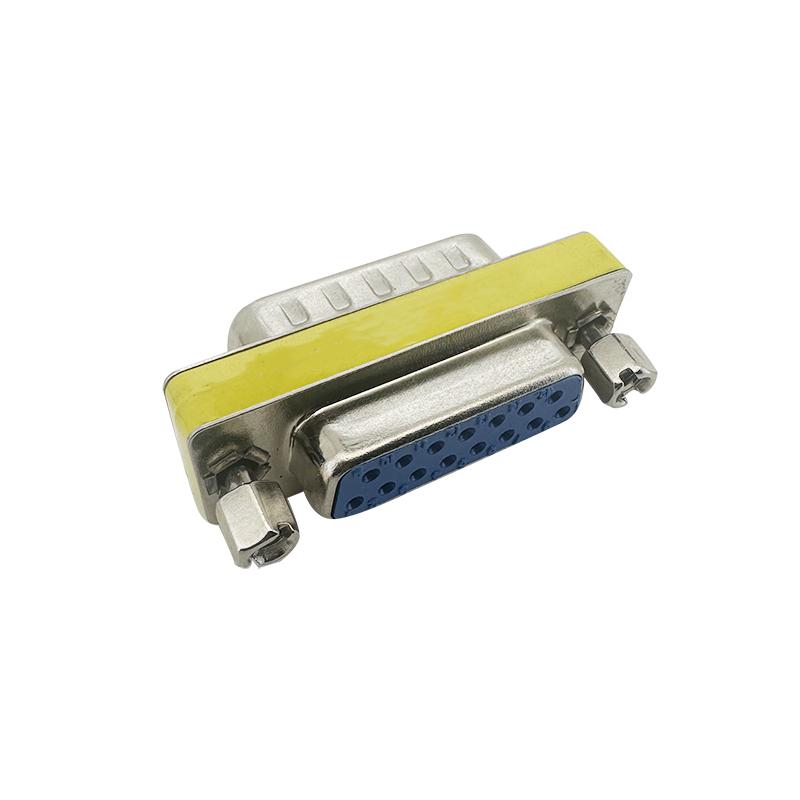

Mini Gender Changer Connector 2 Row
Order Information
RHTAYA85-9M/9M-L
9M/9M-No.of pin (9/9,9/25,15/15,25/25,37/37)
M-Male F-Female
L-Blue B-Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u" Tin Over 50u" min Nickel
Clinch Nut: Brass, 100u" min Nickel Plated
Screwlock: Brass, 100u" min Nickel Plated
Electrical Characteristics:
Current Rating: 3AMP or 5 AMP
Insulator Resistance: 1000M ohms min. at DC 500V
Contact Resistance: 25m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
Technical Documents
Please contact us for more information.
SCSI connectors & Centronic connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SCSI connectors & Centronic connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Mini Gender Changer Connector 2 Row :RHTAYA85
