SCSI connectors & Centronic connectors : RE-C-179-57A

Series Part No:RE-C-179-57A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

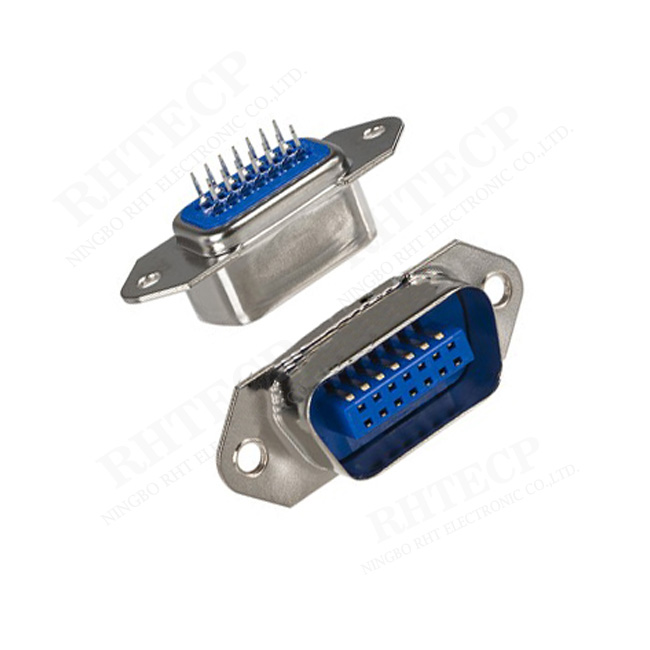

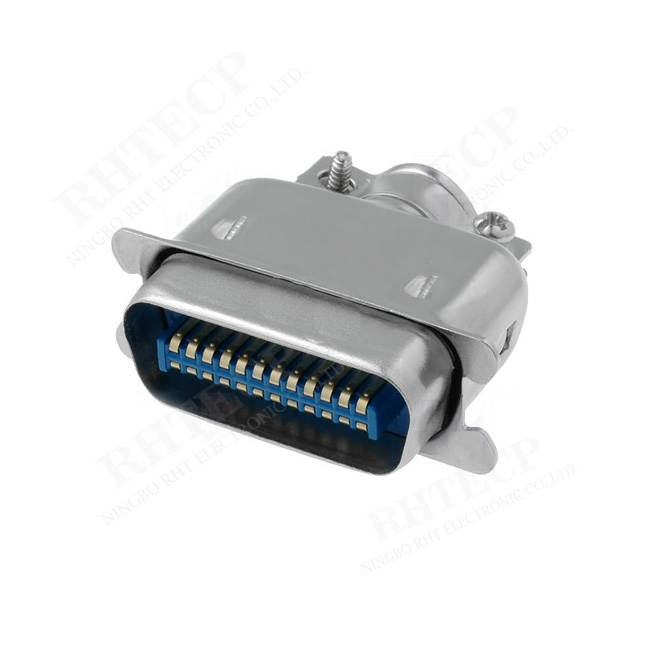

Centronic Connector With Solder Type
Order Information
RE-C-179-57A-XX-M-L
XX-No.of pin (14,20,26,36,50Pin)
M-Male    F-Female
L-Blue      B-Black
1.Material:
    1.1 Insulator : High temperature thermoplastic with g.f,UL94v-0
    1.2 Contact : Copper alloy,t=0.25mm
    1.3 Shell : Spcc,t=0.40mm,50P Front-shell t=0.60mm
2.Specification:
    2.1 Current rating : 1 A Max.
    2.2 Dielectric withstanding voltage : 750 V(ac) for 1 min.
    2.3 Contact resistance : 30 mΩ Max.
    2.4 Insulation resistance : 1000 MΩ Min.
    2.5 Total mating force : 9.0 Kgf Max.
    2.6 Total unmating force : 5.0 Kgf Min.
    2.7 Temperature range : -55°C~85°C

X

X
Enlarge

Quick View

SCSI connectors & Centronic connectors : RE-C-180-57B

Series Part No:RE-C-180-57B

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

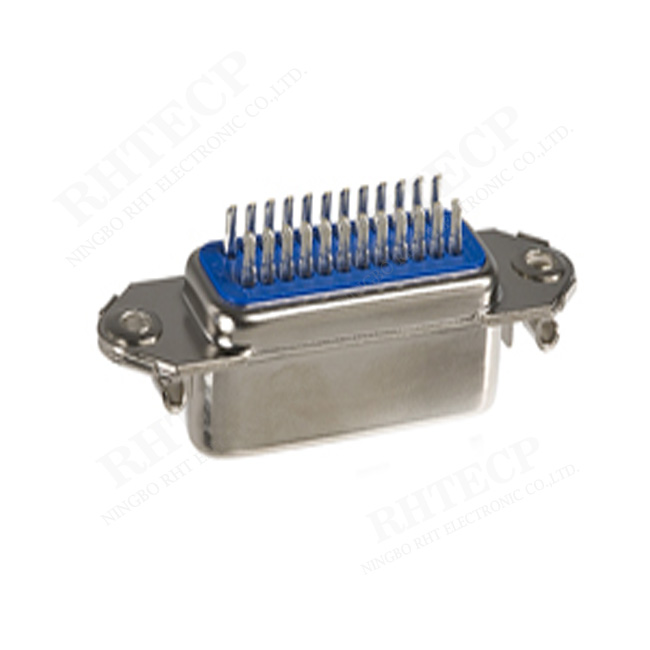

Centronic Connector With Solder Type
Order Information
RE-C-180-57B-XX-M-L
XX-No.of pin (14,20,26,36,50Pin)
M-Male    F-Female
L-Blue      B-Black
1. MATERIALS ANDFINISH
1.1 Insulator: High temperature thermoplastic with g.f, UL 94V-0
1.2 Contacts: Copper Alloy, t=0.25mm
1.3 Shell: Spcc, t=0.40mm, 50P Front-shell, t=0.60mm
2. Specifications
2.1 Current Rating:1A MAX.
2.2 Dielectric Withstanding
2.2 Voltage:750 V (ac) For 1 Min
2.3 Contact Resistance:30mΩ MAX.
2.4 Insulation resistance: 1000mΩ Max
2.5 Total mating force 9.0 Kgf Max
2.6 Total unmating force: 5.0 kgf Min
2.7 Temperature range: -40℃ ~ 85℃

X

X
Enlarge

Quick View

SCSI connectors & Centronic connectors : RE-C-181-57B

Series Part No:RE-C-181-57B

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Centronic Connector With PCB Mounting Type
Order Information
RE-C-181-57B-XX-M-L
XX-No.of pin (14,20,26,36,50Pin)
M-Male    F-Female
L-Blue      B-Black
1. MATERIALS ANDFINISH
1.1 Insulator: High temperature thermoplastic with g.f, UL 94V-0
1.2 Contacts: Copper Alloy, t=0.25mm
1.3 Shell: Spcc, t=0.40mm, 50P Front-shell, t=0.60mm
2. Specifications
2.1 Current Rating:1A MAX.
2.2 Dielectric Withstanding
        Voltage:750 V (ac) For 1 Min
2.3 Contact Resistance:30mΩ MAX.
2.4 Insulation resistance: 1000mΩ Max
2.5 Total mating force 9.0 Kgf Max
2.6 Total unmating force: 5.0 kgf Min
2.7 Temperature range: -40℃ ~ 85℃

X

X
Enlarge

Quick View

SCSI connectors & Centronic connectors : RE-C-182-57A

Series Part No:RE-C-182-57A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

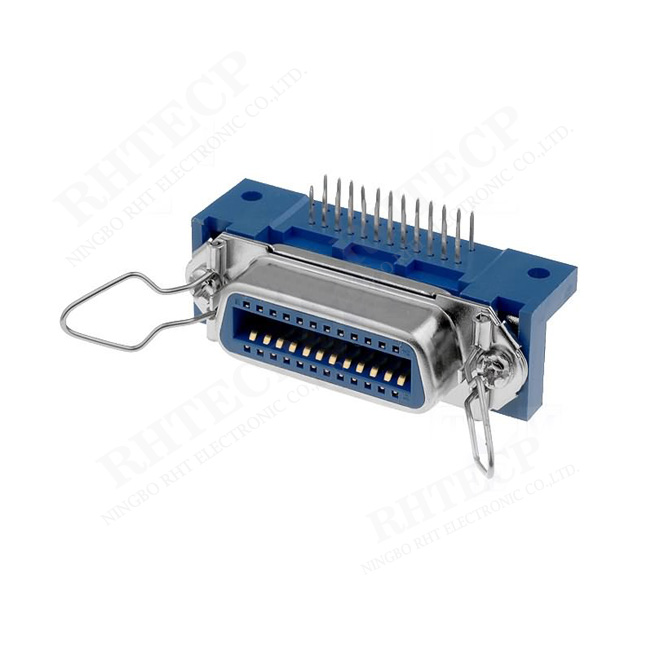

Centronic Connector With PCB Dip 90 Type
Order Information
RE-C-182-57A-XX-M-L
XX-No.of pin
M-Male F-Female
L-Blue B-Black
Material & Finish
Shell: Steel Zinc plated, Tin plated or Nickel plated steel
Pin Contact: Phosphor bronze or brass gold plated
Insulator: PBT & Glass-fibre reinforced UL-94-Vo
Number Of Contact: 14, 24, 36, 50
Current Rating: 5 Amp
Dielectric Strength:1000V for one minute
Insulator Resistance: 1000MΩ Min. (at 500V DC)
Temperature: -55℃ to 105℃

X

X
Enlarge

Quick View

SCSI connectors & Centronic connectors : RE-C-183-57A

Series Part No:RE-C-183-57A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

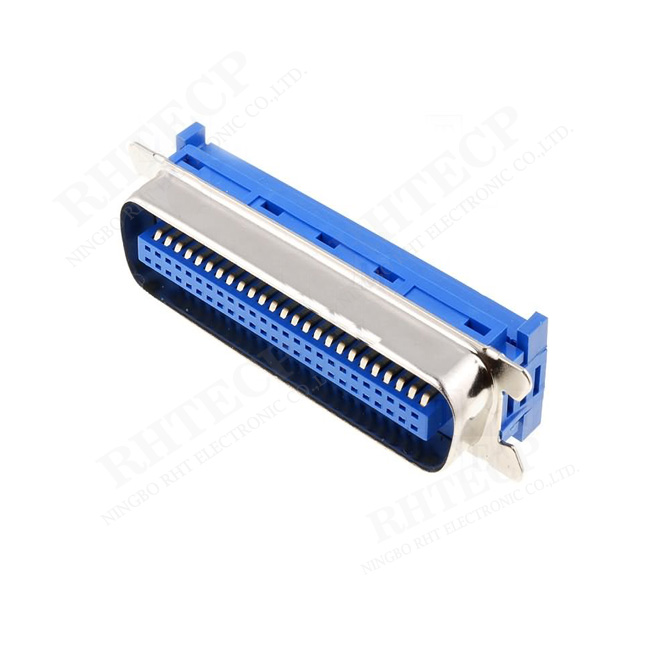

Centronic Connector With IDC Type
Order Information
RE-C-183-57A-XX-M-L
XX-No.of pin (14,20,26,36,50Pin)
M-Male    F-Female
L-Blue      B-Black
1. MATERIALS ANDFINISH
1.1 Insulator: High temperature thermoplastic with g.f, UL 94V-0
1.2 Contacts: Copper Alloy, t=0.25mm
1.3 Shell: Spcc, t=0.40mm, 50P Front-shell, t=0.60mm
2. Specifications
2.1 Current Rating:1A MAX.
2.2 Dielectric Withstanding
        Voltage:750 V (ac) For 1 Min
2.3 Contact Resistance:30mΩ MAX.
2.4 Insulation resistance: 1000mΩ Max
2.5 Total mating force 9.0 Kgf Max
2.6 Total unmating force: 5.0 kgf Min
2.7 Temperature range: -40℃ ~ 85℃

X

X
Enlarge

Quick View

SCSI connectors & Centronic connectors : RE-C-SCSI-01

Series Part No:RE-C-183-57A

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

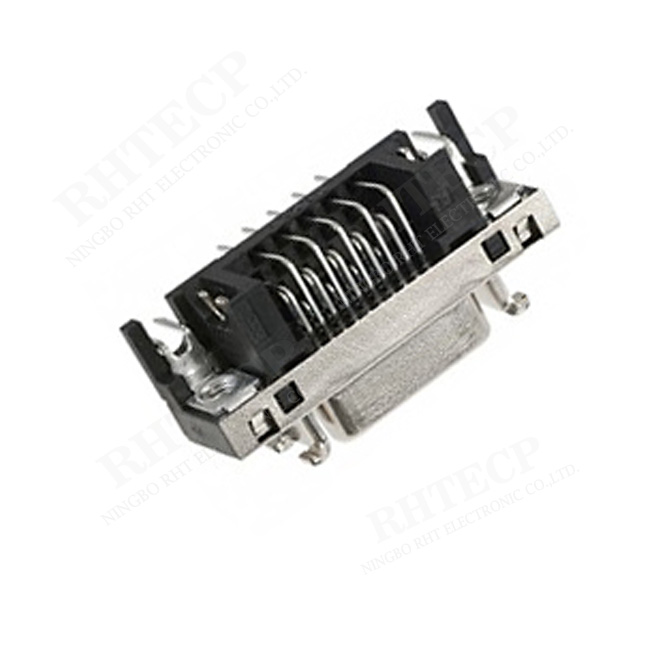

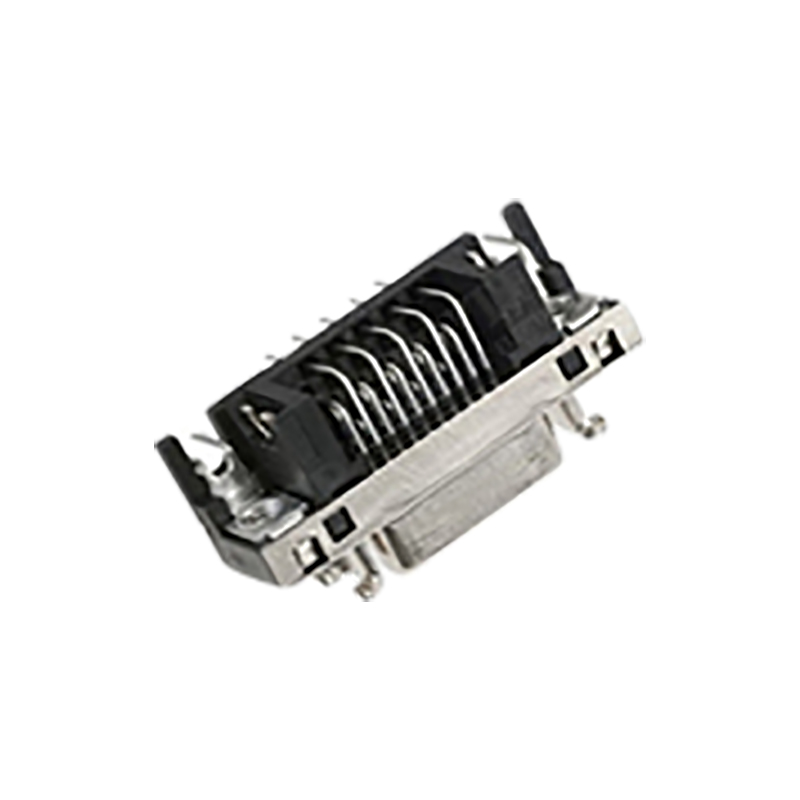

SCSI Connector Female PCB Mount Type
Order Information
RE-C-SCSI-01-XX-F-B-W
XX-No.of pin (14,20,26,36,50,68P)
F-Female
B-Black W-White
W-With Latch block W/0-Without Latch block
Electrical Characteristics:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Current Rating: 1AMP
Insulator Resistance: 500M ohms min. at 500VDC
Contact Resistance: 35m ohms max
Operating Temperature: -55ºC~+105ºC

X

X
Enlarge

Quick View

SCSI connectors & Centronic connectors : RE-C-SCSI-02

Series Part No:RE-C-SCSI-02

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

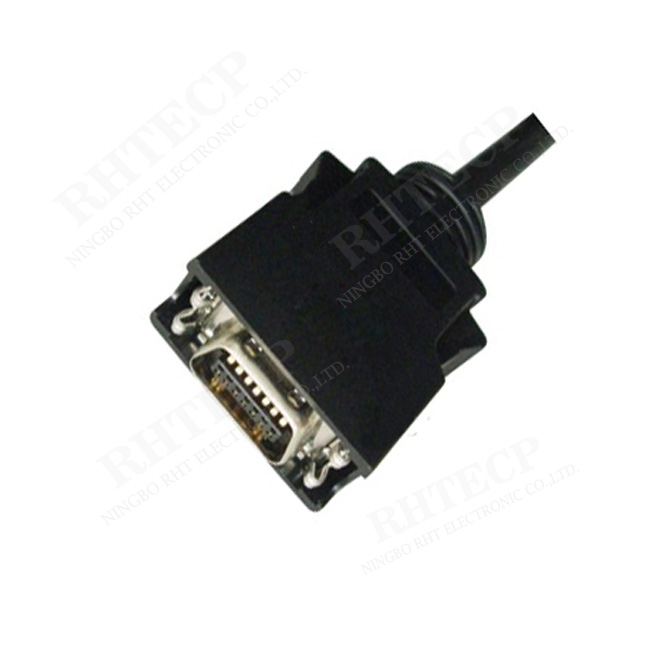

SCSI Connector IDC Type
Order Information
RE-C-SCSI-02-XX-M-B
XX-No.of pin (14,20,26,36,50P)
M-Male
B-Black E-Beige
26P SIZE:
36P SIZE:
Electrical Characteristics:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Current Rating: 1AMP
Insulator Resistance: 500M ohms min. at 250VAC For 1 minute
Contact Resistance: 35m ohms max
Operating Temperature: -35ºC~+85ºC

X

X
Enlarge

Quick View

SCSI connectors & Centronic connectors : RE-C-SCSI-03

Series Part No:RE-C-SCSI-03

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

SCSI Connector Solder Type
Order Information
RE-C-SCSI-03-XX-M-B
XX-No.of pin (14,20,26,36,50P)
M-Male
B-Black E-Beige
Electrical Characteristics:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Current Rating: 1AMP
Insulator Resistance: 500M ohms min. at 250VAC For 1 minute
Contact Resistance: 35m ohms max
Operating Temperature: -35ºC~+85ºC

X

X
