DIN41612 connectors

DIN41612 Connectors, Industrial Connectors, Power Connectors, High-Voltage Connectors, Modular Connectors, DIN Connectors, Electrical Connectors, Connector Types, Reliable Signal Transmission, DIN41612 Connector Applications, Power Distribution, Telecommunications, Data Communication, Connector Compatibility, Durable Connectors, High-Performance Connectors, Connector Installation, DIN41612 Connector Specifications, Custom DIN41612 Connectors, Precision Connectors, Connector Manufacturers.

Enlarge

Quick View

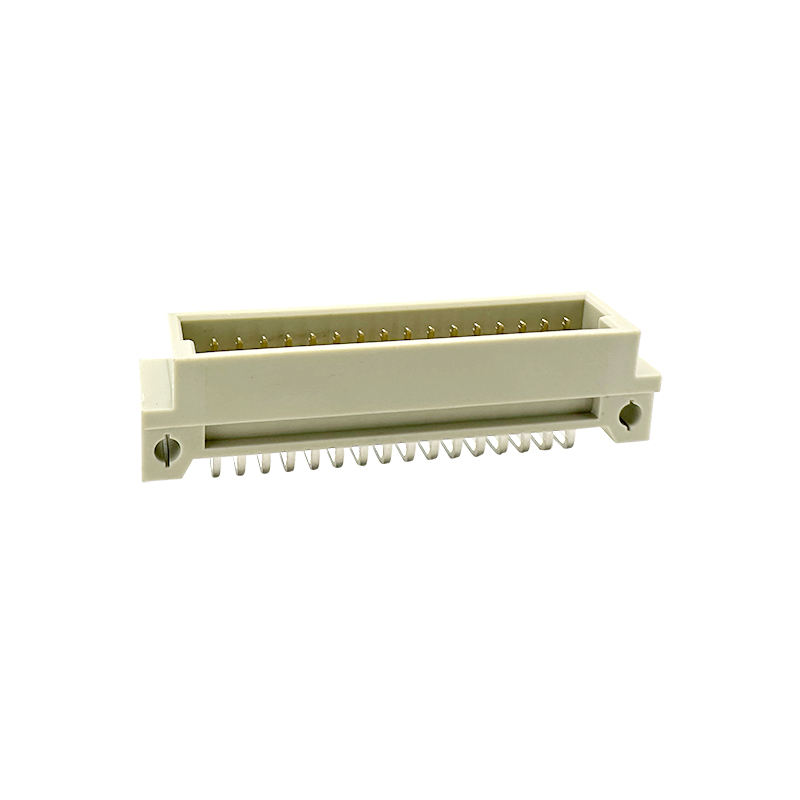

DIN41612 Connector : RHTAY2X

Series Part No:RHTAY2X

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Gold-plated contacts – for high-performance signal transmission

-Mounting Type: Through-hole (THT) or press-fit mounting

-Connector Type: Male (Plug) and Female (Receptacle)

-Durability: 500+ mating cycles, ensuring long-term usability

Applications

1.Industrial Automation & Control Systems

2.Telecommunications & Networking

3.Medical & Laboratory Equipment

4.Military & Aerospace Applications

Specifications

DIN41612 Connector With 2x16 Pin B Type

Order Information

RHTAY2X-2232-MS

D2X-2X16Pin Two row Short Type

Part Number: 2232 / 2116 / 2216 / 2108

M-Male F-Female

S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin

Material:

Insulator: Glass-filled thermoplastic PBT UL94V-0

Contacts: Male-Brass / Female-Phosphor Bronze

Plating: full gold or selected gold in mating area.

Electrical:

Contact Resistance: 30 mΩ Max. Insulator

Insulation Resistance: 1000 MΩ Min. at 500 VDC

Withstand Voltage: 1000 VAC for 1 minute

Current Rating: 2 AMP

Volatge Rating: 250 VAC

Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

DIN41612 Connector (B Type 2x22Pin) : RHTAY2Y

Series Part No:RHTAY2Y

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Standard:Complies with DIN 41612 and IEC 60603-2, widely used in modular backplane systems.

-Pin Configuration:Two rows (a & c), 22 contacts each, total 44 pins for reliable connections.
-Contact Pitch:Standard 2.54 mm (0.1 inch) spacing suitable for most PCBs.
-Mounting Style:Available in through-hole (THT) and press-fit versions for flexible assembly.

Applications

1.Data Acquisition and Processing Modules
2.Modular Electronic Systems and Plug-in Devices
3.Medical Device Interfaces
4.Plug-and-Play Control System Connections

Specifications

DIN41612 Connector With 2x22 Pin B Type
Order Information
RHTAY2Y-2244-MS
D2Y-2x22Pin Two row Short Type
Part Number: 2244 / 2222 / 2122/ 2111
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

DIN41612 Connector (B Type 2x24Pin) : RHTAY2Z

Series Part No:RHTAY2Z

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standard Compliance: Designed in accordance with DIN 41612 and IEC 60603-2 international standards for compatibility and reliability
-Configuration: B Type connector with 2 rows × 24 pins, offering 48 high-performance contacts
-High-Density & Compact: Supports dense signal routing in limited PCB space, ideal for modular system designs
-Versatile Termination Options: Supports press-fit, solder, or wire wrap terminations to suit different assembly processes

Applications

1.Industrial Automation Systems
2.Telecommunication Equipment
3.Backplane and Rack Systems
4.Test and Measurement Instruments

Specifications

DIN41612 Connector With 2x24 Pin B ype
Order Information
RHTAY2Z-2244-MS
D2Z-2x24Pin Two row Short Type
Part Number: 2248 / 2224 / 2124/ 2112
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Maerial:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

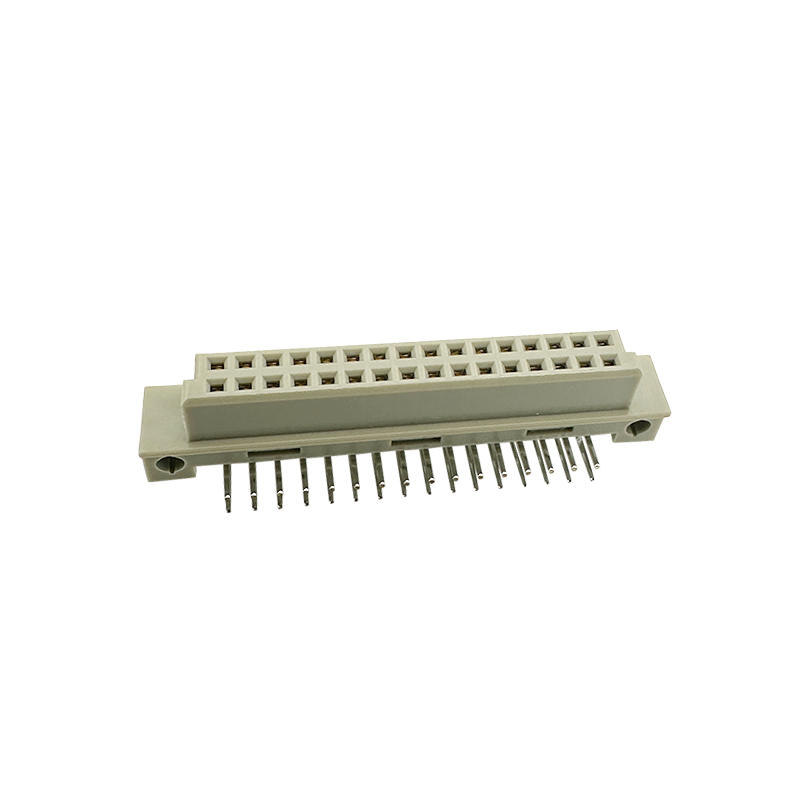

DIN41612 Connector (B Type 2x32Pin):RHTAY2

Series Part No:RHTAY2

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Operating Temperature: -55°C to +125°C, suitable for extreme environments

-Shock & Vibration Resistance: Ensures stable connections in rugged applications

-Humidity Resistance: Designed for industrial and outdoor environments

-RoHS & REACH Compliance: Available in environmentally friendly versions

Applications

1.Industrial Automation & Control Systems

2.Telecommunications & Networking

3.Medical & Laboratory Equipment

4.Military & Aerospace Applications

Specifications

DIN41612 Connector With 2x32 Pin B Type

Order Information

RHTAY2-2264-MS

D2-2X32PinTwo row Long Type

Part Number: 2264 / 2132 / 2232 / 2116

M-Male F-Female

S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin

Material:

Insulator: Glass-filled thermoplastic PBT UL94V-0

Contacts: Male-Brass / Female-Phosphor Bronze

Plating: full gold or selected gold in mating area.

Electrical:

Contact Resistance: 30 mΩ Max. Insulator

Insulation Resistance: 1000 MΩ Min. at 500 VDC

Withstand Voltage: 1000 VAC for 1 minute

Current Rating: 2 AMP

Volatge Rating: 250 VAC

Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

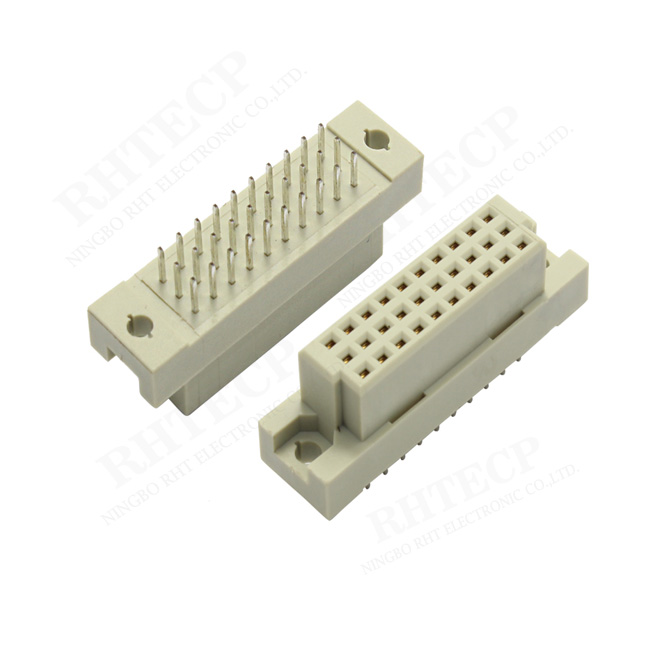

DIN41612 Connector (C Type 3x10Pin) : RHTAY3Q

Series Part No:RHTAY3Q

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durability: Rated for more than 500 mating cycles ensuring long-term reliability
-Insertion & Withdrawal Force: Designed for smooth yet secure connections to prevent accidental disconnection
-Vibration & Shock Resistance: Suitable for harsh industrial and transportation environments
-Mechanical Compatibility: Compliant with IEC 60603-2 standard dimensions; perfect for high-density backplane and Eurocard systems such as VMEbus and CompactPCI

Applications

1.Military and Aerospace Electronics
2.Data Processing Systems
3.Power Supply Units and Controllers
4.Embedded Computing Boards

Specifications

DIN41612 Connector With 3x10 Pin C Type
Order Information
RHTAY3Q-3330-MS
D3Q-3X10Pin 3 row Short Type
Part Number: 3330 / 3315 / 3220 / 3210/3110
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

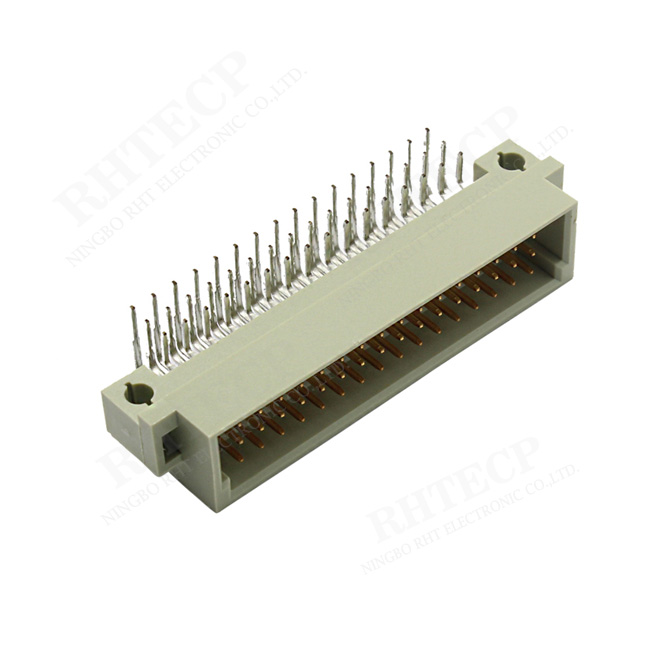

DIN41612 connector (C Type 3x16Pin) : RHTAY3X

Series Part No:RHTAY3X

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standardized 3-row (3x16) configuration：Offers 48 contact positions, compliant with DIN 41612 and IEC 60603-2 standards for modular backplane systems.
-Stable and high-reliability electrical performance：Rated for up to 2A per contact and 500V RMS, with low contact resistance and high insulation resistance (≥10⁹ Ω).
-Multiple termination options available：Supports through-hole solder and press-fit types, ideal for different PCB assembly processes and mechanical needs.
-Durable construction for long service life：Glass-filled polyester (UL94V-0) housing with gold-plated copper alloy contacts, enabling up to 500 mating cycles.

Applications

1.Industrial automation control systems
2.Telecom and data communication equipment
3.Railway and transportation electronics
4.Medical instrumentation and devices

Specifications

DIN41612 Connector With 3x16 Pin C Type
Order Information:
RHTAY3X-3348-MS
D3X-3X16Pin 3 row Short Type
Part Number: 3348 / 3232 / 3324 / 3216
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

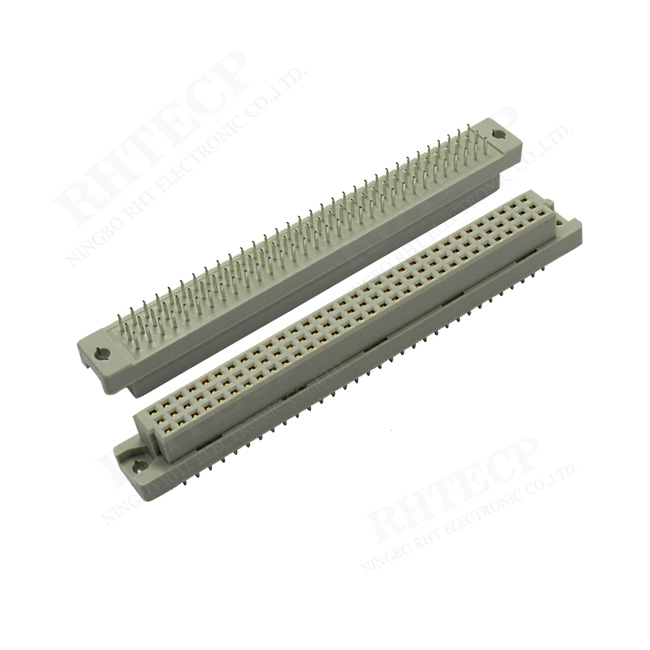

DIN41612 Connector (C TYPE 3x32Pin) :RHTAY3

Series Part No:RHTAY3

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Standardized 3-row, 48-pin layout (3x16) compliant with DIN 41612 and IEC 60603-2 standards for reliable backplane connections.
-Rated for up to 2A per contact and 500V RMS voltage, ensuring stable signal and power transmission.
-Available in both through-hole solder and press-fit termination styles to suit various PCB assembly methods.
-Constructed with flame-retardant glass-filled polyester housing (UL94V-0) for enhanced durability.

Applications

1.Railway and transportation electronics
2.Medical instrumentation and devices
3.Test and measurement equipment
4.Military and aerospace

Specifications

DIN41612 Connector With 3x32 Pin C Typ
Order Information
RHTAY3-3396-MS
3-3X32Pin 3 row Long Type
Part Number: 3396 / 3264 / 3348 / 3232
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

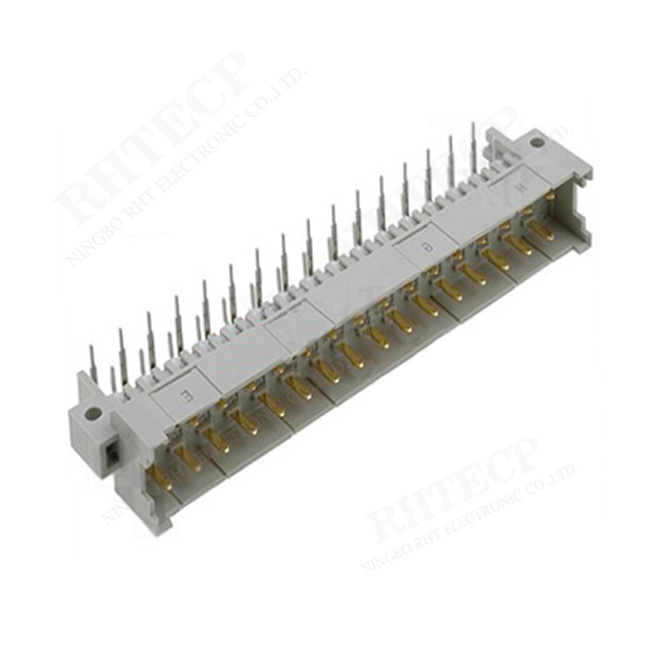

DIN41612 connector F48 Type : RHTAY48

Series Part No:RHTAY48

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Standard:Complies with the DIN 41612 standard, widely used in rack-based and modular electronic systems, especially in telecommunications and industrial automation.
-Number of Contacts:The "F48" designation indicates it has 48 contacts arranged in a specific layout.
-Contact Arrangement:Contacts are arranged in 3 rows (rows a, b, and c) with 16 contacts per row, making a total of 48 pins.

-Current Rating:Generally rated for currents around 2-4 amps per contact (depending on manufacturer and variant).

Applications:

1. Industrial automation systems
2.Telecommunications equipment
3.Rack-mounted computer systems
4.Data acquisition systems

Specifications

DIN41612 Connector With F Type
Order Information:
RHTAY48-3348-MR
48-3X16Pin 3 row Short Type
Part Number: 3348 / 3232A/ 3232B / 3347+1 / 3231+1
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

1 2 next page
