DIN41612 Connector : RE-C-D2

Series Part No: RE-C-D2

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

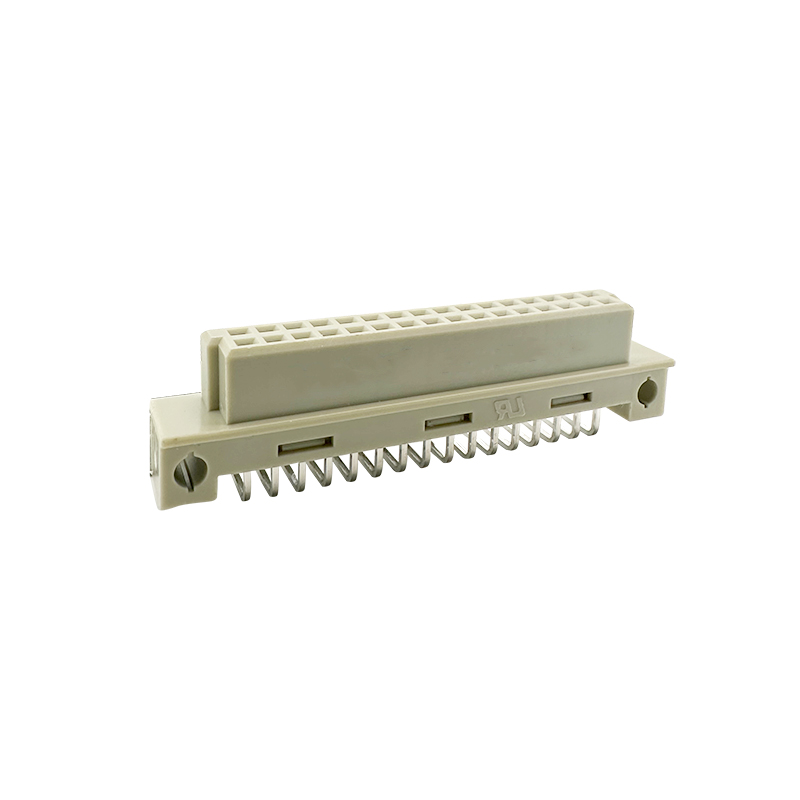

DIN41612 Connector With 2x32 Pin B Type
Order Information
RE-C-D2-2264-MS
D2-2X32PinTwo row Long Type
Part Number: 2264 / 2132 / 2232 / 2116
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC
