Features
-Gold-plated contacts – for high-performance signal transmission
-Mounting Type: Through-hole (THT) or press-fit mounting
-Connector Type: Male (Plug) and Female (Receptacle)
-Durability: 500+ mating cycles, ensuring long-term usability
Applications
1.Industrial Automation & Control Systems
2.Telecommunications & Networking
3.Medical & Laboratory Equipment
4.Military & Aerospace Applications
Specifications

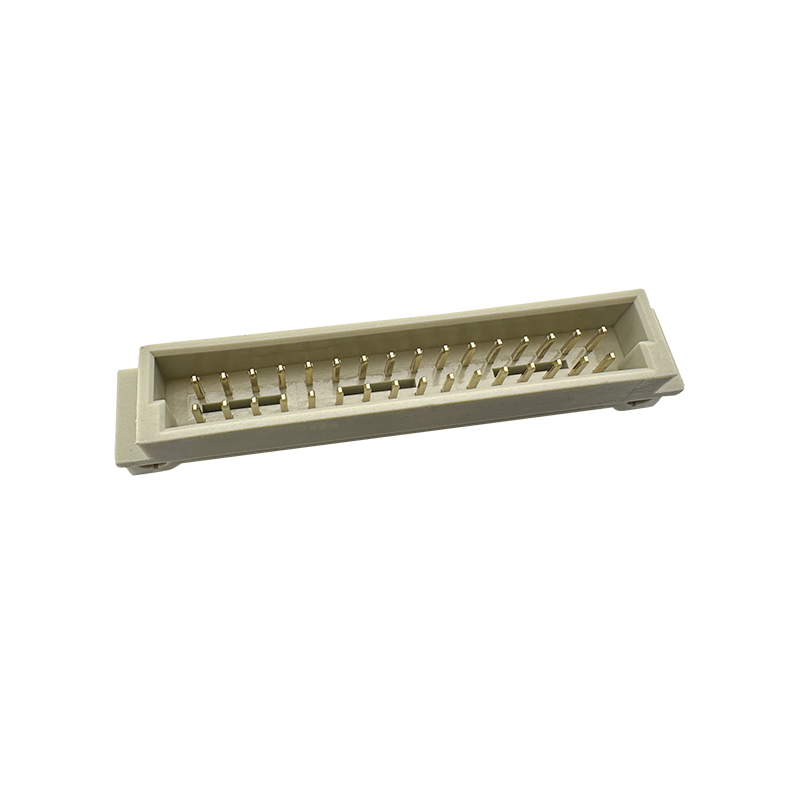

DIN41612 Connector With 2x16 Pin B Type
Order Information
RHTAY2X-2232-MS
D2X-2X16Pin Two row Short Type
Part Number: 2232 / 2116 / 2216 / 2108
M-Male F-Female
S-4.0mm Straight pin / W1-13mm Straight pin / R-Right pin
Material:
Insulator: Glass-filled thermoplastic PBT UL94V-0
Contacts: Male-Brass / Female-Phosphor Bronze
Plating: full gold or selected gold in mating area.
Electrical:
Contact Resistance: 30 mΩ Max. Insulator
Insulation Resistance: 1000 MΩ Min. at 500 VDC
Withstand Voltage: 1000 VAC for 1 minute
Current Rating: 2 AMP
Volatge Rating: 250 VAC
Operating Temperature: -55ºC~+105ºC
Technical Documents
Please contact us for more information.
DIN41612 Connector is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of DIN41612 Connector .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
DIN41612 Connector : RHTAY2X
