Features
-Design: Engineered for reliability and durability, featuring a robust housing and contacts that withstand frequent insertion and removal cycles.
-Compatibility: Compliant with Micro USB standards, ensuring compatibility with devices designed to use Micro USB connectors.
-Power and Data Transfer: Supports both power charging and data transfer functionalities, providing a versatile connection for various devices.
-Mechanical Specifications: Includes dimensions and mounting details optimized for surface mounting on PCBs, facilitating efficient assembly in manufacturing.
Applications
1.GPS Navigation Devices
2.Embedded Systems and IoT Devices
3.Consumer Electronics
4.Medical Devices
Specifications
Material
Housing:Hing Temperature
Thermoplastic with g.f,
UL94V-0,Black/White.
Contact:Copper Alloy,t=0.20mm.
Shell:Copper Alloy,t=0.25mm.
Electrical:
Current Rating:1A Max.
Dielectric Withstanding Voltage:
100 V AC for 1 min.
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Total Mating Force:3.57 kgf Max.
Total Unmating Force:1.0 kgf Min.
Temperature Range: -30°C Up To +80°C
Technical Documents
Please contact us for more information.
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

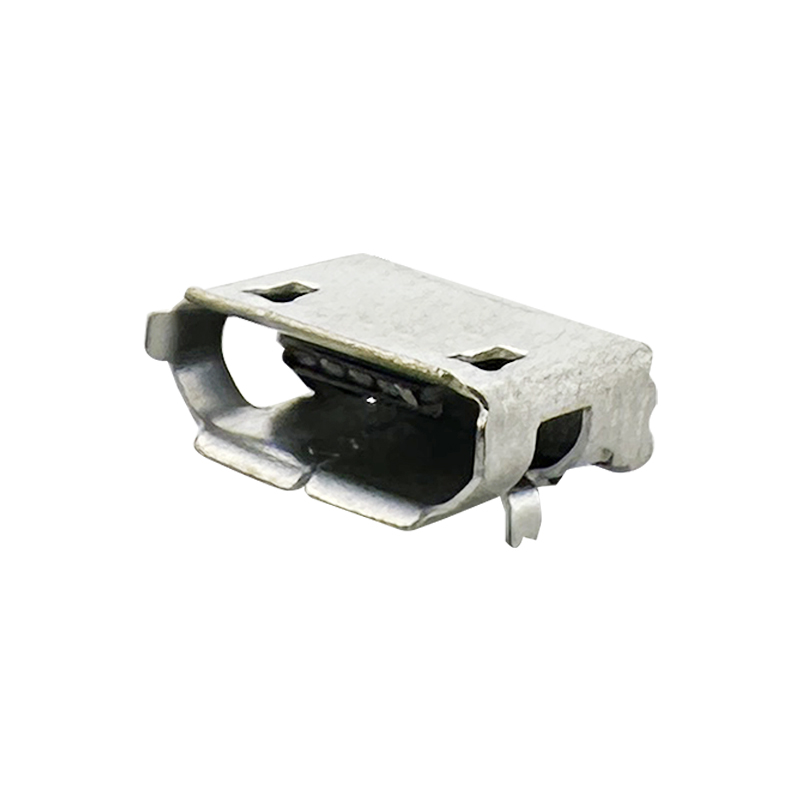

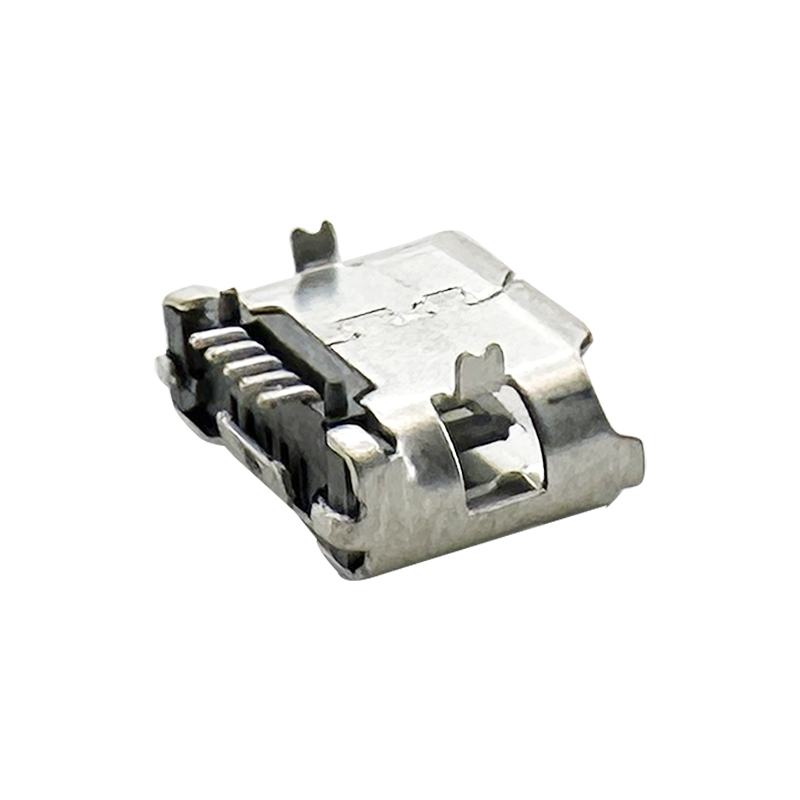

CONN RCPT 5POS MICRO USB SMD :RHTAY37
