Features
-Power Delivery: Provides power delivery capabilities, typically 5V DC power, and adheres to USB power standards for charging and powering devices.
-Shielding and EMI Protection: Many solder-type USB connectors include features such as shielding to minimize electromagnetic interference (EMI) and ensure signal integrity.
-Compact Size: Offers a compact form factor, suitable for applications where space on the PCB is limited.
-Versatility in Applications: Used across various industries including consumer electronics, industrial equipment, automotive systems, medical devices, and more, where reliable data transmission and power supply are crucial.
Applications
1.Automotive Electronics
2.Medical Devices
3.Telecommunications
4.Military and Aerospace
Specifications
Material：
Isulation:PBT,UL94V-0.
Contact:Brass (T=0.18mm).
Shell:SPCC (T=0.30mm).
Electrical:
Contact Current Rating:
1.8Amperes for contacts1&5,
0.5A for contacts 2 3&4.
Dielectric Withstanding Voltage:
AC 100V r.m.s.
Insulation Resistance:100MΩ Min.
Contact Resistance:30mΩ Max.
Connector Insertion Force:35N Max.
Connector Separation Force:8N Min.
Operating Temperature:-55°C TO +85°C.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

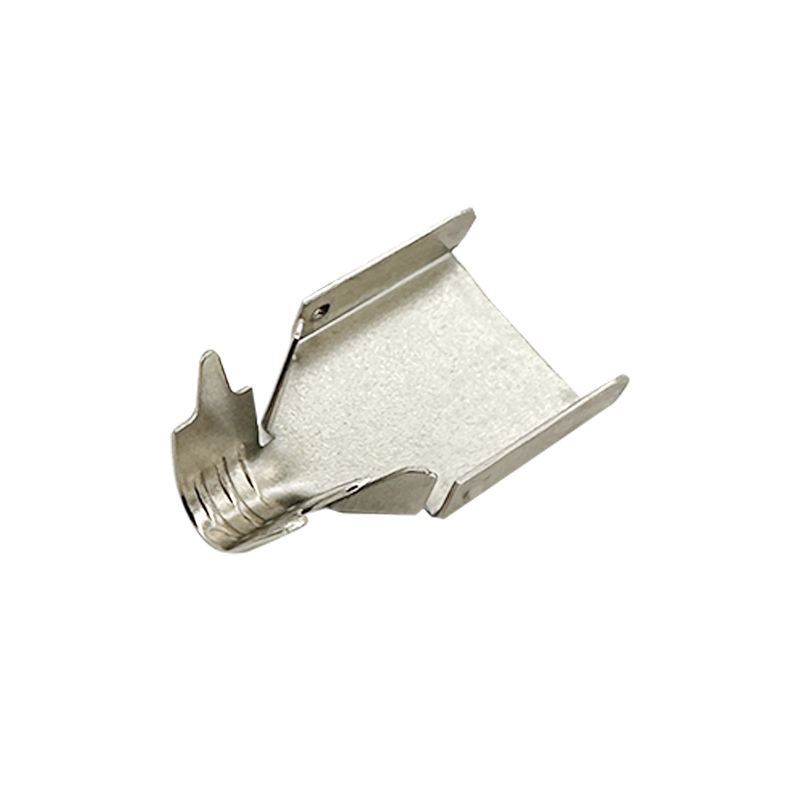

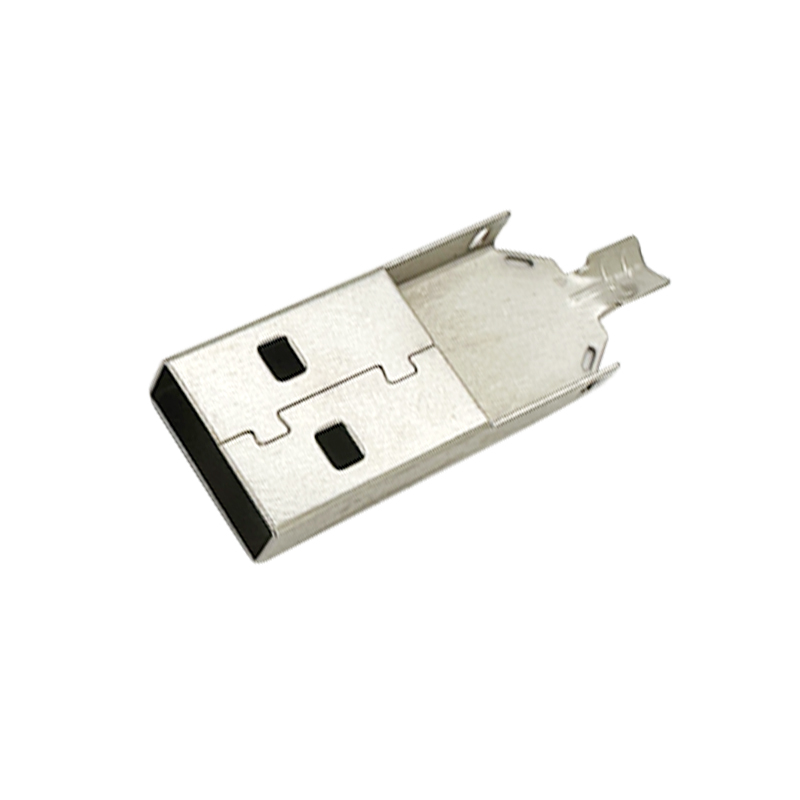

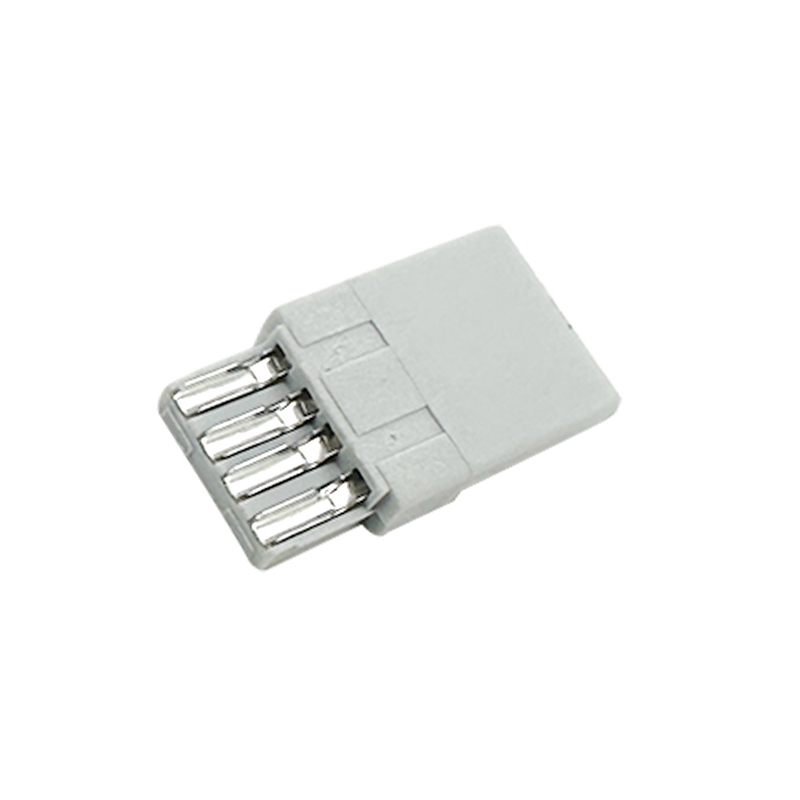

Solder A Male Plug USB Connector :RHTAY82&RHTAY849
