Features
-USB 3.1 Type-C Compatibility: Designed to comply with USB 3.1 specifications, providing high-speed data transfer (up to 10 Gbps) and power delivery (up to 100W).
-6 Pins (6P): The connector has 6 pins, which are designed to handle data transmission, power delivery, and other functionalities according to USB Type-C standards.
-SMD Design: Surface mount device construction allows for direct mounting on PCBs, which is space-efficient and suitable for modern compact electronic devices.
-Reversible Design: Like all USB Type-C connectors, it features a reversible design, allowing for easier and more convenient insertion without needing to worry about orientation.
Applications
1.Monitors and Display Devices
2.Peripherals:needed.
3.Audio Equipment
4.Automotive Applications
Specifications

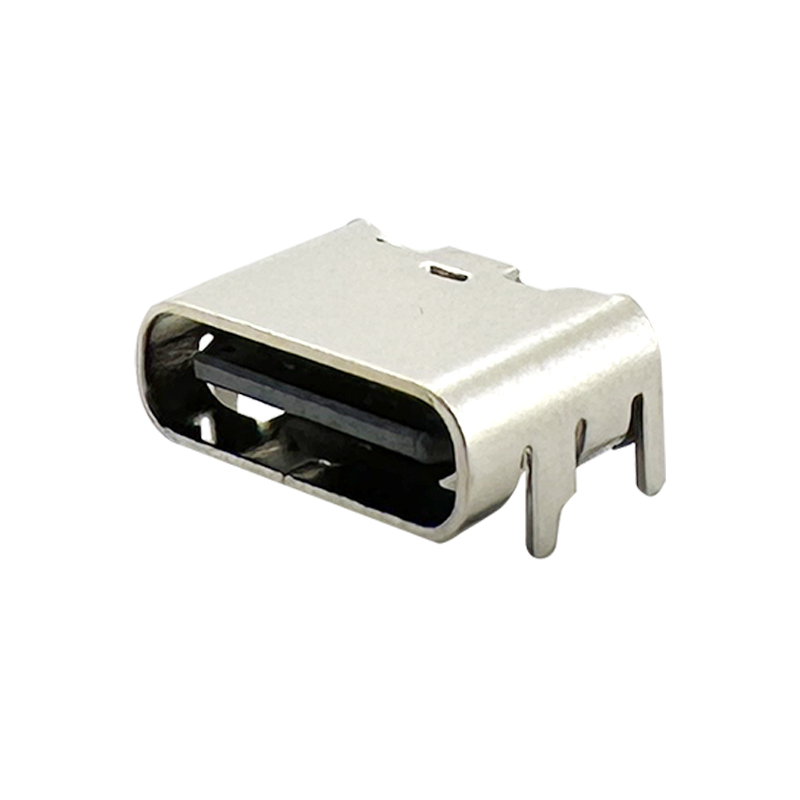

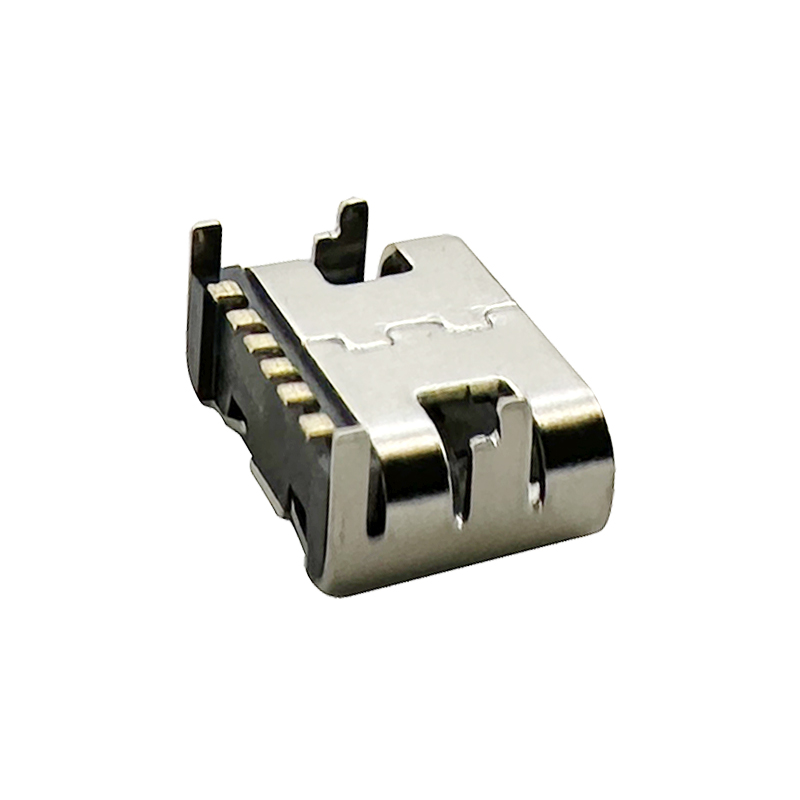

6P SMD USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles
Technical Documents
Please contact us for more information.
USB 3.1 type C connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.1 type C connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
6P SMD USB 3.1 type C connector female socket:RHTAY413
