Features
-Compatibility: Compliant with USB 3.1 Gen 1 and Gen 2 standards, supporting data transfer rates of up to 10 Gbps (Gen 2) and backward compatibility with USB 2.0 and 3.0 standards.
-Pin Count: Features 16 pins arranged to support various functionalities, including data lanes, power delivery (PD), sideband signals (SB), and configuration channel (CC) for orientation detection.
-Ease of Use: Offers a reversible design, allowing users to insert the connector in either orientation without the need for specific alignment, enhancing user convenience and reducing connector wear.
-Mounting Type: Designed for surface mount (SMD) assembly on printed circuit boards (PCBs), facilitating automated manufacturing processes and ensuring secure attachment to the PCB.
Applications
1.Monitors and Display Devices
2.Consumer Electronics
3.Desktop PCs and Workstations
4.Docking Stations and Hubs
Specifications

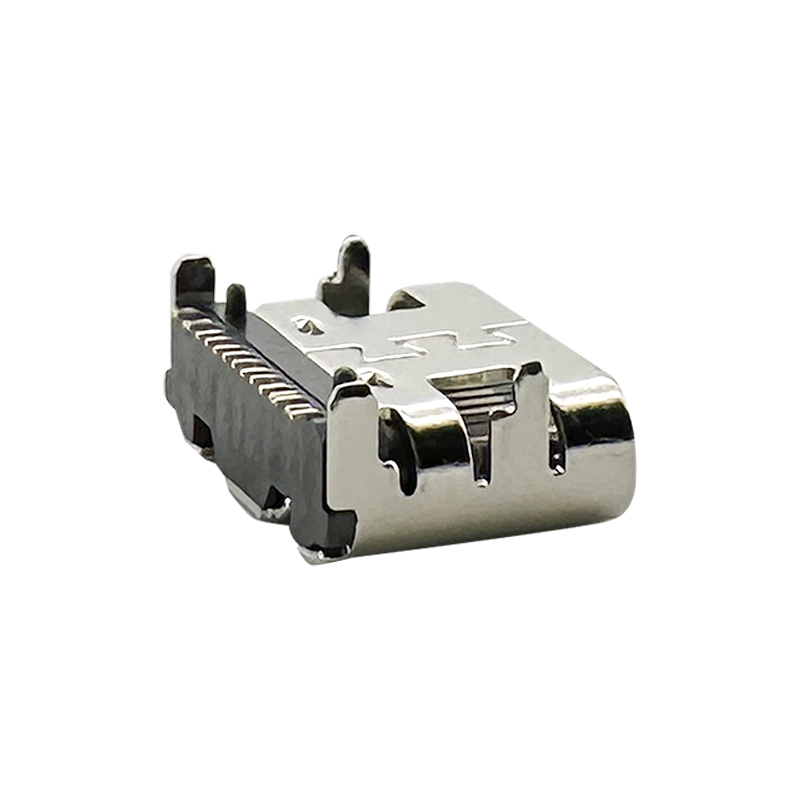

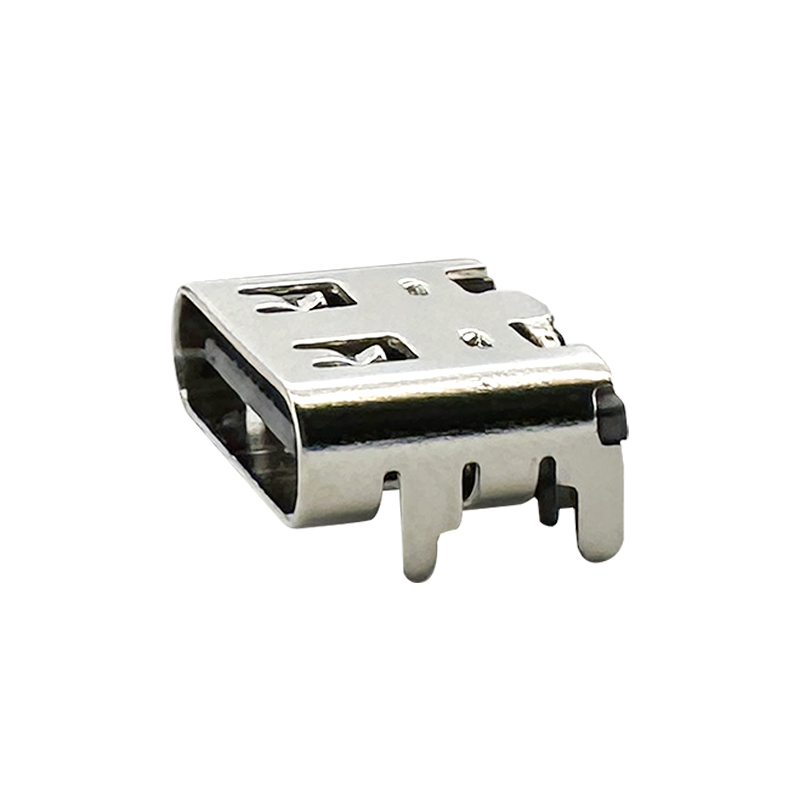

16P SMD L=7.35mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles
Technical Documents
Please contact us for more information.
USB 3.1 type C connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.1 type C connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
16P SMD L=7.35mm USB 3.1 type C connector female socket :RHTAY416S
