Features
-Height: Specifically designed with a height of 1.68mm, making it suitable for various electronic devices where space is limited but still requiring a slightly higher profile than lower-profile variants.
-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.
-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.
-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.
Applications
1.Embedded Systems and IoT Devices
2.Automotive Applications
3.Consumer Electronics
4.Medical and Healthcare Devices
Specifications

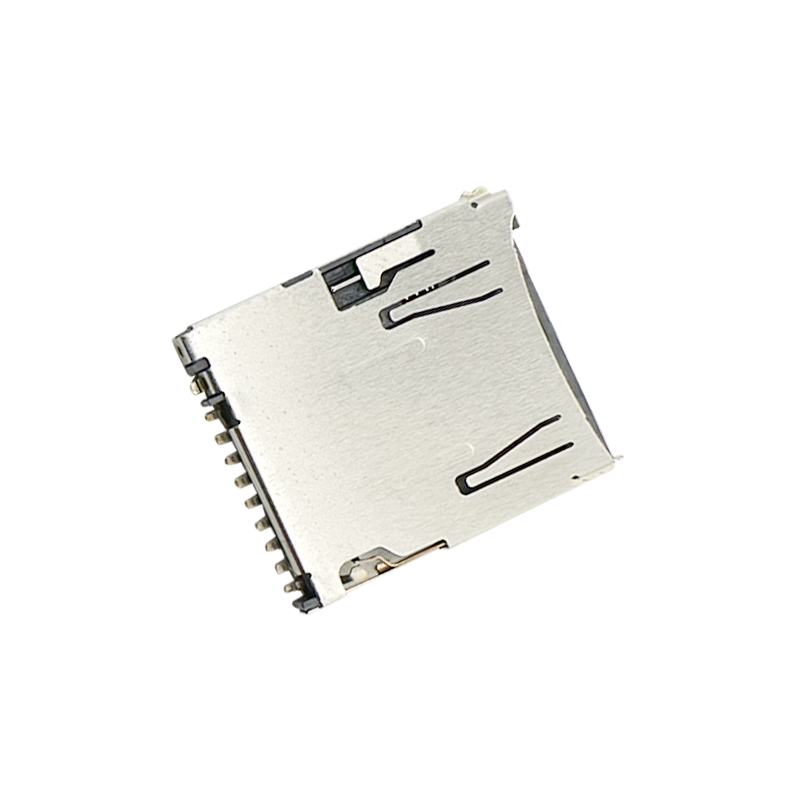

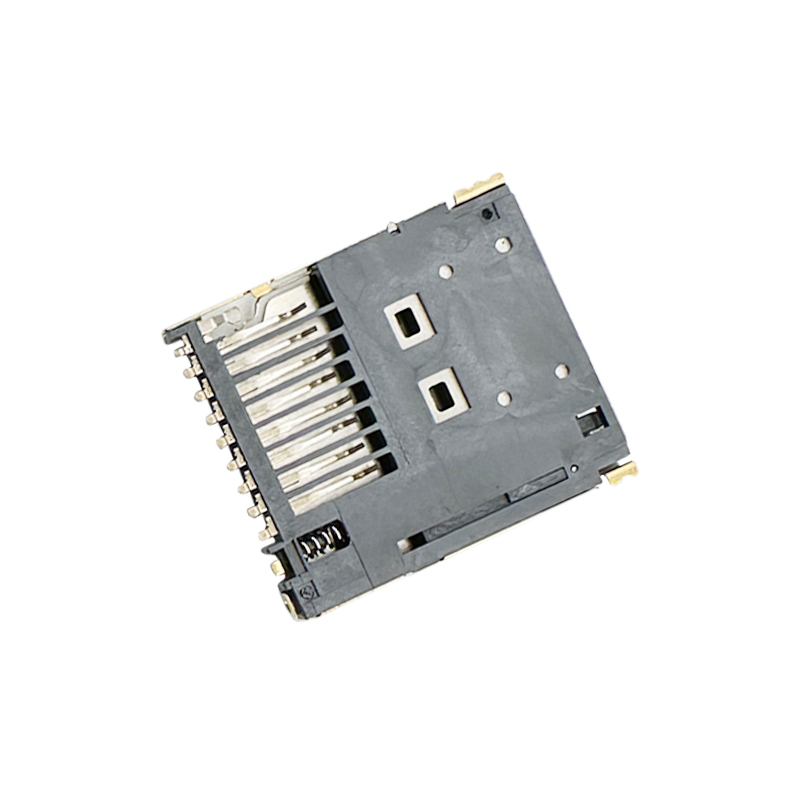

Micro SD card connector push push,H1.68mm,with CD pin
Material:
Insulator:Hi-Temperature Plastic,UL94V-0,Black.
Terminal:Copper Alloy,Gold flash plating on contact area & solder tail.
Shell:Stainless Steel,Nickel underplated on allover,gold flash on solder tail.
Electrical:
Insulation Resistance:1000MΩ Min./500V DC
Withstanding Voltage:250V AC/minute.
Contact Resistance:100mΩ Max.AT 20mA/20mV Max
Current Rating:0.5 A
Voltage Rating:5.0 vrms
Operating Temperature: -45ºC~+85ºC
Mating Cycles:5000 Insertions.
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Micro SD card connector push push,H1.68mm,with CD pin :RHTAYD114
