Features
-Height: Specifically designed with a height of 1.85mm, making it suitable for various electronic devices where space is limited but not as compact as lower-profile variants.
-"Normally Open" Configuration: This term typically refers to the switch inside the SD card slot. A "Normally Open" switch means that when the SD card is inserted, it closes a circuit to signal its presence or readiness. This configuration is important for devices that need to detect when an SD card is inserted or removed automatically.
-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.
-Electrical Performance: Provides secure electrical contacts with low contact resistance, ensuring reliable data transfer between the Micro SD card and the device.
Applications
1.Termination Style
2.Current Rating and Voltage
3.Keying and Polarization
4.Environmental Considerations
Specifications

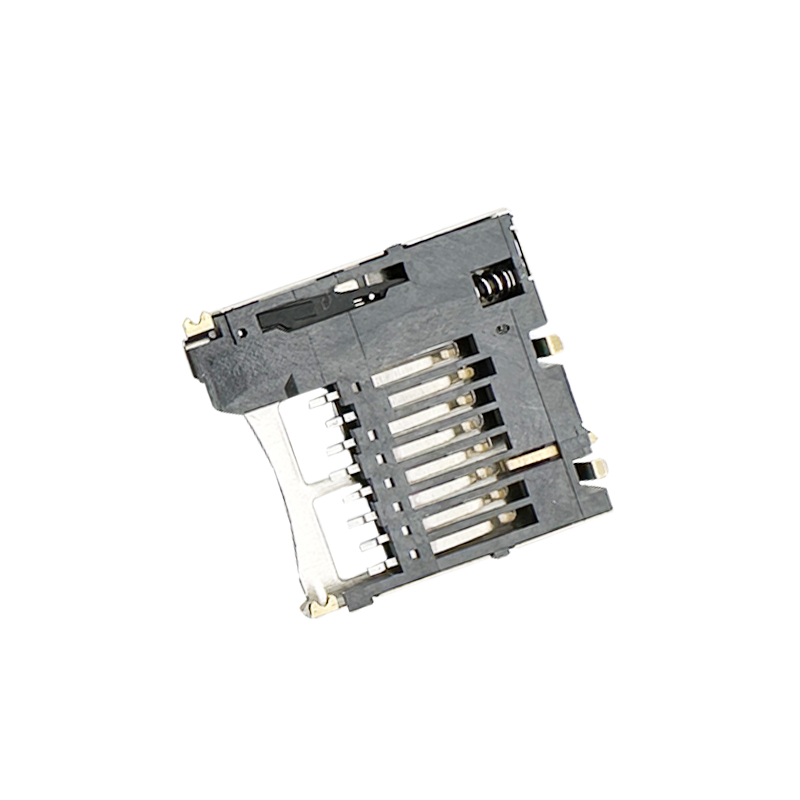

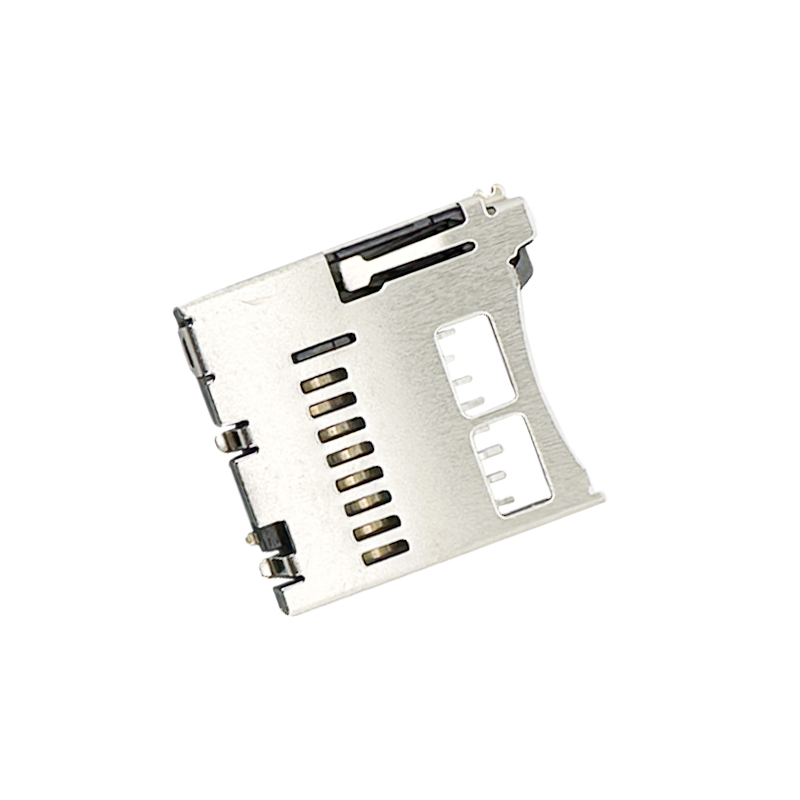

Micro SD card connector push push,H1.85mm,Normally open
Electrical:
Contact current rating:0.5A Max.
Contact resistance:100mΩ Max.
Insulation Resistance:250V DC or 300V AC for no less than 1 minute
Mating durability:10000 Cycles Min.
Insertion force:2.0kgf max.
Extraction force:0.5kgf min.
Operating Temperature: -25ºC~+85ºC
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Micro SD card connector push push,H1.85mm,Normally open:RHTAYD107
