Features
-Hinged Type Mechanism:The hinged design allows the SIM card tray to swing open, facilitating easy insertion and removal of the SIM card. This provides a secure and reliable connection once closed.
-Pin Configuration:Includes 6 pins to support all necessary electrical connections for full functionality and compatibility with standard nano SIM cards.
-Card Detect (CD) Pin:The CD pin detects the presence or absence of a SIM card. This feature allows the device to know when a SIM card is inserted or removed, enabling functionalities like software notifications or hardware triggers.
-Low Profile:With a height of 1.4mm, it is suitable for slim and compact devices, helping to maintain a sleek design.
Applications
1.Smartphones
2.Medical Devices
3.Industrial Equipment
4.Drones and Robotics
Specifications
Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloy,Plated 50u" Ni Overall Contact All Au 1U.
Shell:SUS.All Ni 30U MIN.
Electrical:
Current Rating:0.5A AC/DC MAX.
Voltage Rating:125V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:80mΩ Max.
Insulation Resistance:100MΩ Min./100V DC
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

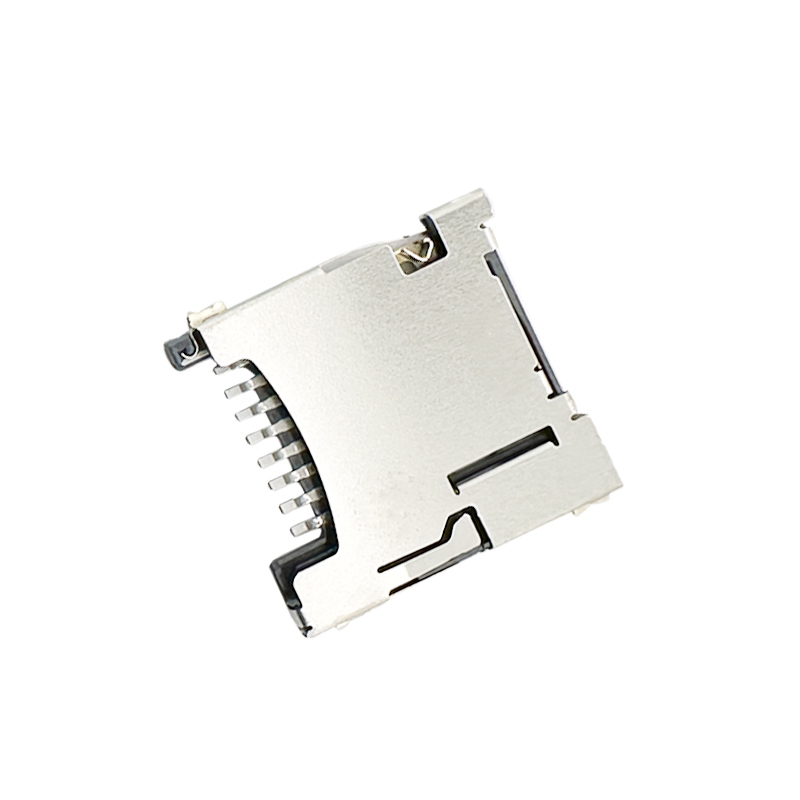

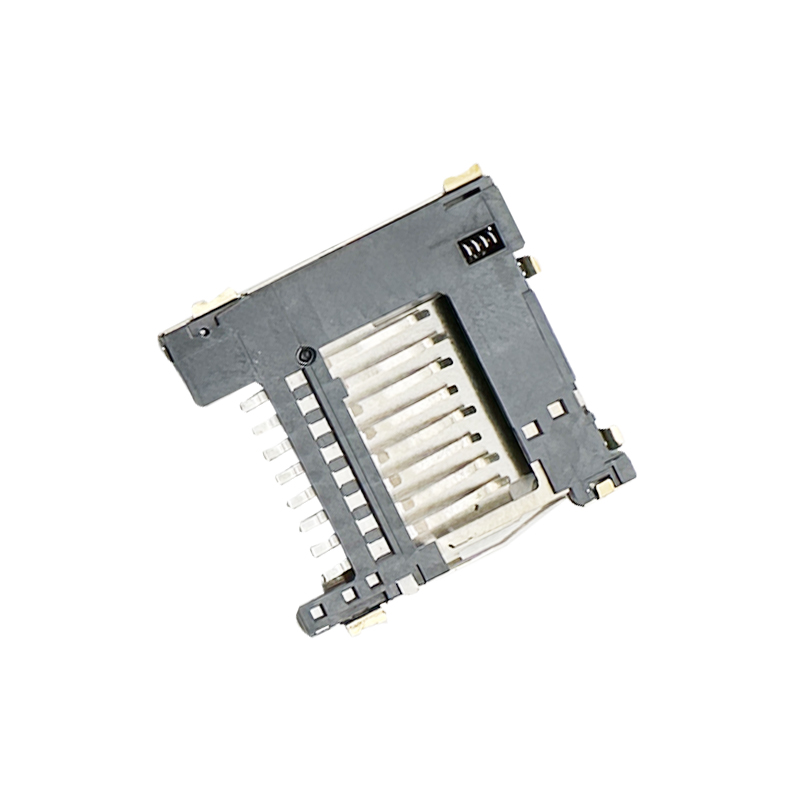

Micro SD card connector push push,H1.4mm,with CD pin:RHTAYF-016
