Features
-Connector Type: Micro SD Card Connector without push mechanism.
-Design: Compact and low-profile design suitable for space-constrained electronic devices where board height is limited.
-Height: Specifically designed with a height of 1.8mm, which is standard for many compact devices.
-Termination Type: Surface-Mount Technology (SMT), allowing direct placement and soldering onto PCB pads for reliable electrical connections.
Applications
1.Mobile Devices
2.Digital Cameras
3.Portable Media Players
4.Embedded Systems
Specifications
Micro SD card connector no push,H1.8mm
Material:
Housing:LCP,UL94V-0,Black.
Terminal:Copper Alloy,Selective Gold On Mating Area.
Shell:Iron
Electrical:
Voltage Rating:5V
Current Rating:0.5 A Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min.
Withstanding Voltage:500V 1 Minute.
Durability:10000 Cycles.
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

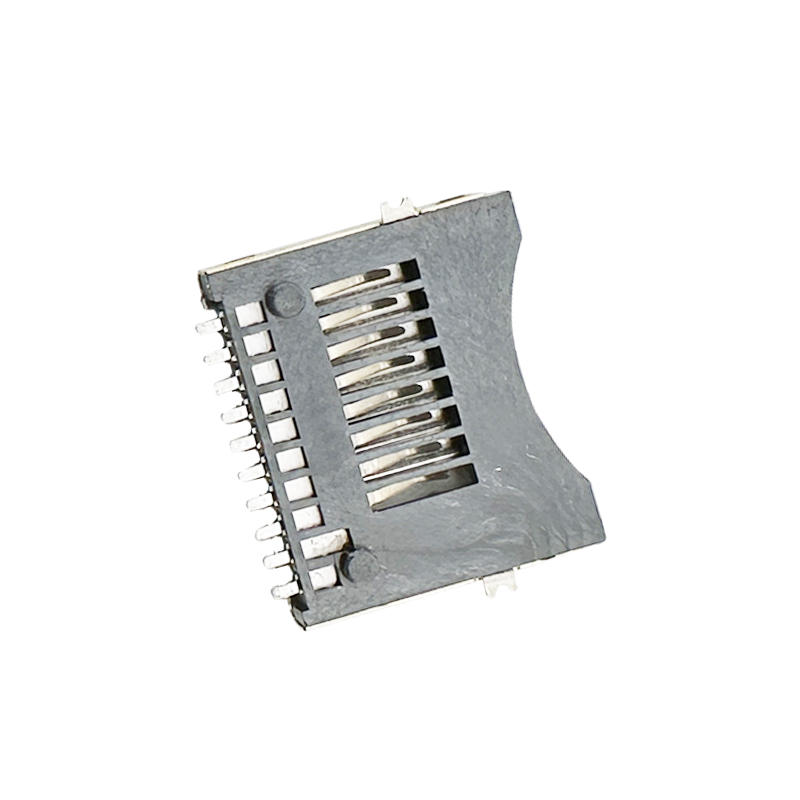

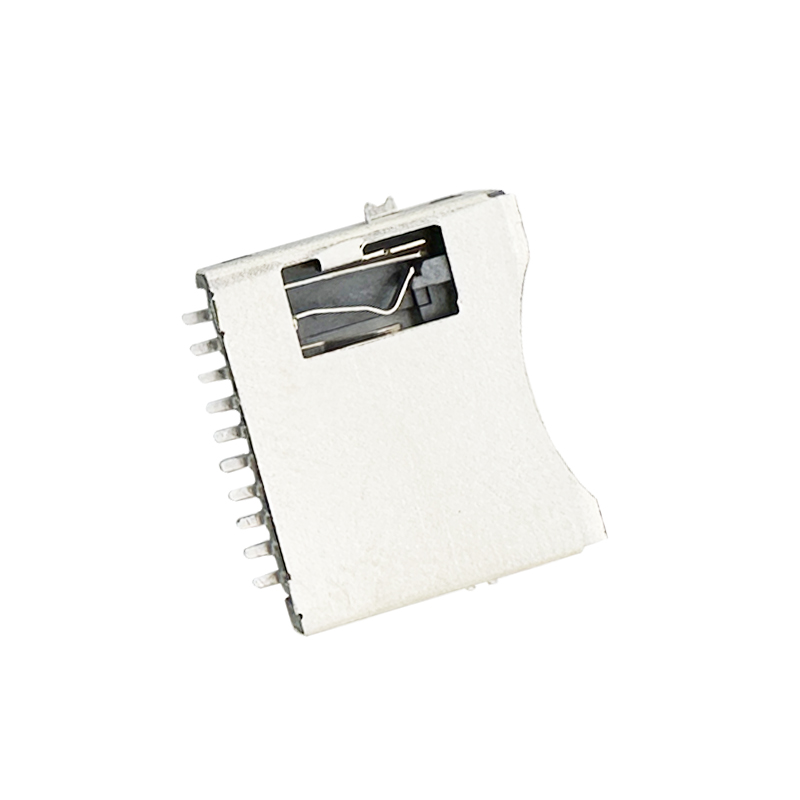

Micro SD card connector no push,H1.8mm:RHTAYF-014
