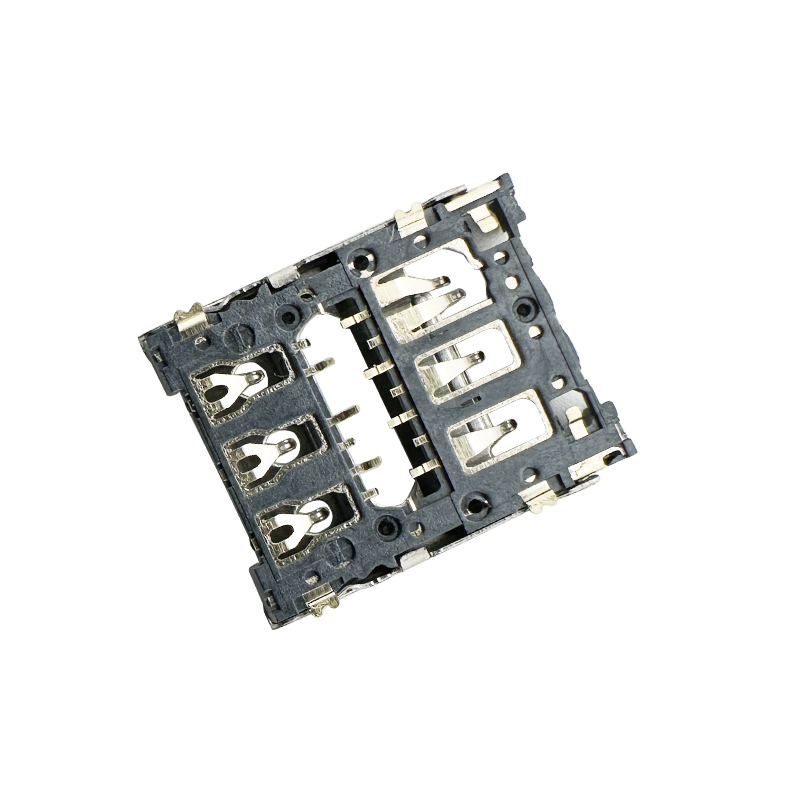

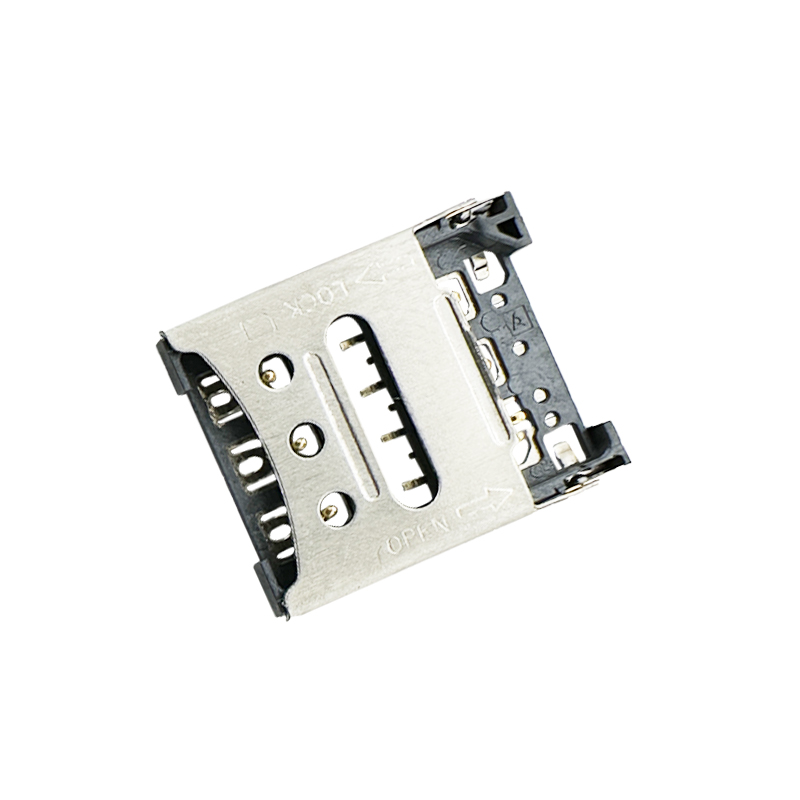

    Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin: RHTAYIM-101

    Series Part No: RHTAYIM-101
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Ultra-Low Profile (H1.4mm): With a slim 1.4mm profile, this connector is ideal for space-constrained designs, ensuring seamless integration into compact electronics.

    -6-Pin Layout: Supports essential SIM card connectivity functions, compatible with a wide range of SIM card applications, and provides stable signal transmission.

    -High Durability:Constructed to withstand numerous insertion and removal cycles, ensuring long-term reliability and performance.

    -Secure Connection:The hinged mechanism ensures that the SIM card is securely held in place, minimizing the risk of disconnection due to vibrations or impacts.

    -Material Quality:Made from high-quality materials, often with gold-plated contacts to ensure excellent conductivity and resistance to corrosion.

    -Ease of Integration:Designed for easy integration into PCB layouts, often using surface-mount technology (SMT) for straightforward assembly in manufacturing processes.

    Applications

    1.Laptops and Notebooks

    2.GPS and Navigation Devices

    3.Automotive

    4.Medical Devices

    Specifications

    Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin

    Material:

    Housing:High Temperature Thermoplastic,UL94V-0.Black.

    Terminal:Copper Alloy,Plated Gold on the contact area and solder tails,Underplated Nickel over all.

    Shell:Stainless Steel,Plated gold on the solder tails,Underplated Nickel over all.

    Electrical:

    Rated current:0.5A Max

    Rated Voltage:30V AC

    Contact Resistance:100mΩ Max.

    Insulation Resistance:1000MΩ Min./500V DC

    Dielectric Withstanding Voltage:500V AC/minute.

    Durability:5000 Cycles.

    Operating Temperature: -45ºC~+85ºC
