Features
-Pitch: The pitch of 2.0mm refers to the distance between the centerlines of adjacent pins. This standard pitch ensures compatibility with other components and connectors designed for 2.0mm pitch spacing.
-Connector Type: Male pin header connectors consist of rows of pins designed to be inserted into corresponding female connectors or sockets. The dual insulator plastic type means that the connector has two plastic insulators or shrouds, providing additional mechanical stability and protection to the pins.
-Mounting Style: Designed for through-hole mounting on PCBs, where the pins are inserted into plated through-holes and soldered to the PCB for secure attachment and electrical connection.
-Plating Options: Pins may be plated with materials such as gold, tin, or silver to improve conductivity, prevent oxidation, and ensure reliable electrical contact over multiple mating cycles.
Applications
1.Industrial Applications
2.Automotive Electronics
3.Medical Devices
4.Aerospace and Defense
Specifications

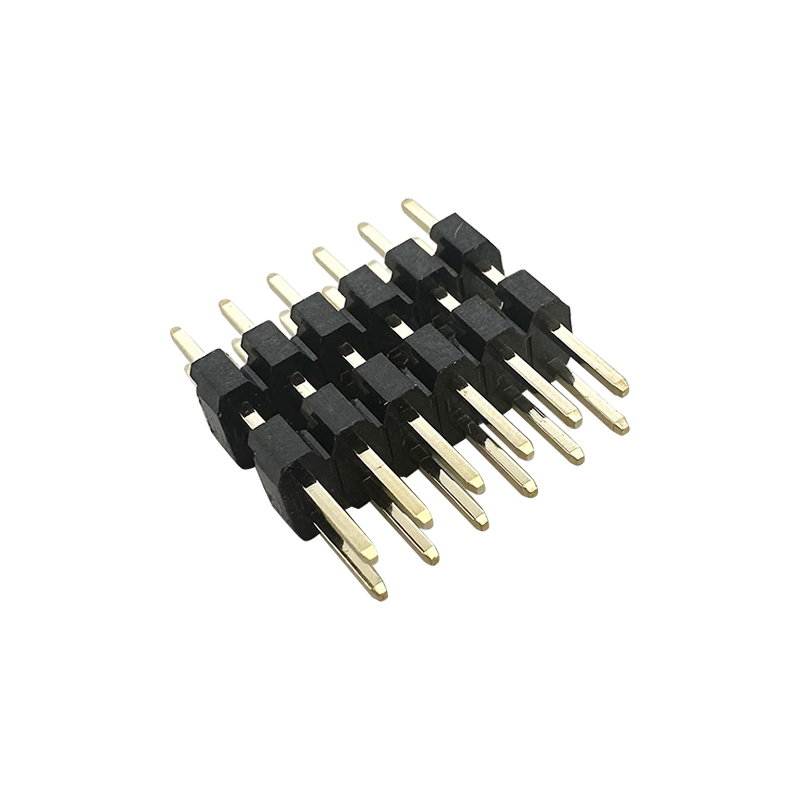

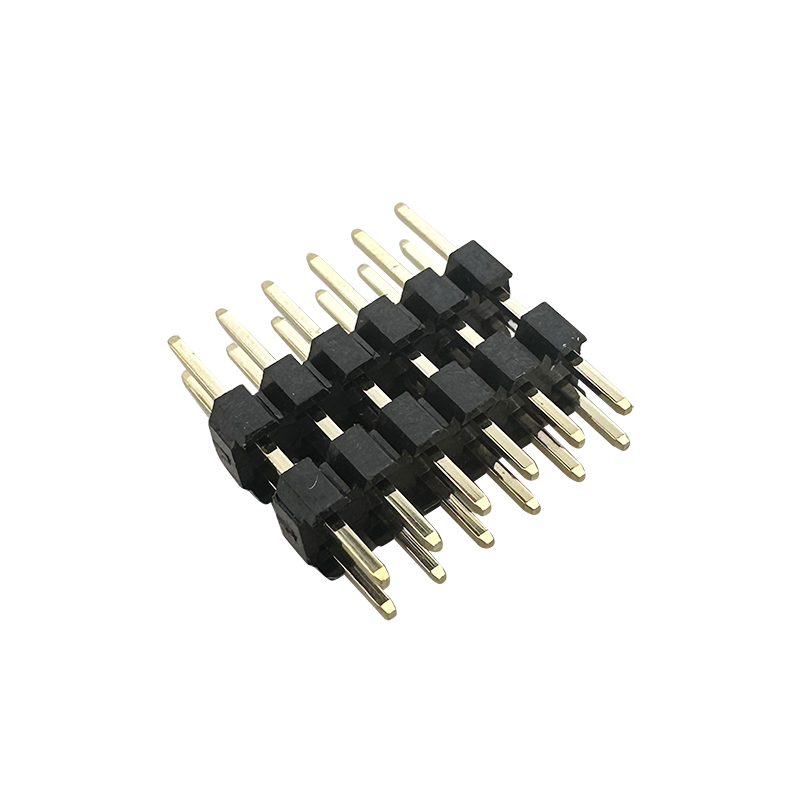

2.0mm Pitch Pin Header Connector With Dual Insulator Plastic Type
Order Information
RHTAY18B-2.00-1-XX-S-L1*L2*L3 -G0
Plastics Height:2.00mm、1.50mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
2.0mm Pitch Male Pin Header Connector Dual Insulator Plastic Type :RHTAY18B
