Features
-Current Rating:Rated for low to moderate current levels, typically ranging from 1A to 3A per pin, depending on the specific design and application.
-Operating Temperature Range:Designed to operate within a broad temperature range, typically from -40°C to +105°C, making them suitable for various environmental conditions.
-Mating Cycles:Designed to withstand multiple mating and unmating cycles, ensuring durability and long-term reliability.
-Keying and Polarization:Some connectors may include features that ensure proper orientation and mating, preventing misalignment and ensuring secure connections.
Applications
1. Aerospace and Defense
2. LED Lighting Systems
3. oT (Internet of Things) Devices
4. Embedded Systems
Specifications

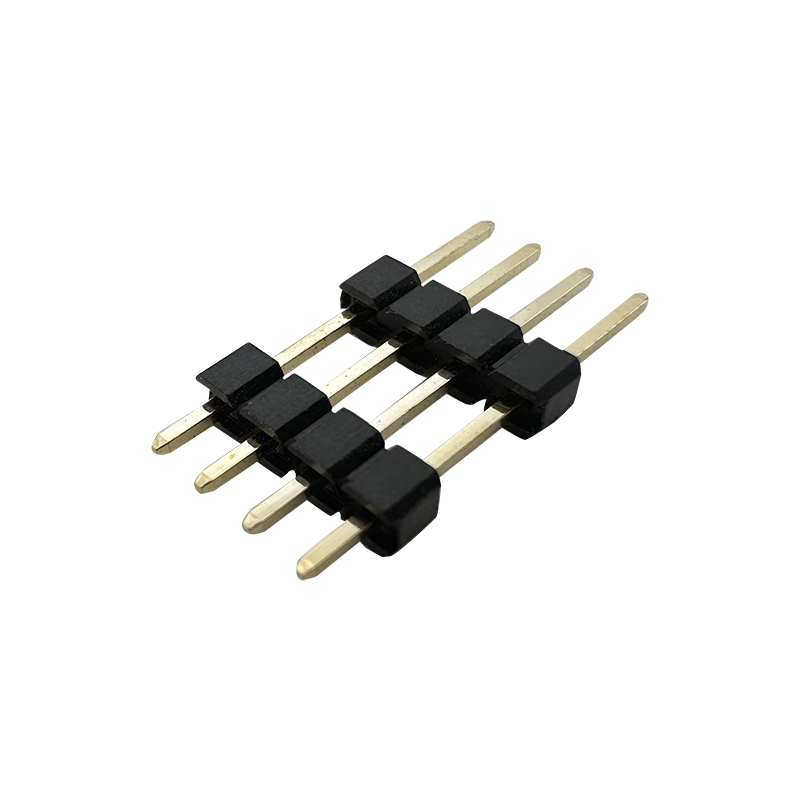

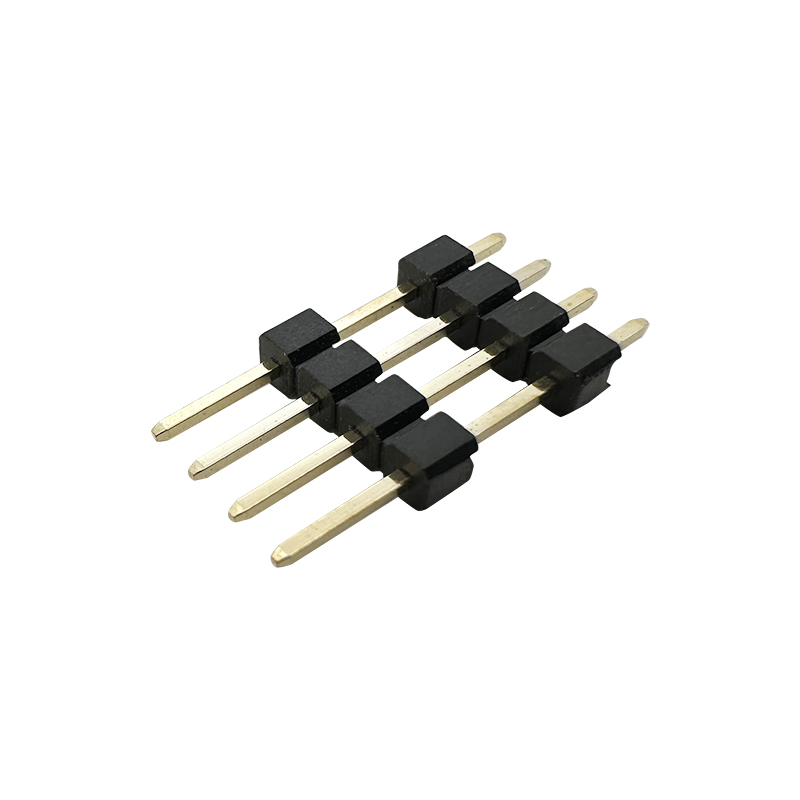

1.27mm Pitch Pin Header Connector With Dual Insulator Plastic Type
Order Information
RHTAY18C-1.50-1-XX-S-L1*L2*L3 -G0
Plastics Height:2.00mm、1.50mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
Material:
Housing: PA6T , UL94V-0
Contacts: Brass
Plating: Selective gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 5000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
1.27mm Pitch Male Pin Header Connector Dual Insulator Plastic Type :RHTAY18C
