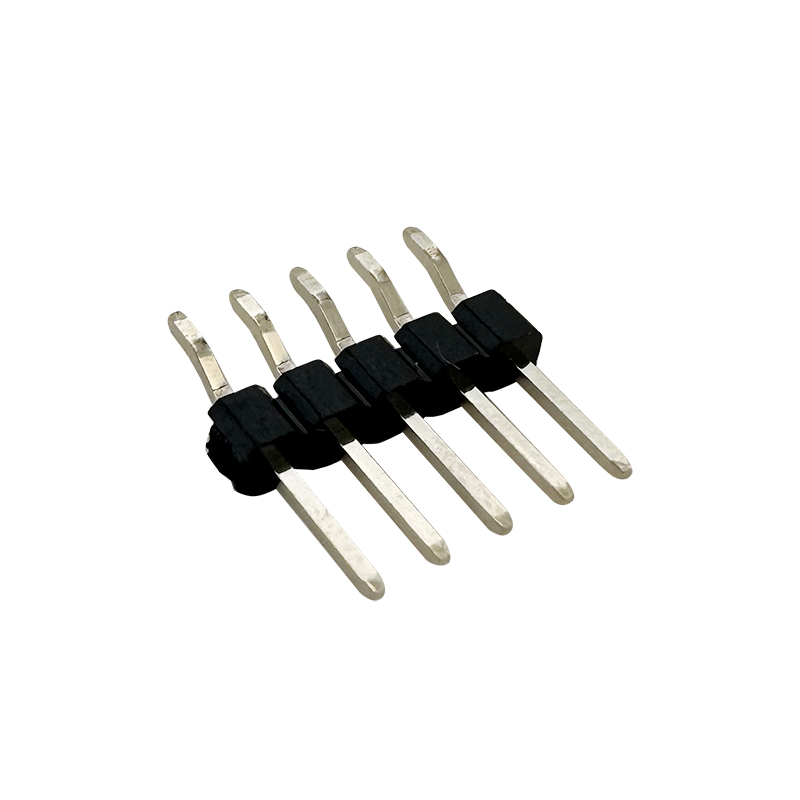

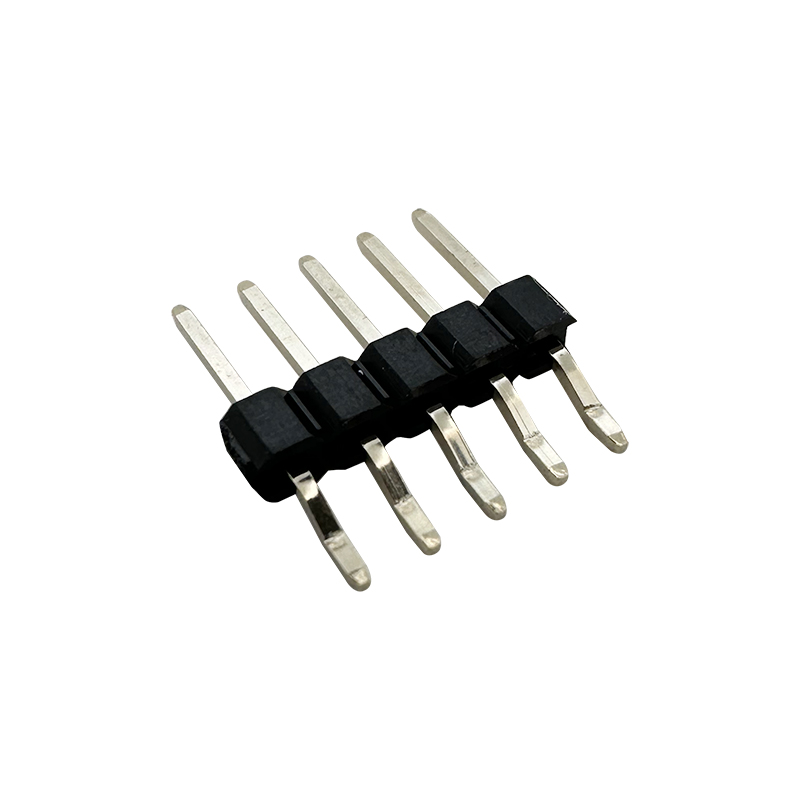

    1.27mm Pitch Pin Header Connector SMD :RHTAY07CA

    Series Part No: RHTAY07CA
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Mounting Type:Designed for surface-mounting on PCBs using reflow soldering processes. SMD pin headers feature solder tails or pads that adhere to the PCB surface, ensuring secure attachment and electrical connectivity.

    -Current Rating:Rated for a range of current levels depending on the pin size, material, and configuration. SMD pin headers are suitable for low to moderate current applications typical in consumer electronics and industrial devices.

    -Operating Temperature Range:Designed to operate within a specified temperature range, often from -40°C to +105°C or higher, ensuring suitability for various environmental conditions and applications.

    -Customization:Can be customized in terms of pin length, plating thickness, insulator color, and other specifications to meet specific design requirements and application needs.


    Applications

    1. Test and Measurement Instruments

    2. LED Lighting Systems

    3. Security Systems

    4. Audio-Visual Equipment


    Specifications

    1.27mm Pitch Pin Header Connector SMD

    Order Information

    RHTAY07CA-1.50-1-XX-PA*PC*PB-G0-W-R

    Plastics Height:1.50、2.00、2.50mm

    1-Single layer  2-Double layer

    XX-Total pin number  (No.of 2~80pin)

    SIZE:PA*PC*PB

    Plating:G0=Gold Flash  G1=1u" Gold   G10=10u" Gold   G15=15u" Gold   G30=30u" Gold

    N=W/O post  W=with post

    Packing: 0=PE Bag    A=Tray    T=Tube P=Tube+Cap   R=Reel+Cap

    Material:

    Housing: PA6T UL94V-0

    Contacts: Brass

    Plating: Gold plated: 0.8u" over 50u" nickel

    Electrical Characteristics:

    Current Rating: 1.0 AMP

    Insulator Resistance: 1000M Ohm min.

    Contact Resistance: 20m Ohm max.

    Withstanding Voltage:AC 500V/Minute

    Operating Temperature: -45ºC~+105ºC


    Technical Documents

    Please contact us for more information.
