Features
-Pitch: The 2.0mm pitch refers to the distance between the centerlines of adjacent pins. This standard pitch ensures compatibility with other components and connectors designed for 2.0mm pitch spacing.
-Connector Type: Male pin header connectors consist of rows of pins designed to be inserted into corresponding female connectors or sockets. They facilitate electrical connections between PCBs or between PCBs and other components.
-Mounting Style: Designed for through-hole mounting on PCBs, where the pins are inserted into plated through-holes and soldered to the PCB for secure attachment and electrical connection.
-Plating Options: Pins may be plated with materials such as gold, tin, or silver to improve conductivity, prevent oxidation, and ensure reliable electrical contact over multiple mating cycles.
Applications
1.Consumer Electronics
2.Medical Devices
3.Aerospace and Defense Applications
4.Test and Measurement Instruments
Specifications
2.0mm Pitch Pin Header Connector
Order Information
RHTAY07B-3-XX-S-L1*L2*L3-G0
3-3 layer
XX-Total pin number (No.of 3~120pin)
S-Straight Pin R-Right Angle Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.

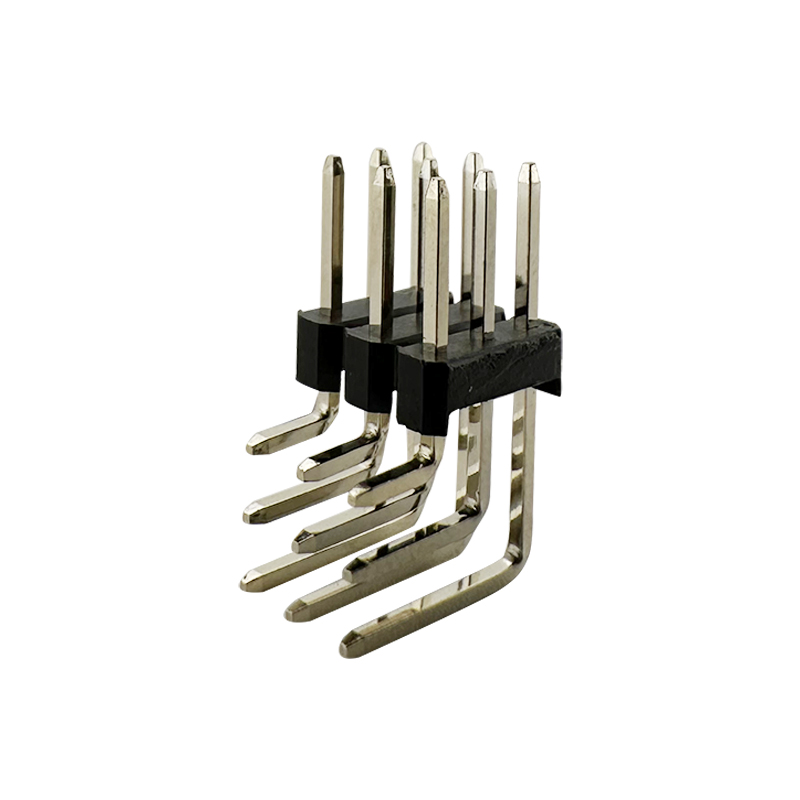

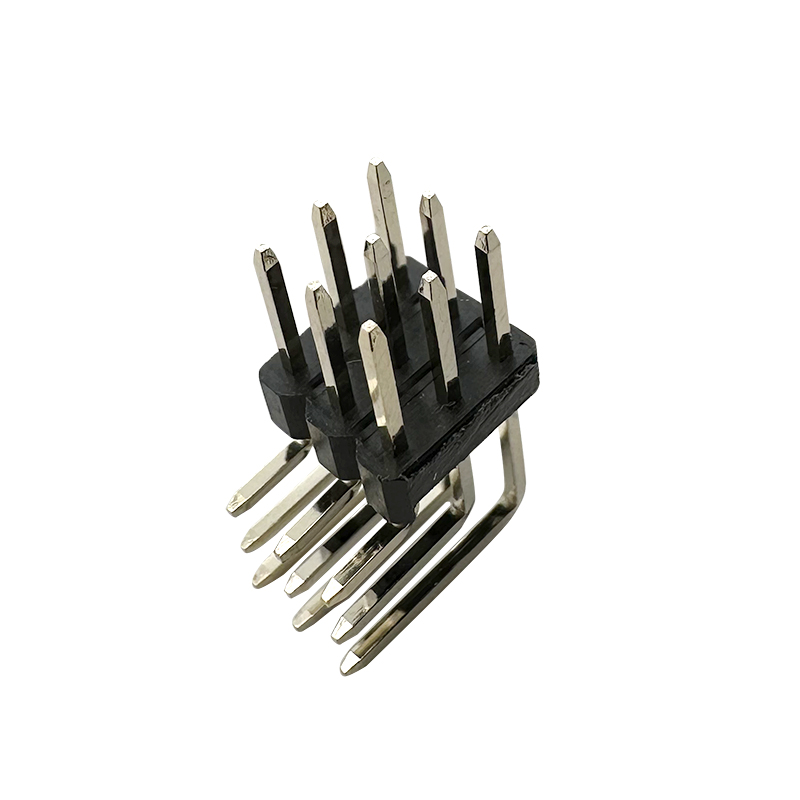

2.0mm Pitch Male Pin Header Connector 3 layer :RHTAY07B-3
