Features
-Contact Material: Contacts are typically made from materials such as phosphor bronze or brass with tin or gold plating. These materials ensure good electrical conductivity, corrosion resistance, and durability over multiple mating cycles.
-Housing Material: The housing of wire-to-board connectors is usually made from durable thermoplastics that provide mechanical strength and insulation between contacts. The housing design may include features such as polarization keys, guides, or locking mechanisms to ensure correct alignment and secure mating.
-Termination Methods: Wire-to-board connectors support various termination methods for wires, including crimping, soldering, or insulation displacement (IDC). This flexibility allows for different assembly techniques depending on the application requirements and manufacturing processes.
-Mounting Style: Designed for through-hole mounting or surface-mounting on PCBs. Through-hole connectors have pins that extend through holes in the PCB and are soldered on the opposite side, providing a secure and mechanically stable connection. Surface-mount connectors have surface-mount pads that are soldered directly onto the PCB surface, facilitating automated assembly processes.
Applications
1.Consumer Electronics
2.Industrial Electronics
3.Automotive Electronics
4.Telecommunications and Networking
Specifications
2.54mm Wire To Board Connector
Order information:
RHTAYL1-2.54-04-H
Pitch:2.54mm
pins:4~64
H=Hosing / T=Terminal
Specifications
◆Material: PBT UL 94V0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:3A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:1500V AC/minute
◆Contact resistance:20mΩ/Max.
Technical Documents
Please contact us for more information.

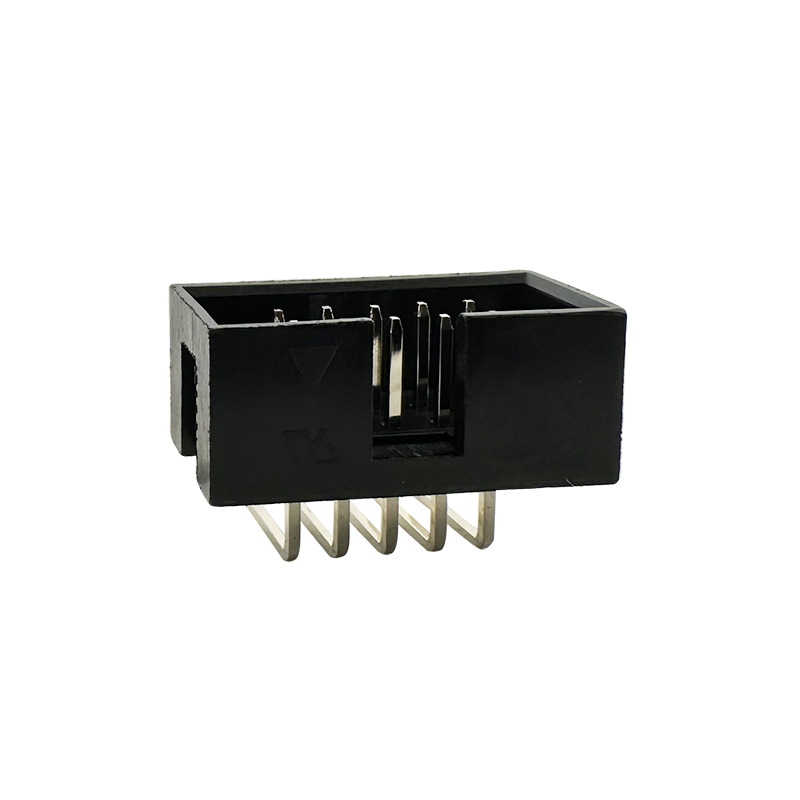

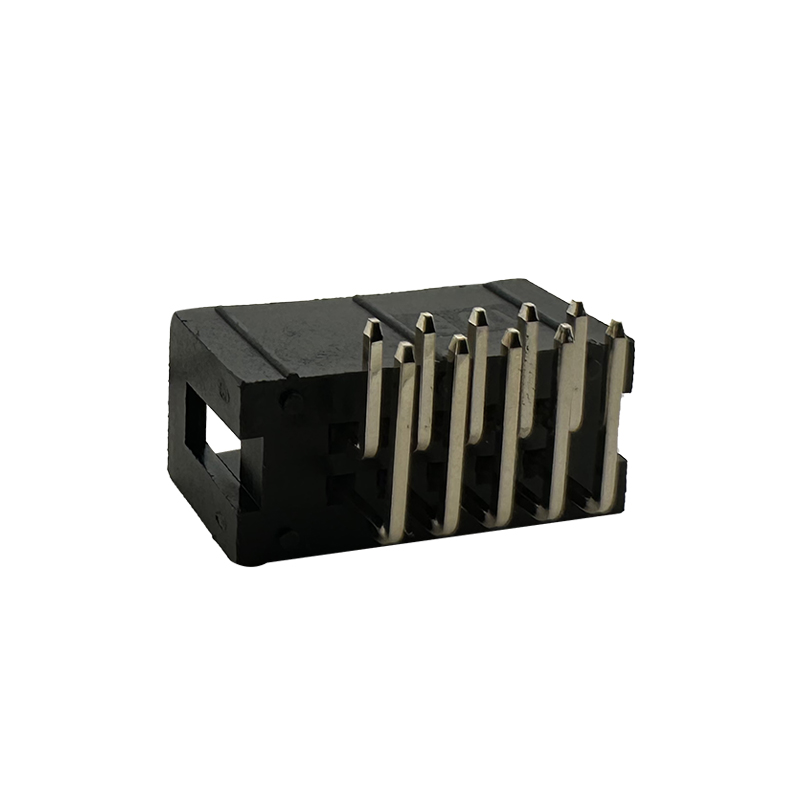

2.54mm Wire To Board Connector :RHTAYL1-2.54
