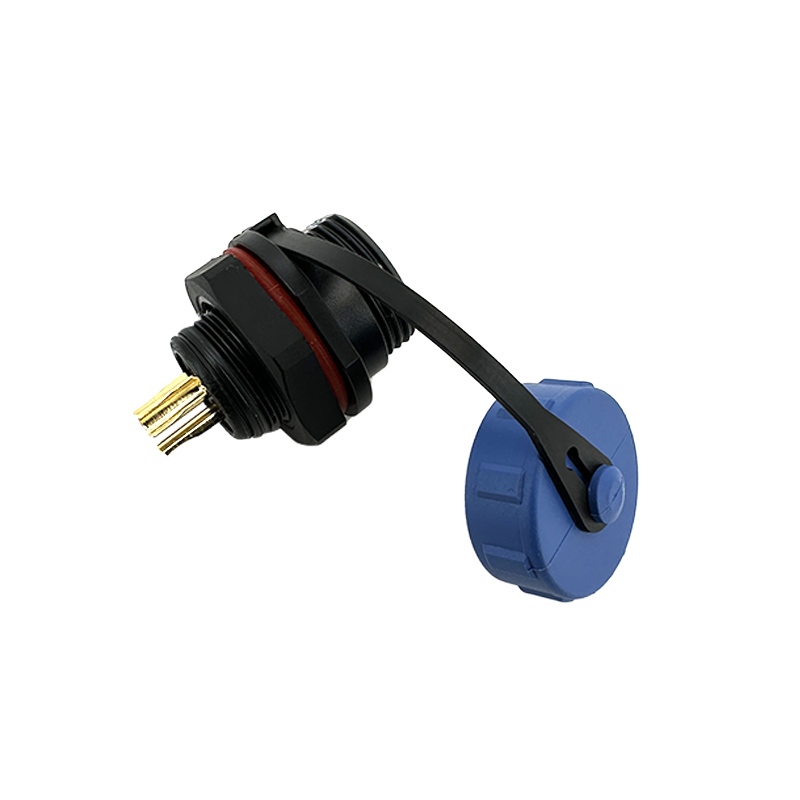

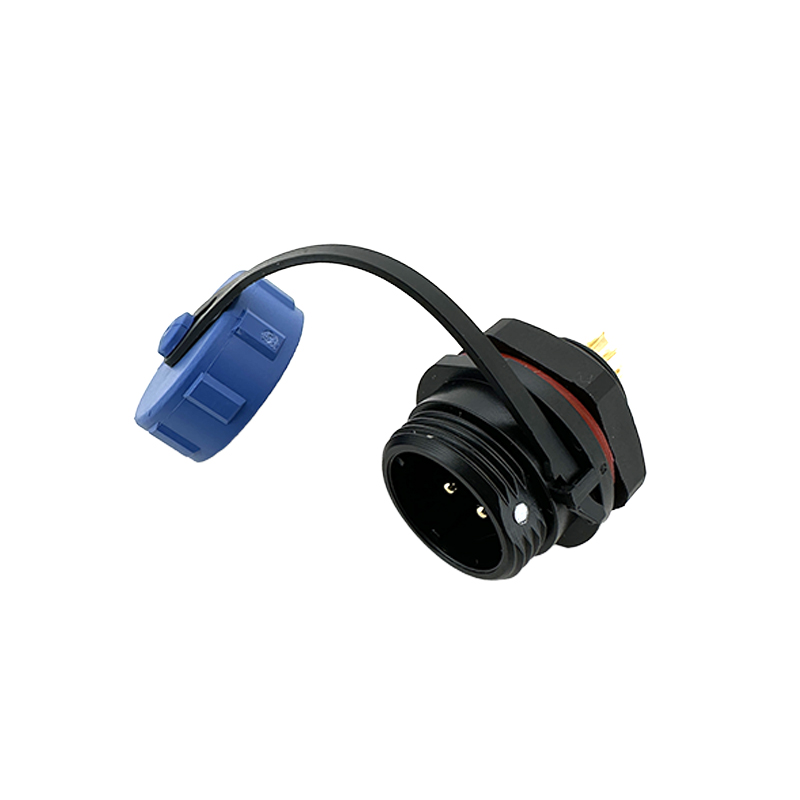

W13&W17&W21 IP68 waterproof circular connectors : RE-C-W13B2

Series Part No: RE-C-W13B2

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Material & SPEC.
1.Shell Material:                PPO,PA66 UL94V-0
2.Insulation Materials:      PPS, High Temperature 260°C
3.Contact:                        Brass,Gold-plated
4.Insulation resistance:    2000MΩ
5.Number of   poles:         2~9 poles
6.Coupling:                       Threaded
7.Termination:                  Solder
8.Cable outer Diameter:    Not- 4~6.5mm; G- 5~8mm
9.IP Rating:                      IP68
10.Durability:                    500 mating cycles
11.Temperature Range:      -25°C~+80°C
