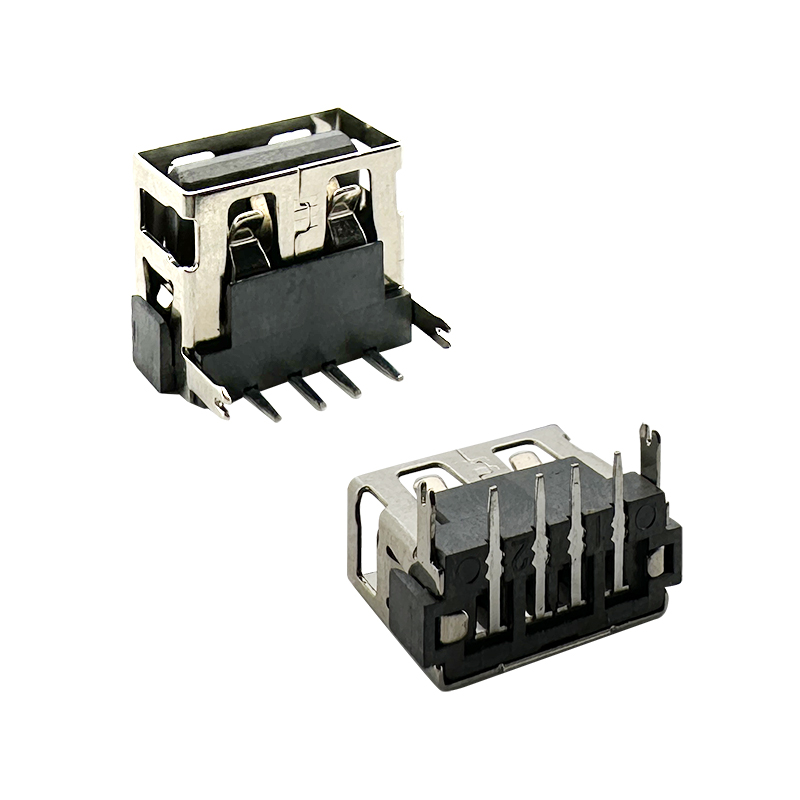

Features
-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring reliable performance over the connector's lifespan.
-Shielding: Often includes shielding to protect against electromagnetic interference (EMI), which helps maintain signal integrity during high-speed data transmission.
-Connector Type: Female USB connectors are designed to receive male USB plugs, enabling devices to connect for data transfer, charging, and other functionalities.
-Mounting Type: Surface mount device (SMD) connectors provide secure attachment to the PCB during soldering, ensuring mechanical stability and reliable electrical connections.
Applications
1.Automotive Electronics
2.Industrial Automation
3.Medical Devices
4.Point-of-Sale (POS) Systems
Specifications
Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
