Features
-Housing Material: Typically made from high-quality plastic, providing insulation and durability.
-Contact Material: Contacts are usually made from copper alloys with gold or nickel plating to ensure good conductivity and resistance to corrosion.
-Shielding: Includes metal shielding to protect against electromagnetic interference (EMI) and to ensure signal integrity.
-Current Rating: Typically supports up to 1.5A for USB 2.0 and up to 3A for USB 3.0/3.1, depending on the specific design.
Applications
1.Telecommunications
2.Automotive Applications
3.Embedded Systems
4.Computers and Peripherals
Specifications
Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tail.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

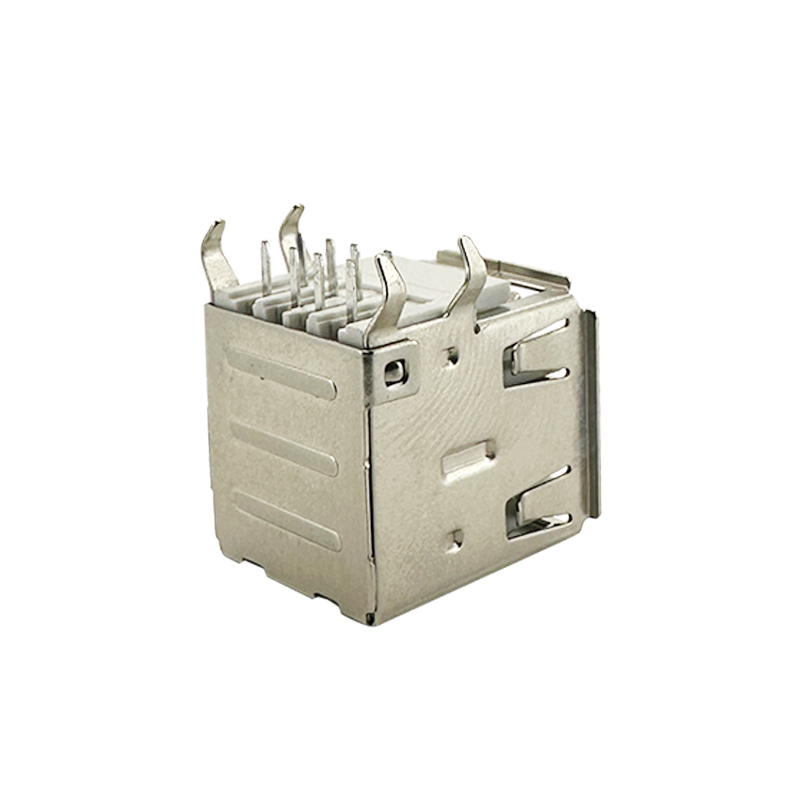

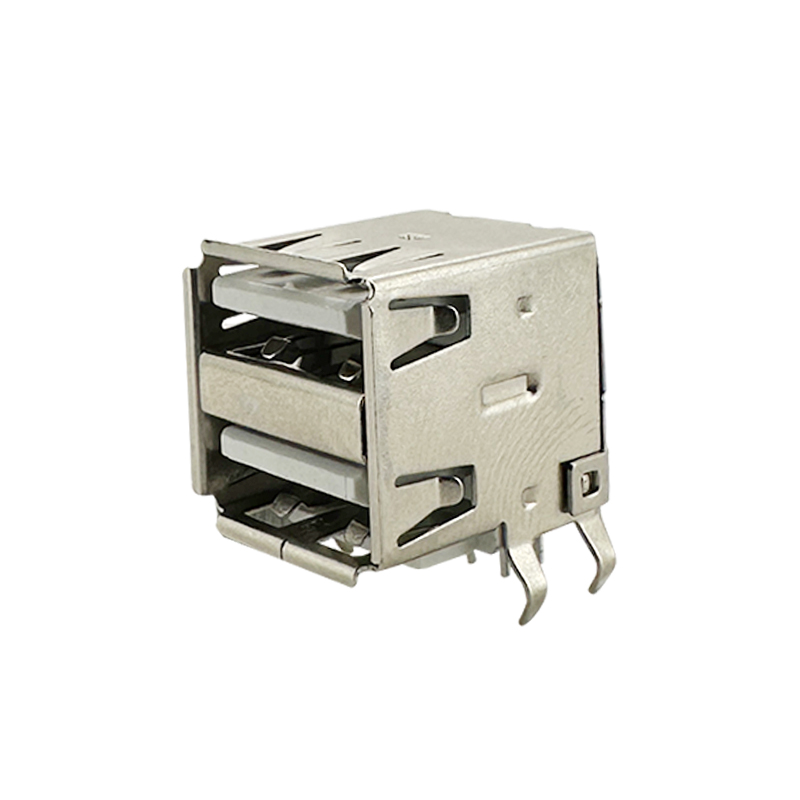

2X01 A Female Dip 90 USB Connector:RHTAY53
