Features

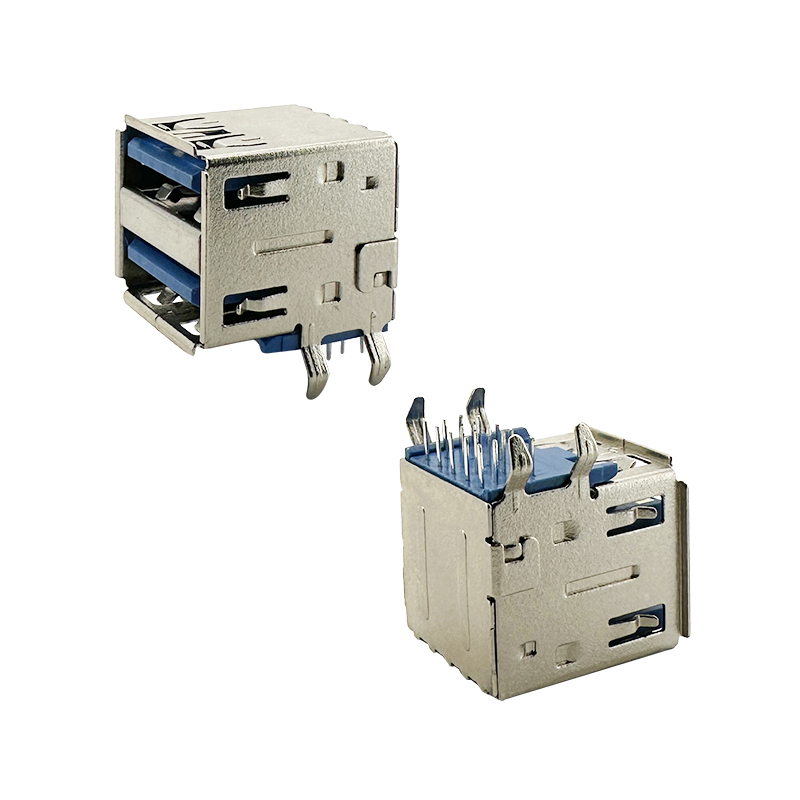

-Dual-Row Design (2x1): Consists of two rows of contacts (2x1), providing a more robust and stable connection compared to single-row designs, suitable for applications requiring higher reliability.
-Compatibility: Compliant with USB 3.0 specifications, ensuring compatibility with devices requiring high-speed data transfer rates and backward compatibility with USB 2.0 devices.
-Design: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.
-Speed: Supports SuperSpeed USB 3.0 data transfer rates up to 5 Gbps, enabling rapid data transfer for large files, multimedia content, and high-definition video.
Applications
1.Audio and Video Equipment
2.Industrial Control and Automation
3.Medical Devices
4.Gaming Consoles and Accessories
Specifications
Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating: 1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
Insulation Resistance:1000MΩ Min
Mechanical
Operating Temperature:-30°C TO +80°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
Technical Documents
Please contact us for more information.
