Features
-Dual-Row Design (2x1): Consists of two rows of contacts (2x1), providing a more robust and stable connection compared to single-row designs, suitable for applications requiring higher reliability.
-Compatibility: Compliant with USB 3.0 specifications, ensuring compatibility with devices requiring high-speed data transfer rates and backward compatibility with USB 2.0 devices.
-Design: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.
-Speed: Supports SuperSpeed USB 3.0 data transfer rates up to 5 Gbps, enabling rapid data transfer for large files, multimedia content, and high-definition video.
Applications
1.Audio and Video Equipment
2.Industrial Control and Automation
3.Medical Devices
4.Gaming Consoles and Accessories
Specifications
Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM
Electrical
Contact Current Rating: 1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
50mΩ Max(Initial) For Other Contacts
Insulation Resistance:1000MΩ Min
Mechanical
Operating Temperature:-30°C TO +80°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
Technical Documents
Please contact us for more information.
USB 3.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

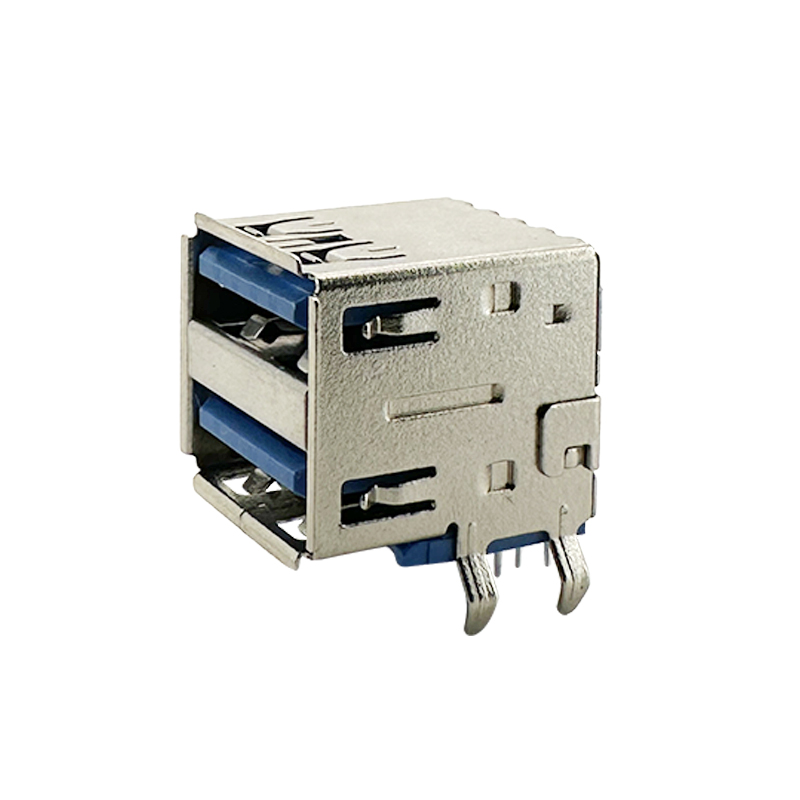

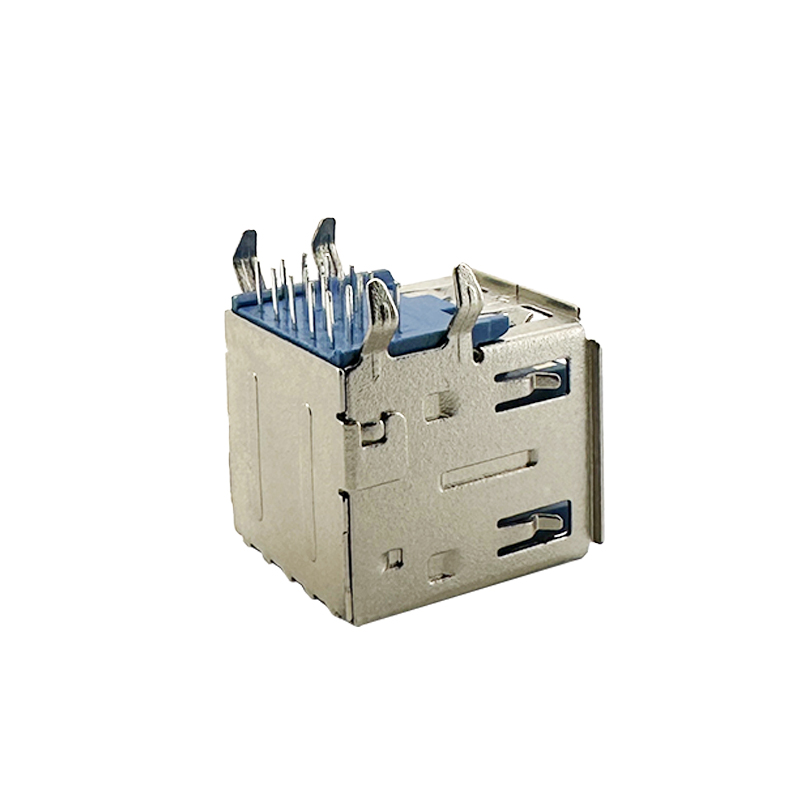

dip 90 2x1 A Female 9P USB 3.0 Connectors :RHTAY001
