15EDGVM
Features
-Termination Method: Allows for easy and secure wire termination using appropriate crimping tools or by tightening screws, depending on the terminal block design.
-Mounting Options: Designed with fixed holes for PCB (Printed Circuit Board) mounting using through-hole technology. This feature provides a stable and secure attachment to the PCB, ensuring reliability in various operating conditions.
-Orientation: The straight pin orientation allows for vertical insertion into PCBs, facilitating neat and compact board designs, especially in applications where space is limited horizontally.
-Environmental Considerations: Resistant to environmental factors such as temperature variations, humidity, and mechanical stress, ensuring reliable performance in diverse operating conditions.
Applications
1.Printed Circuit Board (PCB) Assemblies
2.Industrial Control Systems
3.Telecommunications Equipment
4.Consumer Electronics
Specifications
Electrical
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Material
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Technical Documents
Please contact us for more information.

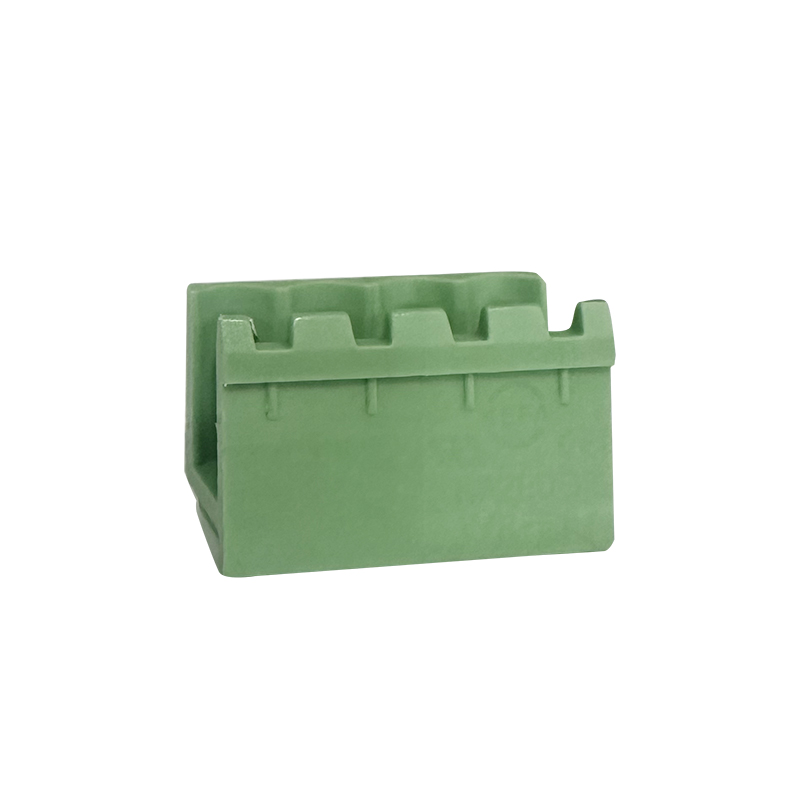

15EDGVM 3.50mm & 3.81mm Female Pluggable Terminal Block, : RHTBYDLV-3.50&3.81
