15EDGRT
Features
-Pitch Size: Refers to the center-to-center spacing between adjacent terminals. The 3.50mm and 3.81mm pitch sizes are standard measurements that allow for compatibility with various electronic components and PCB designs.
-Connector Type: Designed with female sockets or receptacles that accept corresponding male pins or headers. This design facilitates easy and secure connections and disconnections.
-Terminal Type: Utilizes screw terminals, spring terminals, or other types of connectors for wire termination. This ensures a secure and reliable electrical contact.
-Material: Made from durable materials such as brass, copper, or tin-plated copper for good electrical conductivity, corrosion resistance, and mechanical strength. The housing material is typically a robust thermoplastic that provides insulation and mechanical support.
Applications
1.Automotive Electronics
2.Medical Devices
3.Industrial Sensors and Actuators
4.LED Lighting Systems
Specifications
Electrical
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Material
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Technical Documents
Please contact us for more information.

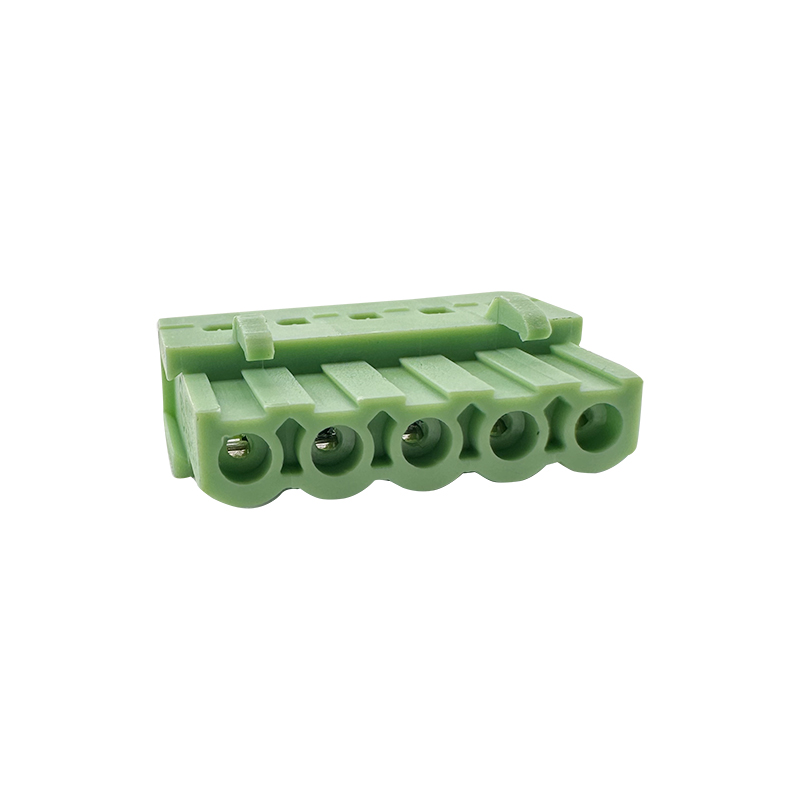

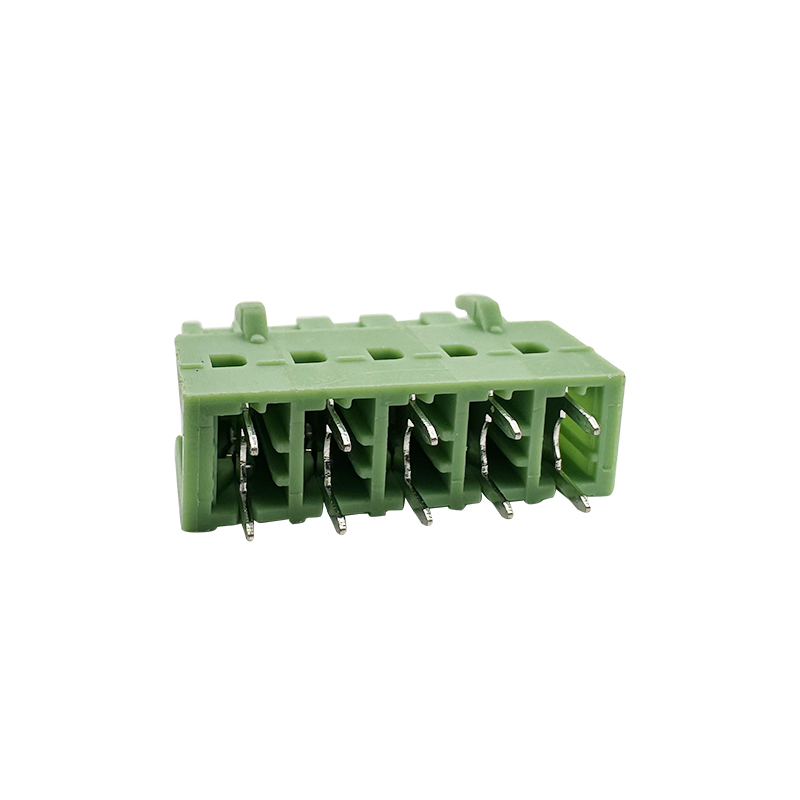

15EDGRT 3.50mm & 3.81mm Female Pluggable terminal block Right Angle:RHTBYDBR-3.50&3.81
