Features
-Material:Terminal blocks are commonly made from materials like brass, with a tin-plated surface to prevent corrosion and improve conductivity.
-Mounting Options:They may come with options for PCB (Printed Circuit Board) mounting or chassis mounting, depending on the application requirements.
-Current Rating:They are designed to handle specific current ratings, typically ranging from a few amps to tens of amps, depending on the size and construction.
-Voltage Rating:Voltage ratings can vary but are typically suitable for low to medium voltage applications.
Applications
1.Industrial Control Systems
2.Power Distribution
3.Renewable Energy:
4.Consumer Electronics
Specifications
Electrical
Rated voltage:300V
Rated current:20A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:26-12AWG2.5mm²
Material
Screws: M3 steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (10.6lb.in)
Strip length: 6~7mm
Technical Documents
Please contact us for more information.

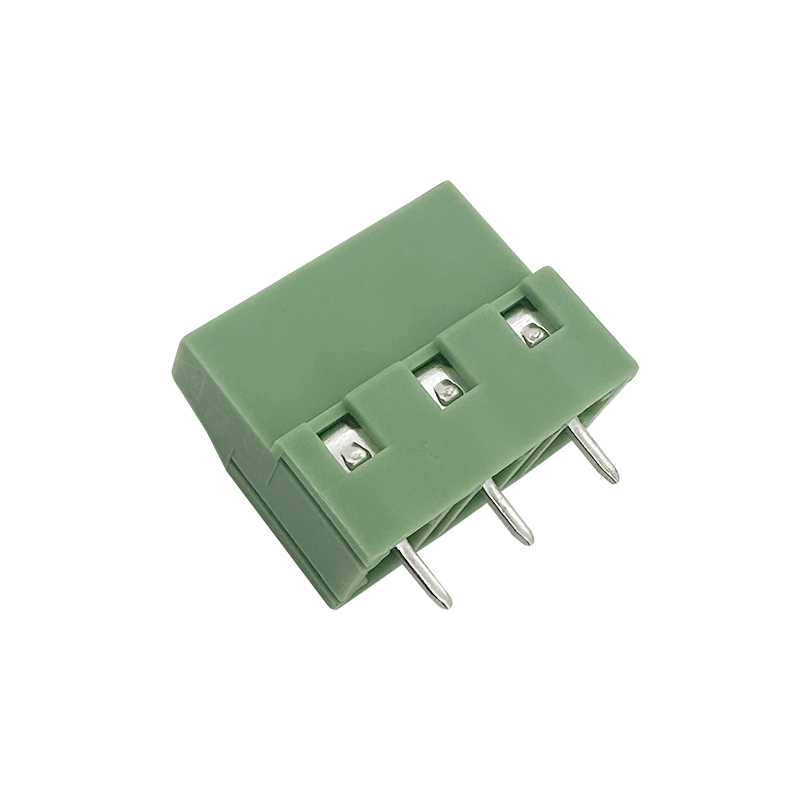

7.50mm & 7.62mm Screw Terminal Block Rising clamp:RHTBY29-7.50&7.62
