Features
-Frequency Range: Compatible with standard telephone frequencies (300 Hz – 3.4 kHz)
-Multiple Line Support: Allows one RJ45 connection to be split into two or more RJ11 (phone) or RJ45 (network) outputs
-Splitting a single telephone line for multiple devices
-Extending network connections in offices or homes
Applications
1.Telephone Line Sharing
2.ADSL/DSL Internet Connection
3.Networking and Ethernet Conversion
4.Connecting Fax Machines and Telephones
Specifications

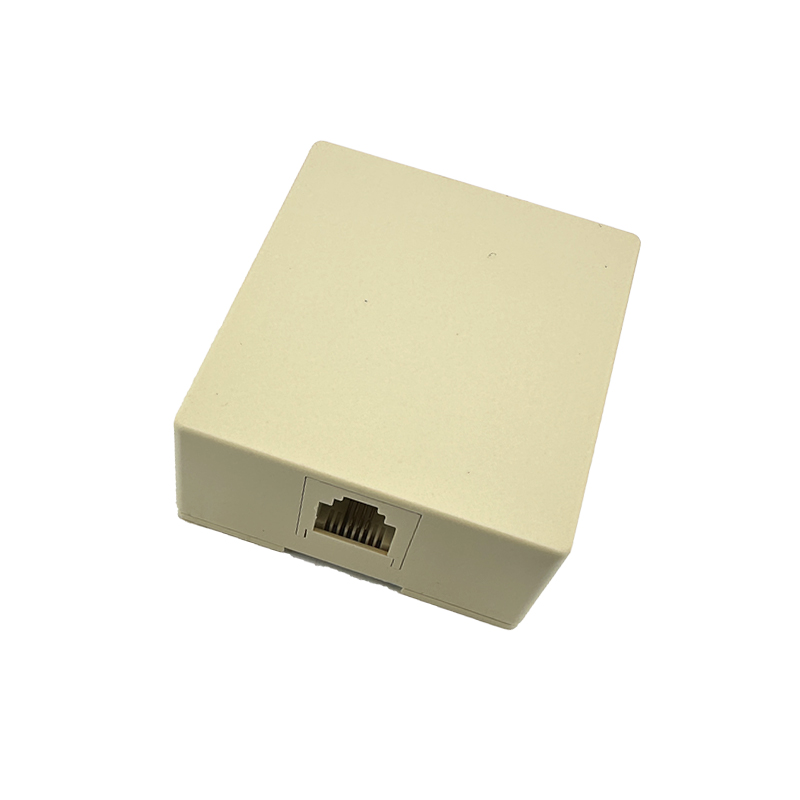

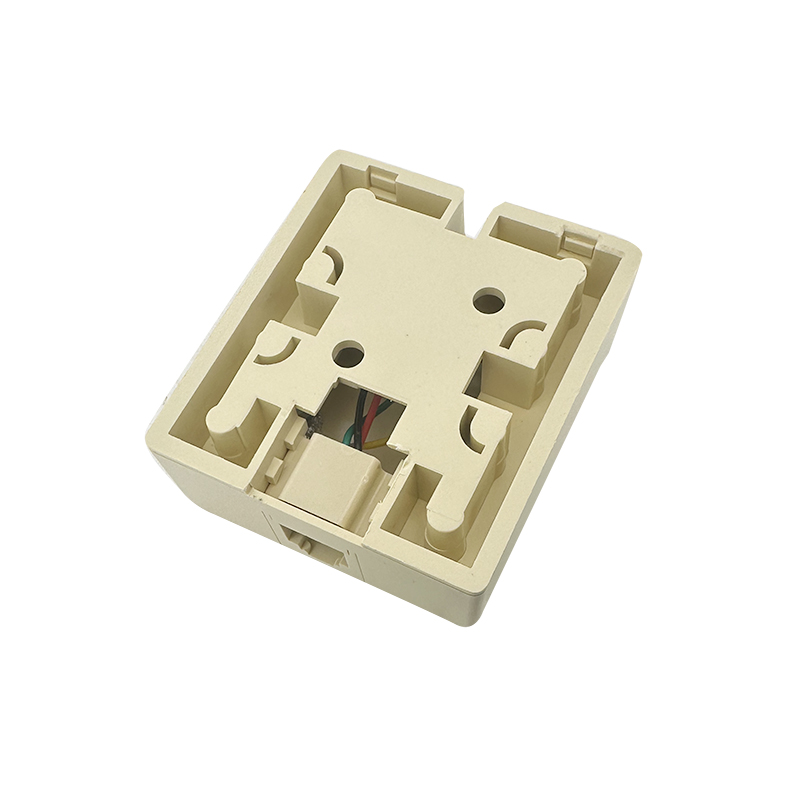

Telephone Splitter Box RJ45
RHTLY88-8P8C
MATERIAL
HOUSING: ABS
CONTACT:PHOSPHOR BRONZE,HARD GOLD
SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH
ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX
WORKING TEMPERATURE : -35°C ~80°C
Technical Documents
Please contact us for more information.
Telephone Splitter Box RJ45:RHTLY88-8P8C
