2EDGRHM
Features
-Pitch Size: Offers options between 5.00mm and 5.08mm pitch, referring to the center-to-center spacing between adjacent terminals, accommodating various wire sizes commonly used in electronic PCB designs.
-Connector Type: Designed with female sockets or receptacles that accept male pins or headers from a corresponding terminal block. This allows for easy and secure connections and disconnections of wires or components.
-Material: Constructed from durable materials such as brass, copper, or tin-plated copper for excellent electrical conductivity and corrosion resistance. The housing material is typically a robust thermoplastic or thermoset material that provides insulation and mechanical support.
-Current Rating: Specifies the maximum current carrying capacity (in amps) that the terminal block can safely handle, ensuring safe operation under specified electrical conditions.
Applications
1.Automotive Electronics
2.LED Lighting Systems
3.Medical Devices
4.Power Supplies and Battery Management
Specifications
Electrical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Material
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Technical Documents
Please contact us for more information.
Pluggable terminal blocks is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Pluggable terminal blocks. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

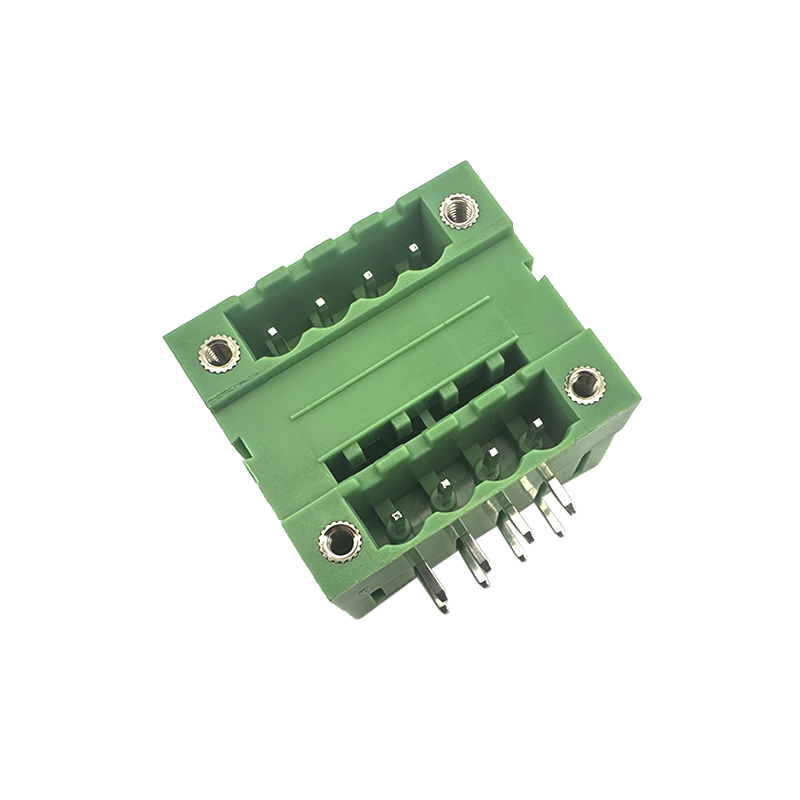

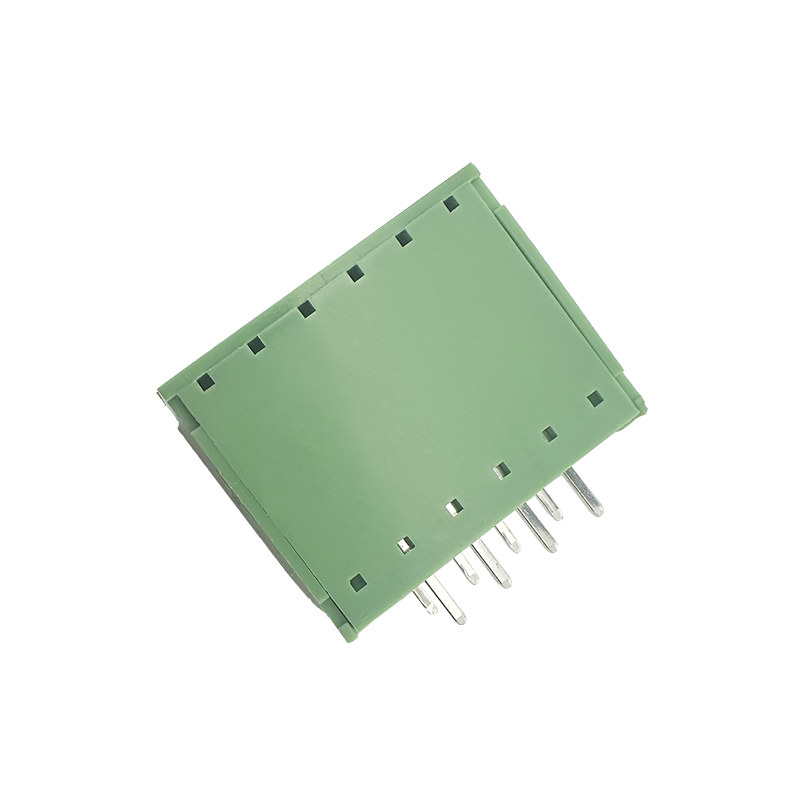

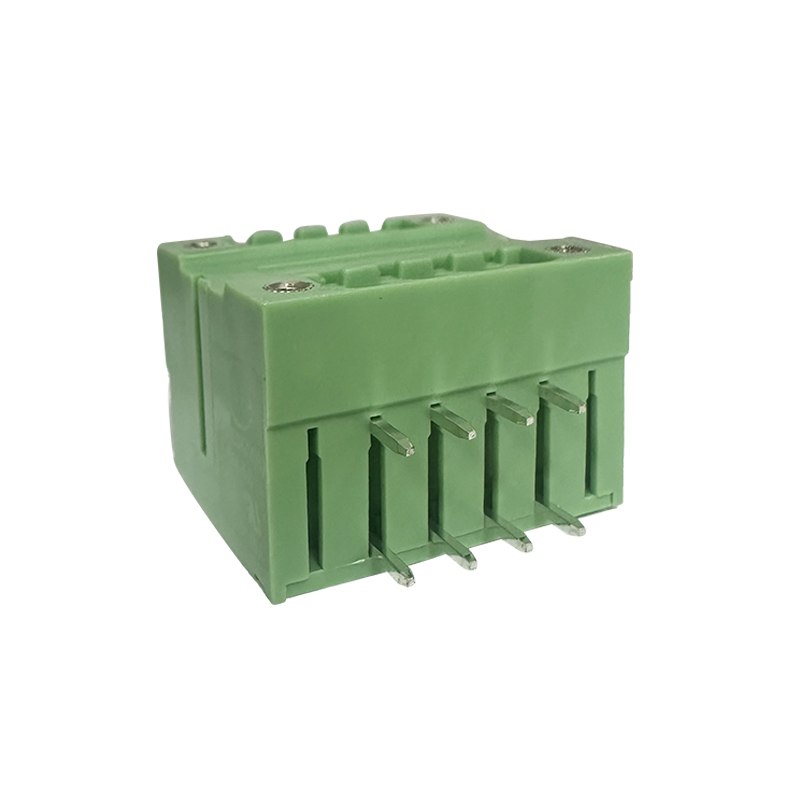

2EDGRHM 5.00mm & 5.08mm Female Pluggable terminal block Right Angle With Fixed hole：RHTBYDDLR-5.00&5.08
