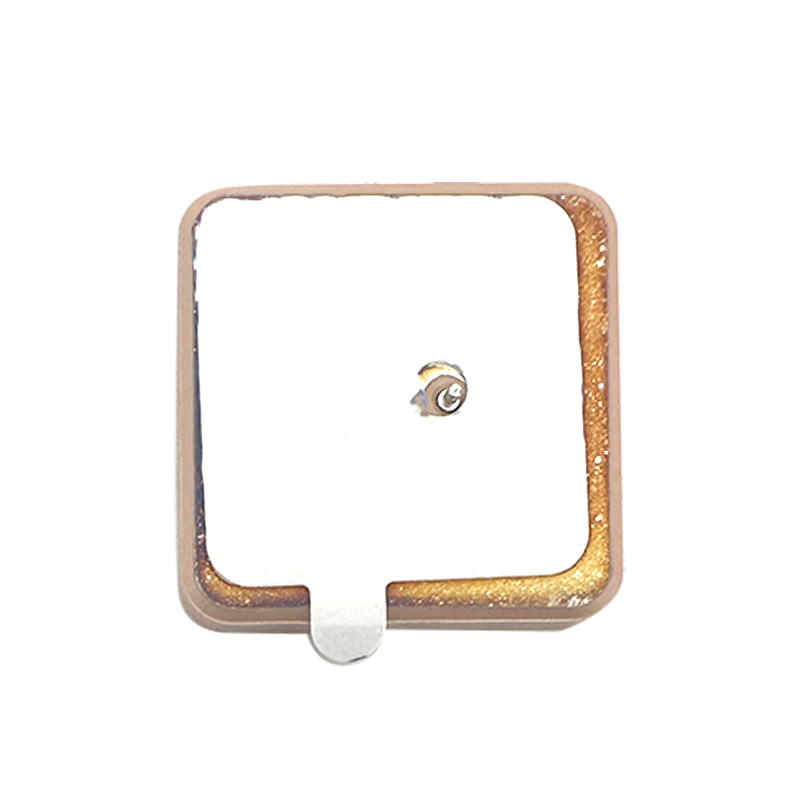

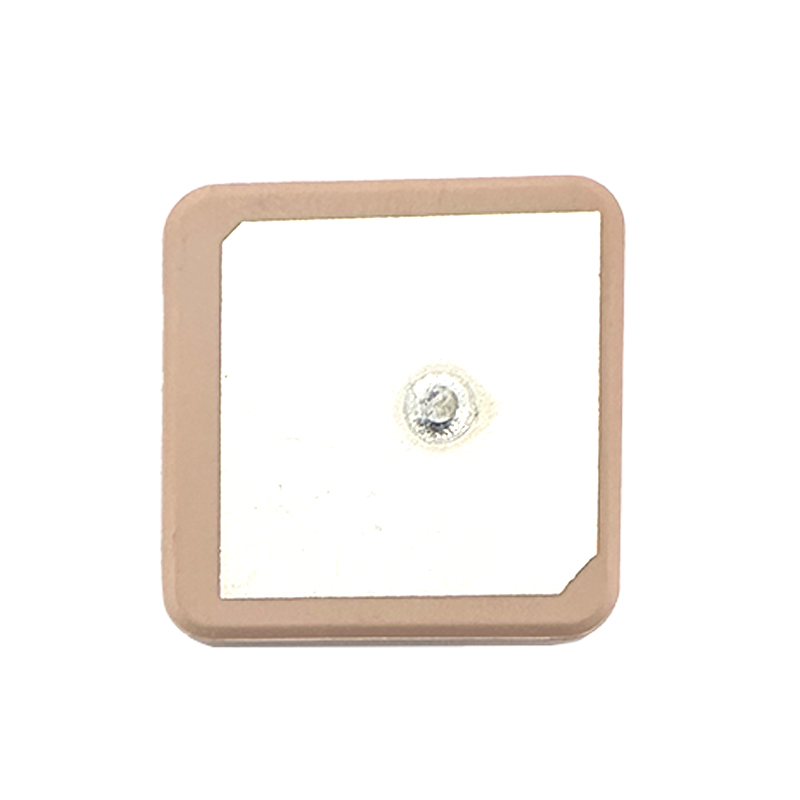

    GPS Dielectric Antenna 15*15*4.0mm:RHTAY1540-1575

    Series Part No: RHTAY1540-1575
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Connector Type: Generally surface-mount (SMD) or pin-type for PCB integration

    -Weight: Lightweight, making it ideal for portable and embedded applications

    -Low Noise Performance: Ensures clear and accurate GPS positioning

    -Compatibility: Works with GPS receivers, GNSS modules, and tracking devices

    Applications

    1.Automotive & Transportation

    2.IoT & Wearable Devices

    3.Asset & Logistics Tracking

    4.Industrial & Agricultural Automation

    Specifications

    Specification:

    Frequency Range:             1575.42±3MHz

    Band Width :                    5MHz Min.

    Polarization:                    RHCP

    In/Out Impedance:            50Ω

    Gain:                                3dBi(Zenith)

    V.S.W.R:                            1.5   Max.

    Axial Ratio  :                    5.0dB Max.

    Operating Temperature :   -40℃~+85℃

    Technical Documents

    Please contact us for more information.
