Features
-Gain:High Gain: Typically offers a gain of around 2dBi to 9dBi, enhancing signal strength and improving communication range and reliability.
-Polarization:Vertical Polarization: Most GSM antennas are vertically polarized to match the polarization of GSM signals, optimizing signal reception and transmission.
-Radiation Pattern:Omni-Directional: Often designed with an omni-directional radiation pattern, allowing it to receive and transmit signals in all horizontal directions, which is ideal for mobile and stationary applications.
-Compact and Lightweight:Portable Design: Compact and lightweight, making it easy to install and integrate into various devices without adding significant bulk.
Applications
1.Telecommunications
2.Consumer Electronics
3.Home Automation
4.Agriculture
Specifications
GSM Antenna For SMA
Order Information
RHTAYSM-02-MS-48MM
Series-RHTAYSM-02
Connector Type:MS-SMA Male Straight Connector/ MR-SMA Male Right Connector
Antenna Length:48mm, 75mm, 90mm
Frequency : 800~2200 MHz
Gain : 2.15-3dBi
VSWR ≤2.0:1
Impedance : 50 ohm
Mounting Type: Chassis Mount
Standard Connector : SMA
Operating Temperature : -40°C to +80°C
Technical Documents
Please contact us for more information.
GSM/CDMA/3G/LTE antennas is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of GSM/CDMA/3G/LTE antennas. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

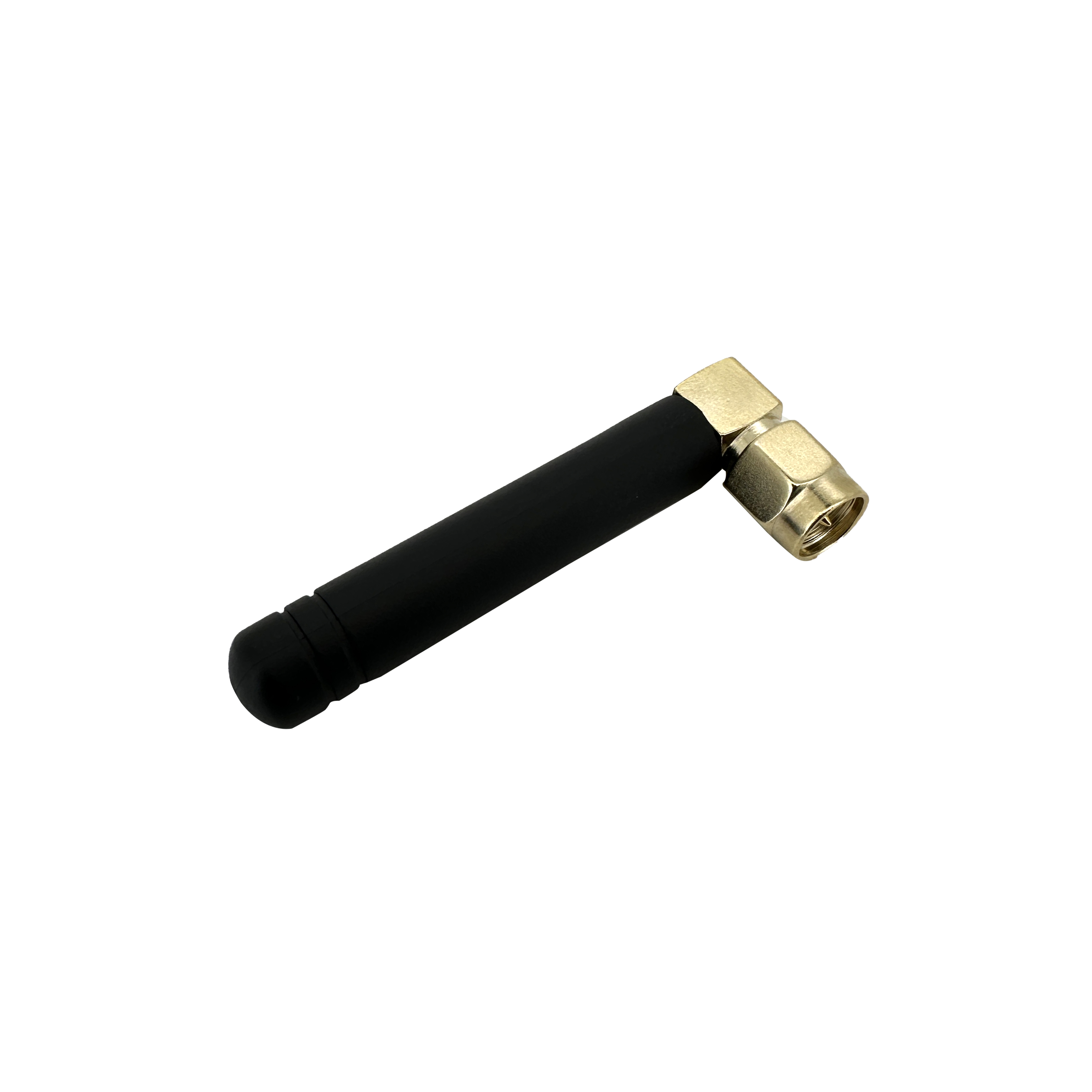

GSM Antenna For SMA:RHTAYSM-02
