Features
-Gain: Typically has a modest gain suitable for portable devices, providing sufficient signal amplification to enhance reception without being overly bulky or power-hungry.
-Connector Type: Equipped with standard RF connectors such as SMA or TS9, ensuring compatibility with various 3G devices like routers, modems, and cellular phones. The specific connector type may vary depending on the model and manufacturer specifications.
-Material and Durability: Constructed from durable materials such as rubber or flexible plastic, ensuring resilience against shocks, vibrations, and environmental factors encountered in mobile and outdoor settings.
-Flexible Base: The base of the antenna is often flexible, allowing it to bend without breaking, which can be advantageous in mobile and portable applications where the antenna may be subject to movement.
Applications
1.Vehicle Applications
2.Remote Monitoring and Surveillance
3.Emergency Communication
4.Field Work and Mobile Offices
Specifications
Frequency : 824~960/1710~2170MHz
Gain : 2dBi
Vswr : 1.5 Max.
Impedance : 50 Ω
Polarization : Vertical
Radiation : OMNIDIRECTIONAL
Connector : SMA-J
Lightning protection: DC Grounding
Operating Temperature : -30°C to +70°C
Technical Documents
Please contact us for more information.
GSM/CDMA/3G/LTE antennas is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of GSM/CDMA/3G/LTE antennas. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

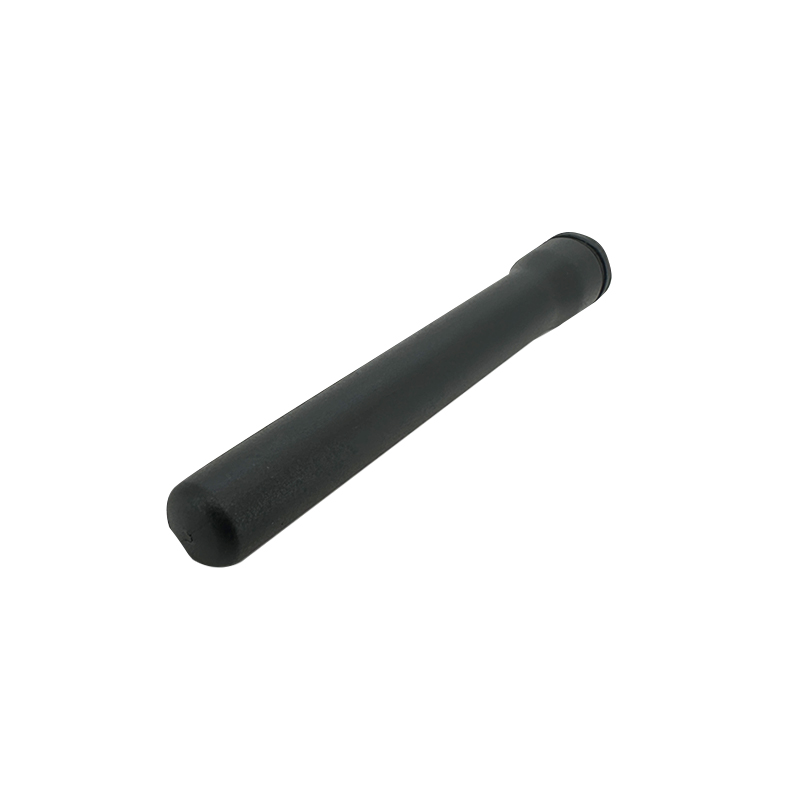

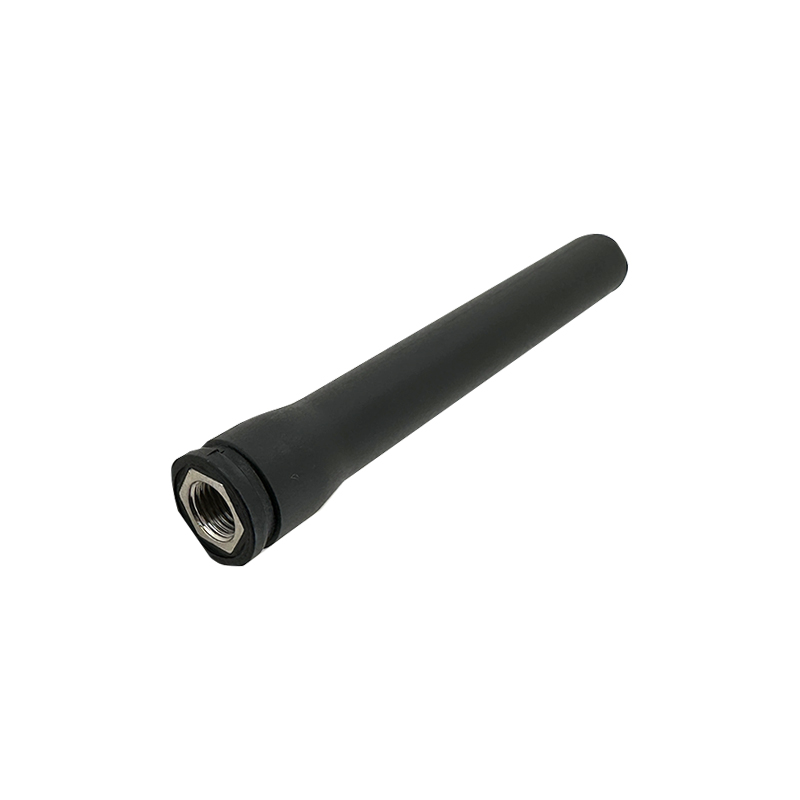

3G Rubber duck Antenna 56mm & 78mm :RHTAYGR102
