Features
-Connector Type: Micro SIM card connector designed for SIM (Subscriber Identity Module) cards used in mobile devices.
-Push-Pull Mechanism: Utilizes a push-pull mechanism for easy insertion and removal of the SIM card. This mechanism allows users to push the card in to insert it and pull it out to remove it, providing a secure and reliable method for managing SIM cards.
-Number of Pins: Contains 6 pins for electrical connections between the SIM card and the device. These pins facilitate data transfer, communication, and power supply between the SIM card and the mobile device.
-Height: Designed with a height of 2.4mm, which is relatively compact and suitable for mobile devices where space is limited but not as low-profile as smaller variants.
Applications
1.Smartphones
2.Tablets
3.IoT Devices
4.M2M Applications
Specifications
1.MATERIAL:
1.1 HOUSING:LCP UL94V-0
1.2 TERMINAL:COPPER ALLOY
2.PLATED
2.1 TERMINAL:
15u"~20u" PLATED ON CONTACT AREA
TIN ON SOLDER AREA
3.ELECTRICAL CHARACTERISTICS:
3.1 CURRENT RATING:DC 0.5A Max.
3.2 VOLTAGE RATING:DC 30V.
3.3 CONTACT RESISTANCE: 50mΩ Max
3.4 INSULATION RESISTANCE:1000MΩ Min.
3.5 WITHSTANDING VOLTAGE:500V AC For 1 Minute.
4.OPERATION TEMPERATURE:-40°C~+85°C
5.DURABILITY :10000 CYCLES
6.SOLDER CONDITION:265°C 5S
7.PACKAGE: TAPE REEL,500PCS/REEL
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

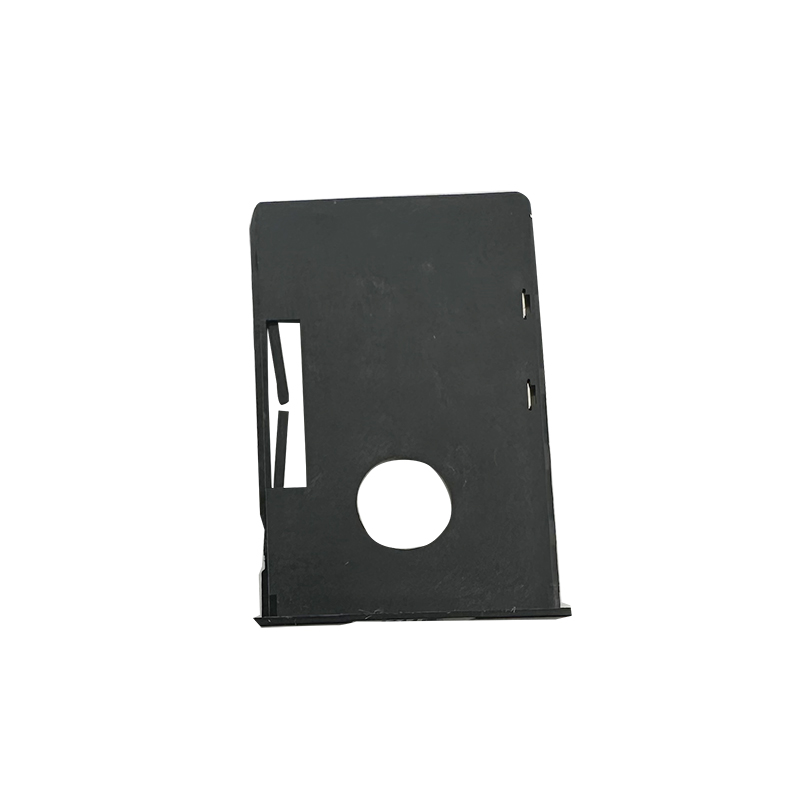

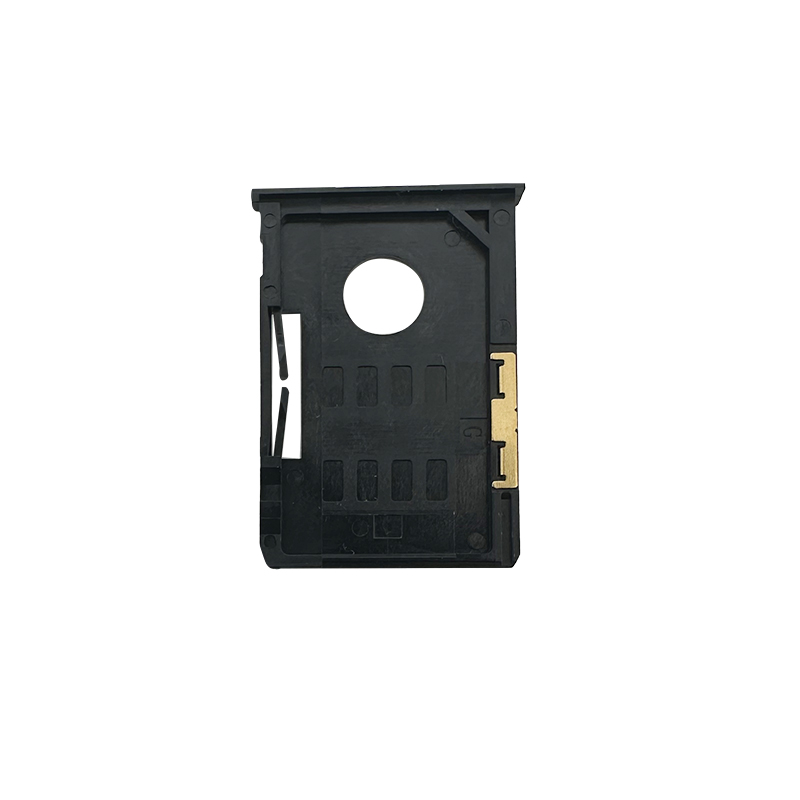

SIM CARD Connector PUSH-PUSH R/A SMD ROHS:RHTAY66-SIM1005BH&RHTAY66-SIM1005BT
