Features
-Mating Cycles:Designed to withstand multiple mating and unmating cycles, ensuring durability and longevity in applications where connectors are frequently plugged and unplugged.
-Polarization and Keying:Some connectors feature polarization keys or notches to ensure correct alignment during mating, preventing misalignment and ensuring secure connections.
-Current Rating:Rated to handle different current ratings depending on the pin size and design. Suitable for applications requiring moderate to high current levels typical in consumer electronics, industrial controls, telecommunications equipment, and more.
-Ejection Mechanism:Higher-end IC socket connectors may feature an ejection mechanism (such as a lever or latch) to facilitate easy removal of ICs without causing damage to the pins or socket contacts.
Applications
1.Medical Devices
2.Test and Measurement Instruments
3.Automotive Electronic
4.Military and Aerospace Applications
Specifications
1.778mm Pitch IC Socket Connector With Dip Type
Order Information
RHTAYF16B-XX-1
XX-No.of 16~64pin
D Size:1=10.16mm 2=15.24mm 3=19.05mm
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Plating: Tin plated 100u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 5000M Ohm min
Contact Resistance: 20mΩmax.
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
IC socket & PLCC socket & ZIF socket connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of IC socket & PLCC socket & ZIF socket connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

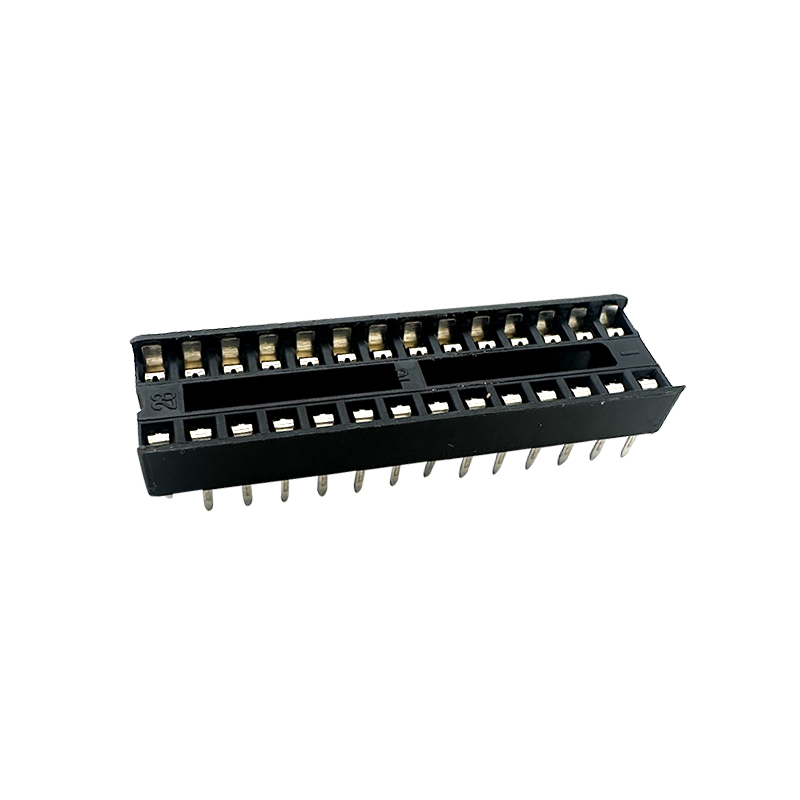

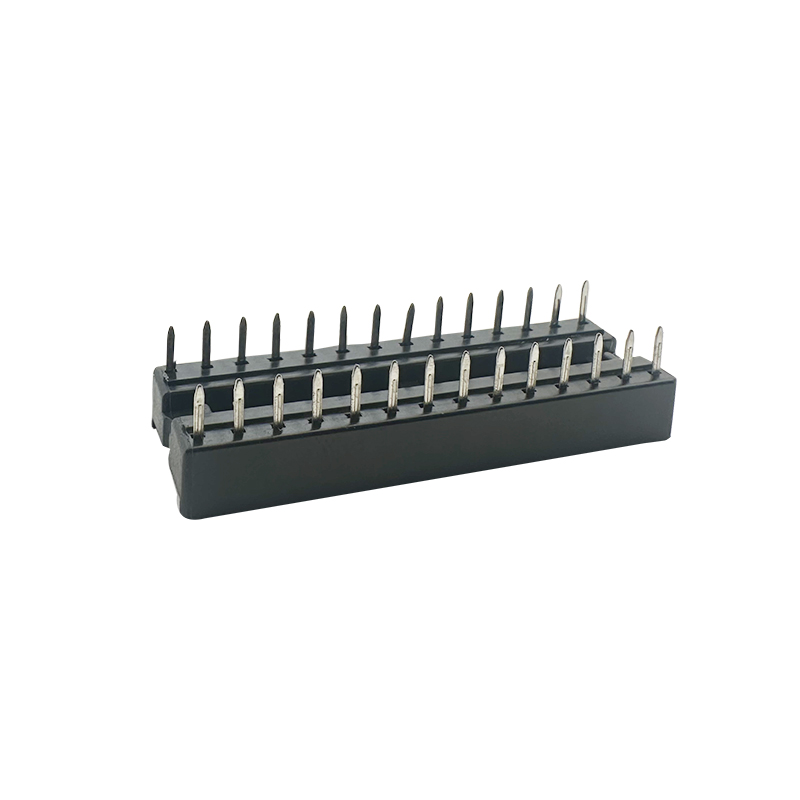

1.778mm Pitch IC Socket Connector:RHTAYF16B
