Features
-Heavy-Duty Construction: Designed for reliable operation in demanding industrial environments.
-Accurate Momentary Function: Ensures precise and repeatable switching performance.
-Compact Panel Mount: Saves space while maintaining durability in control panels.
-Easy Installation: Quick and user-friendly mounting reduces assembly time.
Applications
1.Industrial Automation Systems
2.Electrical Control Panels
3.Production Line Machinery
4.Laboratory & Instrumentation Panels
Specifications
Switch technical Characteristics)：
ITEM Technical parameter Value
1 Electrical Rating 16(3)A 125/250VAC
2 Contact Resistance ≤50mΩ( Initial value)
3 Insulation Resistance ≥100MΩ(500VDC)
4 Dielectric Voltage between non-connected terminals 500V/0.5mA/60S
between terminals and the metal frame 1500V/0.5mA/60S
5 Electrical Life ≥50000 cycles
6 Mechanical Life ≥100000 cycles
7 Operating Temperature 0～125℃
8 Operating Frequency Electrical:15 cycles
Mechanical:60 cycles
9 Vibration Proof Vibration Frequency：10～55HZ；
Amplitude：1.5mm;
Three directions:1H
10 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature：235±5℃
Immersing Time：2～3S
11 Solder Heat Resistance Dip Soldering：260±5℃ 5±1S
Manual Soldering：300±5℃ 2～3S
12 Safety Approvals UL、CSA、TUV、CQC、CE
13 Test Conditions Ambient Temperature：20±5℃
Relative Humidity：65±5%RH
Air Pressure：86～106KPa
ITEM Technical parameter Value
1 Electrical Rating 16(3)A 125/250VAC
2 Contact Resistance ≤50mΩ( Initial value)
3 Insulation Resistance ≥100MΩ(500VDC)
4 Dielectric Voltage between non-connected terminals 500V/0.5mA/60S
between terminals and the metal frame 1500V/0.5mA/60S
5 Electrical Life ≥50000 cycles
6 Mechanical Life ≥100000 cycles
7 Operating Temperature 0～125℃
8 Operating Frequency Electrical:15 cycles
Mechanical:60 cycles
9 Vibration Proof Vibration Frequency：10～55HZ；
Amplitude：1.5mm;
Three directions:1H
10 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature：235±5℃
Immersing Time：2～3S
11 Solder Heat Resistance Dip Soldering：260±5℃ 5±1S
Manual Soldering：300±5℃ 2～3S
12 Safety Approvals UL、CSA、TUV、CQC、CE
13 Test Conditions Ambient Temperature：20±5℃
Relative Humidity：65±5%RH
Air Pressure：86～106KPa
Technical Documents
Please contact us for more information.
Push button switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Push button switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

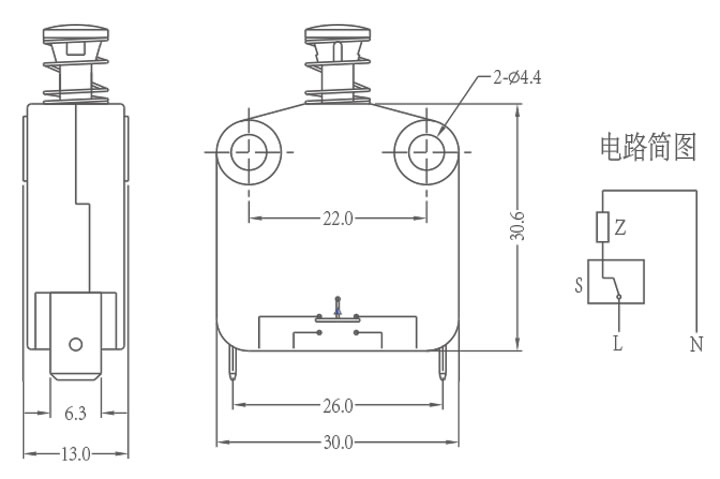

Push Button:RHTNY51-1-05
