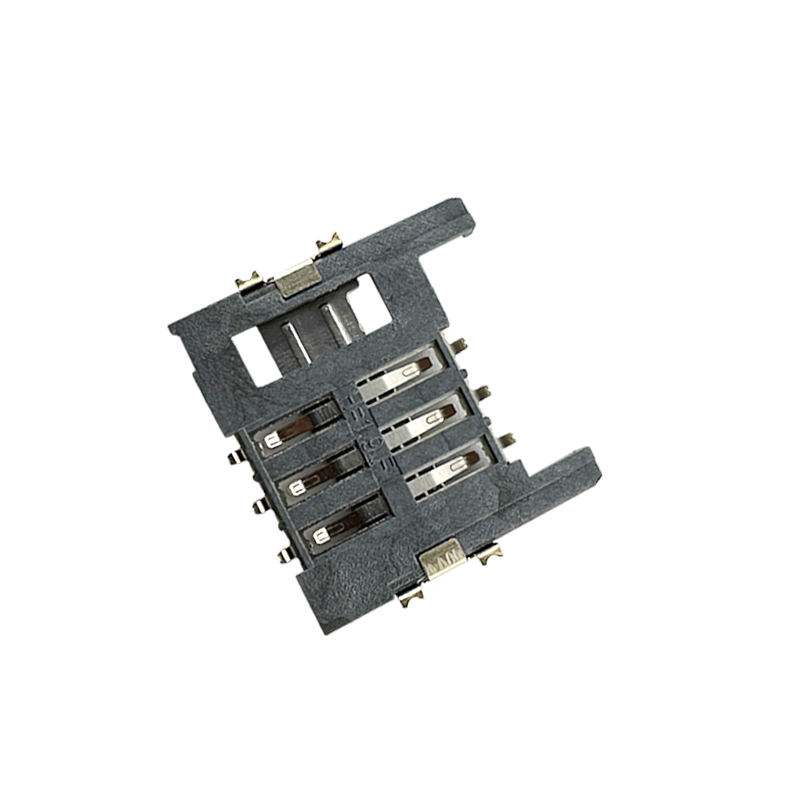

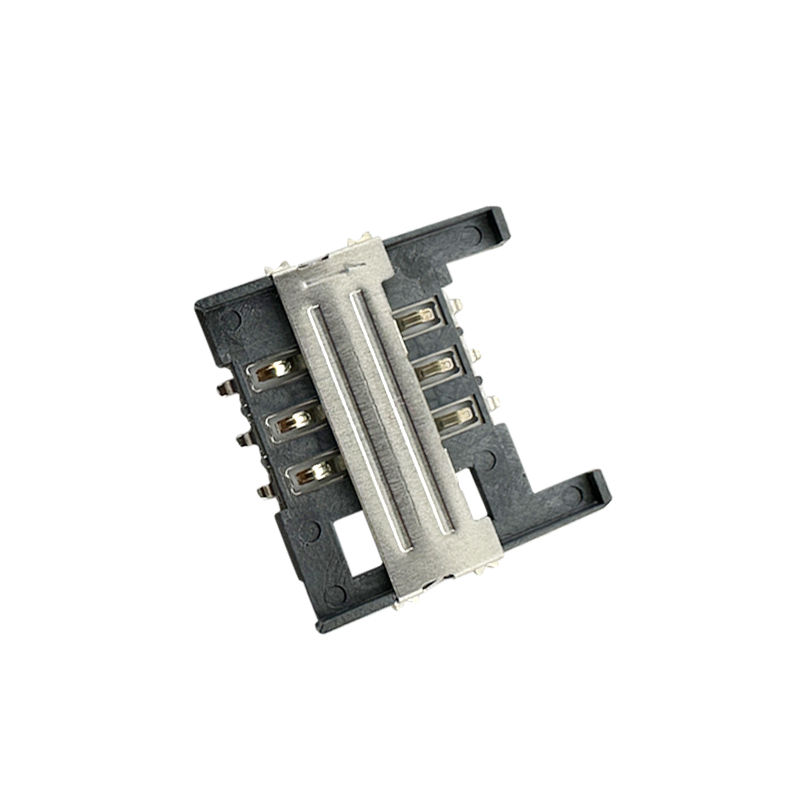

    Micro SIM Card Connector 6P,PUSH PULL,Slot H2.4mm :RHTAYIM-044D

    Series Part No: RHTAYIM-044D
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Connector Type: Micro SIM card connector designed for SIM (Subscriber Identity Module) cards used in mobile devices.

    -Number of Pins: Contains 6 pins for electrical connections between the SIM card and the device. These pins facilitate data transfer, communication, and power supply between the SIM card and the mobile device.

    -Height: Designed with a height of 2.4mm, which is relatively compact and suitable for mobile devices where space is limited but not as low-profile as smaller variants.

    -Push-Pull Mechanism: Utilizes a push-pull mechanism for easy insertion and removal of the SIM card. This mechanism allows users to push the card in to insert it and pull it out to remove it, providing a secure and reliable method for managing SIM cards.

    -RoHS Compliant: Manufactured in compliance with RoHS standards, ensuring that the connector is free from hazardous substances, making it environmentally friendly.

    Applications

    1.Smartphones

    2.Tablets

    3.GPS Devices

    4.IoT Devices

    5.M2M Applications

    Specifications

    Micro SIM Card Connector 6P,PUSH PULL,H2.4mm

    Material:

    Base:Hi-Temp Thermoplastic,UL94V-0.Black.

    Data Contact:Copper Alloy,Gold Plated.

    Shell:Stainless Steel,Gold Plated.

    Electrical:

    Contact Resistance:50mΩ typical,100Ω Max.

    Insulation Resistance:>1000MΩ/500V DC.

    3.Solderability

    Vapor phase:215ºC.30sec.Max.

    IR feflow:250ºC.5sec.Max.

    Manual soldering:370ºC.3sec.Max.

    Operating Temperature: -45ºC~+105ºC

    Technical Documents

    Please contact us for more information.
