Features
-Load Capacitance: Common values range from 6pF to 12pF
-Frequency Tolerance: ±10 ppm to ±50 ppm (customizable for precise timing applications)
-Compact Size: 3.2mm × 2.5mm × 0.8mm, ideal for space-constrained designs
-Low ESR (Equivalent Series Resistance): Ensures efficient oscillation with minimal power loss
Applications
1.Wireless Communication & IoT
2.Automotive Electronics
3.Industrial & Medical Applications
4.Computing & Networking
Specifications
Ultra thin/Dimensions (3.2x2.5x0.8)
Nominal frequency range：10.000-54.000 MHZ，54.000~125.000 MHZ
Crystal cut：Fundamental [AT-cut]，3rd overtone [AT-cut]
Storage temperature range：-40°C-+85°C
Operating temperature range：-10℃-+60℃，-30°C-+85°C
Frequency temperature characteristics(Ref. to +25°C)：±10x10-6，±15x10-6
Frequency tolerance (at +25°C)：±10x10-6
Equivalent series resistance：Please Refer to the Following ESR Table
Load capacitance：Series, 10pF, 12pF, 16pF
Shunt capacitance：5pF max.
Level of drive：10μW (100μW max.)
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

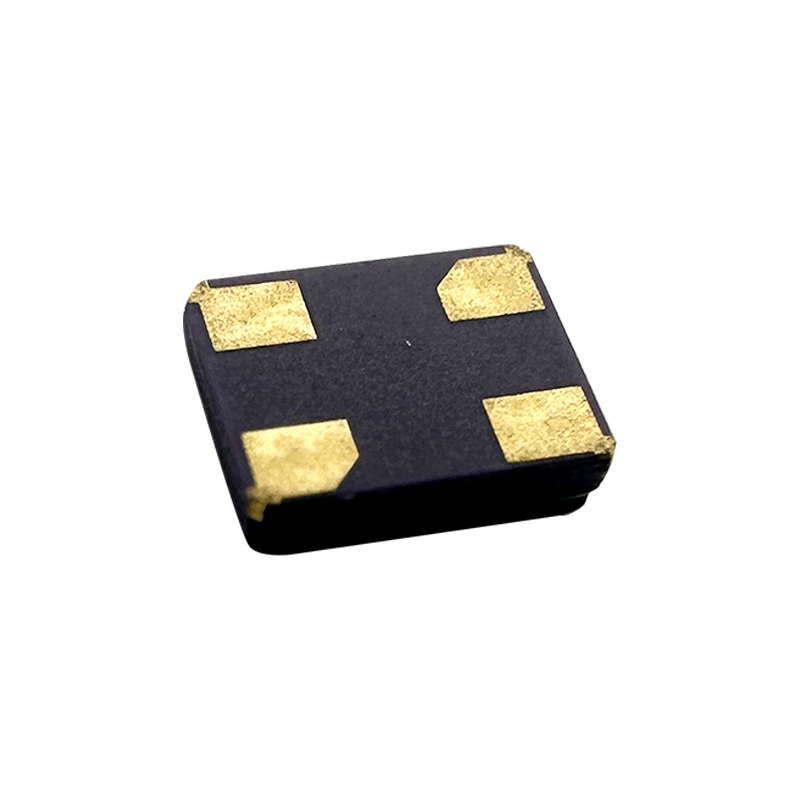

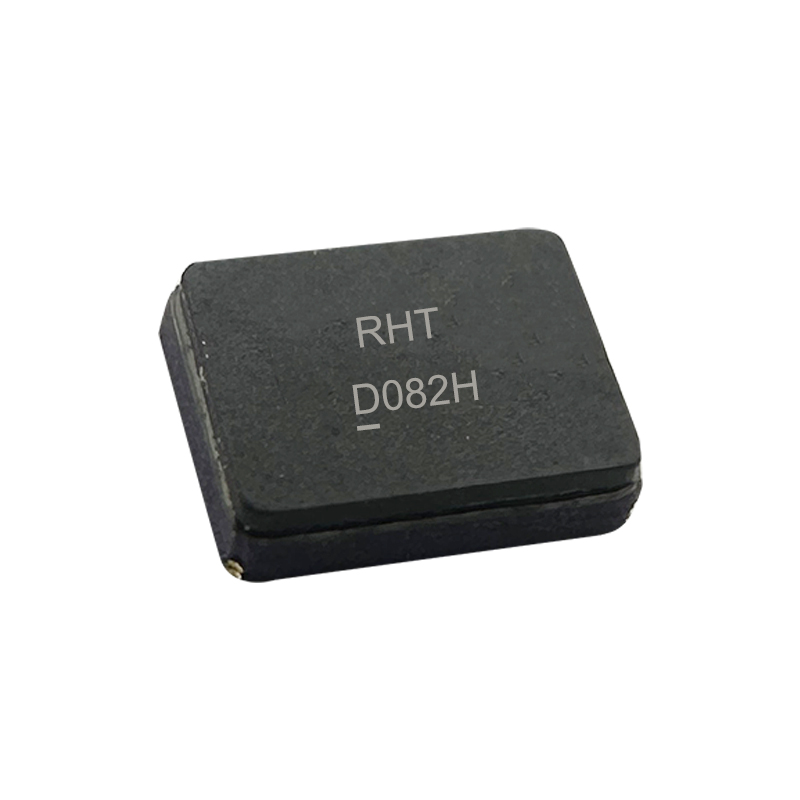

Crystal Units Glass SMD 3.2x2.5x0.8mm:RHTNY7C3225
