Features
-Used as a stable frequency reference in a wide array of digital circuits
-Frequency Tolerance @ 25°C: ±10 to ±50 ppm
-Frequency Stability over temp (–40°C to +85°C): ±10 to ±50 ppm
-Ensures consistent timing performance across temperature variations
Applications
1.Microcontroller and Processor Clocking
2.Networking Equipment
3.Consumer Electronics
4.Automotive Electronics
Specifications
Dimensions (5.0x3.2x1.1)
Nominal frequency range：8.000-54.000 MHZ，45.000~60.000 MHZ
Crystal cut：Fundamental [AT-cut]，3rd overtone [AT-cut]
Storage temperature range：-40°C~+85℃
Operating temperature range：-10°C~+70℃，-30°C~+85°C
Frequency temperature characteristics(Ref. to +25°C):±30x10-6 , ±50x10-6 ,±100x10-6
Frequency tolerance(at+25°C):±30x10-6 , ±50x10-6
Equivalent series resistance:Please Refer to the Following ESR Table
Load capacitance:Series, 10pF, 12pF,16pF, 18pF,20pF
Shunt capacitance:5pF max.
Level of drive:10μW (100μW max.)

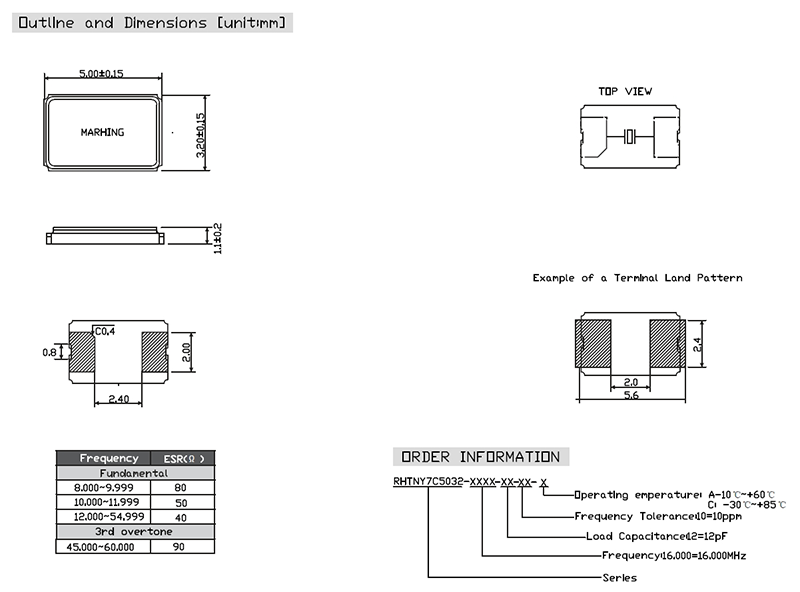

| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.
Crystal Units Glass SMD 5.0x3.2x1.1mm:RHTNY7C5032
