Features
-Size: While larger than smaller SMD crystal units, the 7.0x5.0x1.1 mm package provides a robust footprint suitable for applications where space-saving is less critical but can accommodate larger components.
-Frequency Range: Available in a wide range of frequencies typically from MHz to GHz, depending on specific model and application requirements.
-Frequency Stability: Provides stable oscillation frequency with minimal frequency drift over temperature changes and aging, ensuring consistent performance over time.
-High Accuracy: Offers high precision in frequency output, critical for maintaining accurate timing and synchronization in electronic circuits.
Applications
1.Telecommunications Equipment
2.Industrial Automation
3.Test and Measurement Instruments
4.Medical Devices
Specifications
Ultra thin/Dimensions (7.0x5.0x1.1)
Nominal frequency range：6.000~40.000 MHz，30.000~100.000 MHZ
Crystal cut：Fundamental [AT-cut]，3rd overtone [AT-cut]
Storage temperature range：-40°C~+85°C
Operating temperature range：-10℃~+60℃，-30℃~+85℃
Frequency temperature characteristics(Ref. to +25°C)：±10x10-6,±20x10-6
Frequency tolerance (at +25℃):±10x10-6,±20x10-6,±30x10-6
Equivalent series resistance:Please efer to the ollowing ESR Table
Load capacitance:Series, 16pF,20pF,30 pF
Shunt capacitance:5pF max.
Level of drive:10μW( 100μW max .)
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

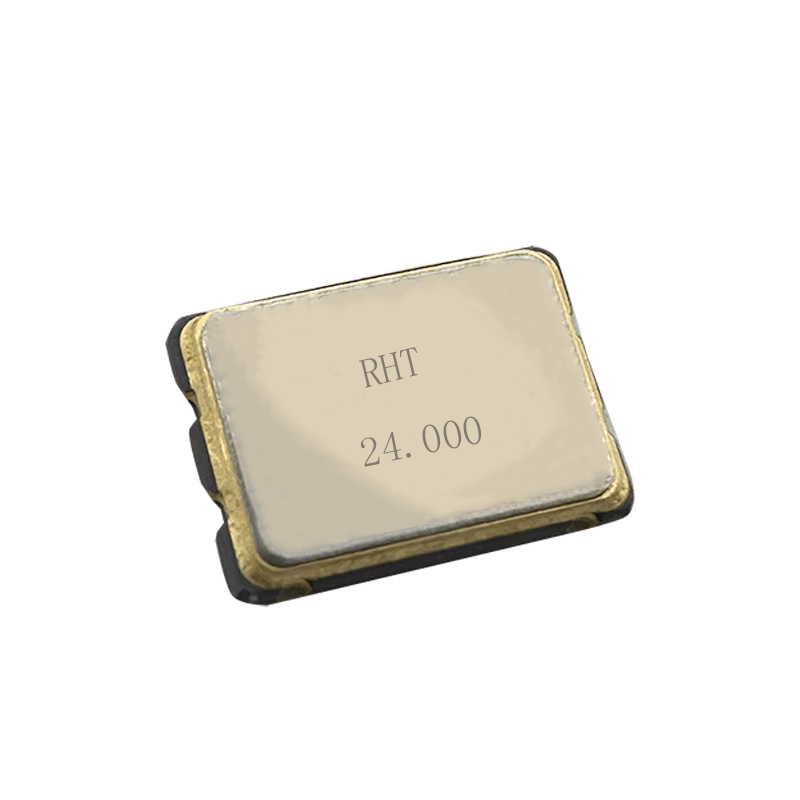

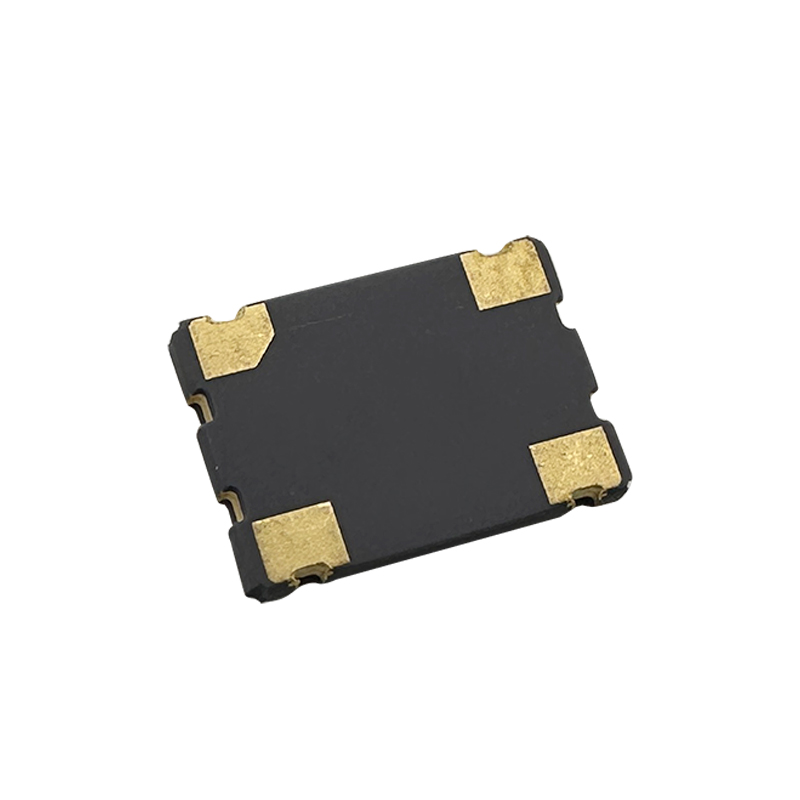

Crystal Units Ceramic SMD 7.0x5.0x1.1mm :RHTNYC7050
