Features
-Compact Size: Although larger than smaller SMD crystal units, the 6.0x3.5x1.0 mm package still maintains a relatively compact footprint, suitable for applications where space-saving is important but can accommodate larger components.
-Frequency Range: Available in a wide range of frequencies typically from MHz to GHz, depending on specific model and application requirements.
-Frequency Stability: Provides stable oscillation frequency with minimal frequency drift over temperature changes and aging, ensuring consistent performance over time.
-High Accuracy: Offers high precision in frequency output, critical for maintaining accurate timing and synchronization in electronic circuits.
Applications
1.IoT Devices
2.Embedded Systems
3.Test and Measurement Equipment
4.Military and Aerospace Applications
Specifications
Ultra thin/Dimensions (6.0x3.5x1.0)
Vacuum Seam Sealed
Ceramic Package
Tight Tolerance and Stability
Nominal frequency range：8.000-50.000 MHZ
Crystal cut：Fundamental [AT-cut]
Storage temperature range：-40℃~+85℃
Operating temperature range：-10°C-+60℃ ， -30°C-+85℃
Frequency temperature characteristics(Ref. to +25°C)：±10x10-6 ，±15x10-6
Frequency tolerance (at +25°C)：±10x10-6
Equivalent series resistance：Please Refer to the Following ESR Table
Load capacitance：Series, 10pF, 12pF, 16pF
Shunt capacitance：5pF max
Level of drive：10μW (100μW max.)
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

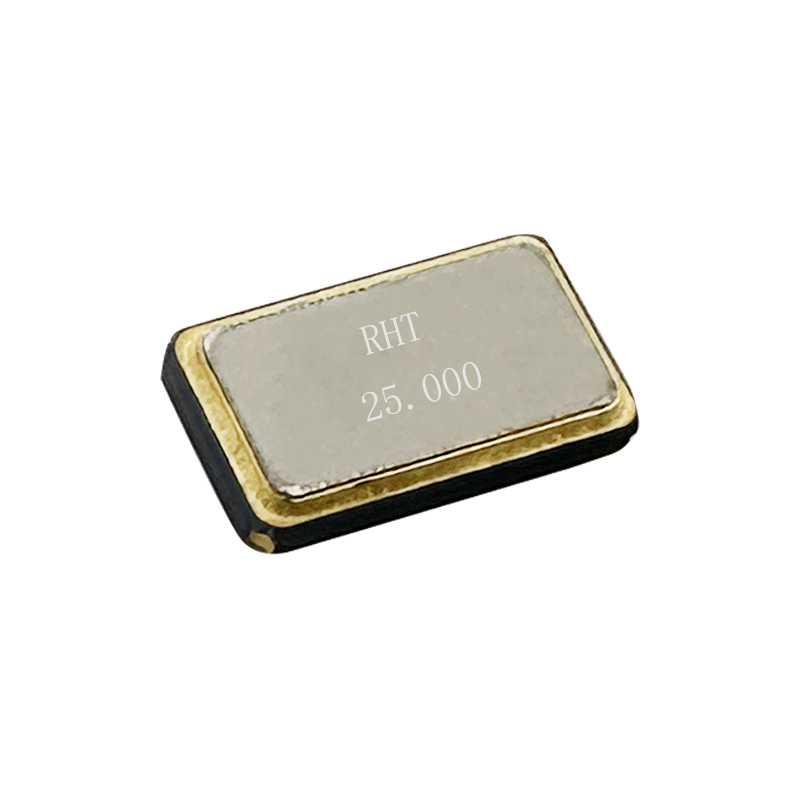

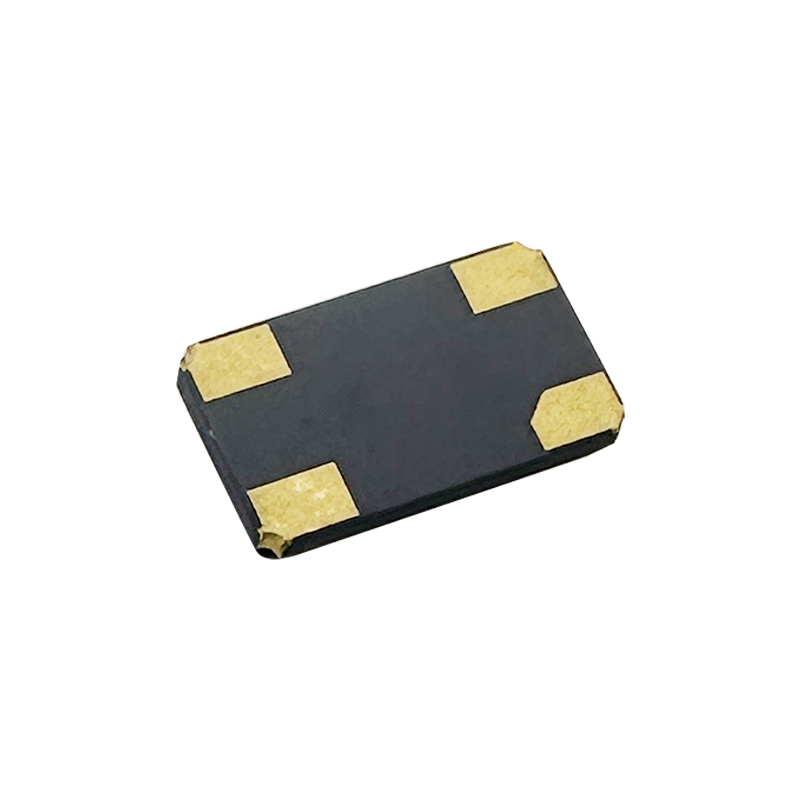

Crystal Units Ceramic SMD 6.0x3.5x1.0mm:RHTNYC6035
