Features
-Ideal for space-constrained designs such as smartphones, wearables, and compact embedded systems.
-Precise frequency control for clock generation in microcontrollers, RF modules, and timing circuits.
-Low ESR (typically 50–100 Ω), suitable for high-frequency and low-power oscillator circuits.
-Temperature Stability: Often includes temperature-compensated cuts or materials to minimize frequency variations across temperature ranges, ensuring reliable operation in various environmental conditions.
Applications
1.Microcontroller Clock Sources
2.Wireless Communication Modules
3.Wearable and Portable Devices
4.Smartphones and Tablets
Specifications
Ultra thin/Dimensions (3.2x2.5x0.8)
Nominal frequency range：10.000-54.000 MHZ ，54.000~125.000 MHZ
Crystal cut：Fundamental [AT-cut]，3rd overtone [AT-cut]
Storage temperature range：-40℃~+85°℃
Operating temperature range：-10℃-+60℃，-30°C-+85℃
Frequency temperature characteristics(Ref. to +25°C)：±10x10-6，±15x10-6
Frequency tolerance (at +25°C)：±10x10-6
Equivalent series resistance：Please Refer to the Following ESR Table
Load capacitance：Series, 10pF, 12pF, 16pF
Shunt capacitance：5pF max.
Level of drive：10μ W （100μ .W max）
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

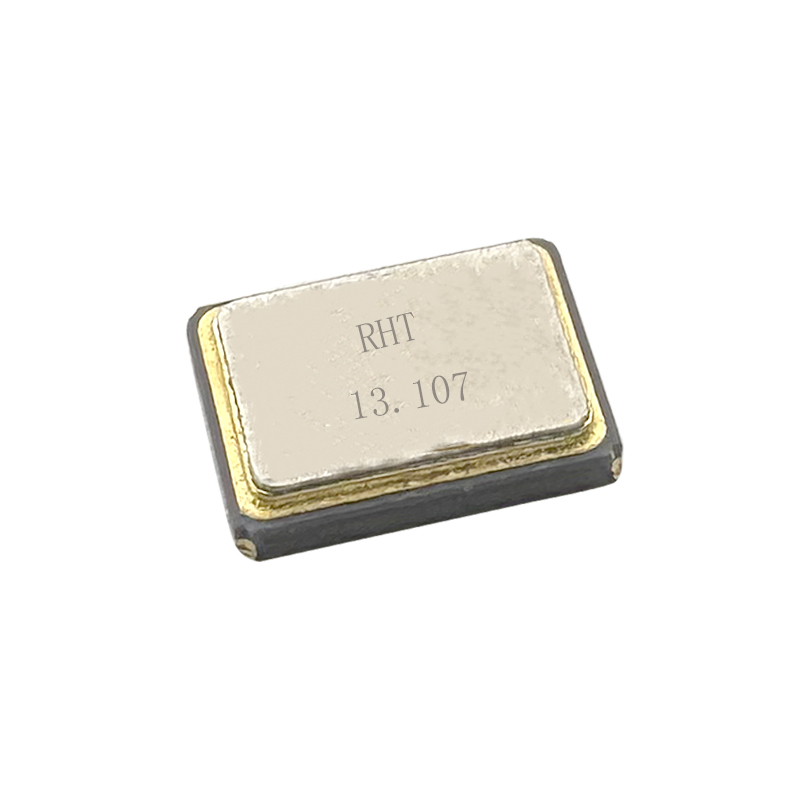

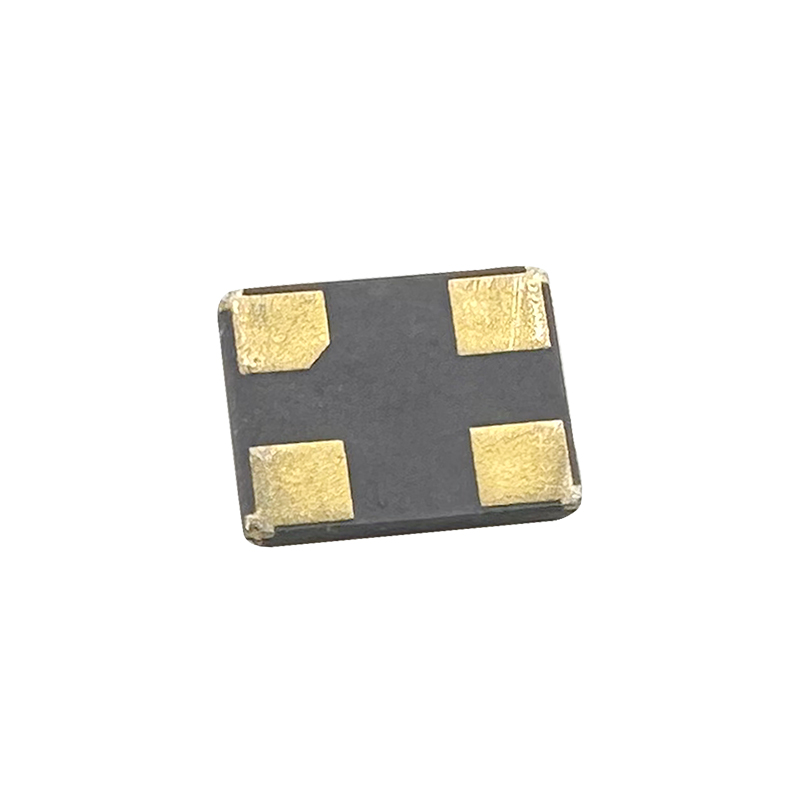

Crystal Units Ceramic SMD 3.2x2.5x0.8mm:RHTNYC3225
