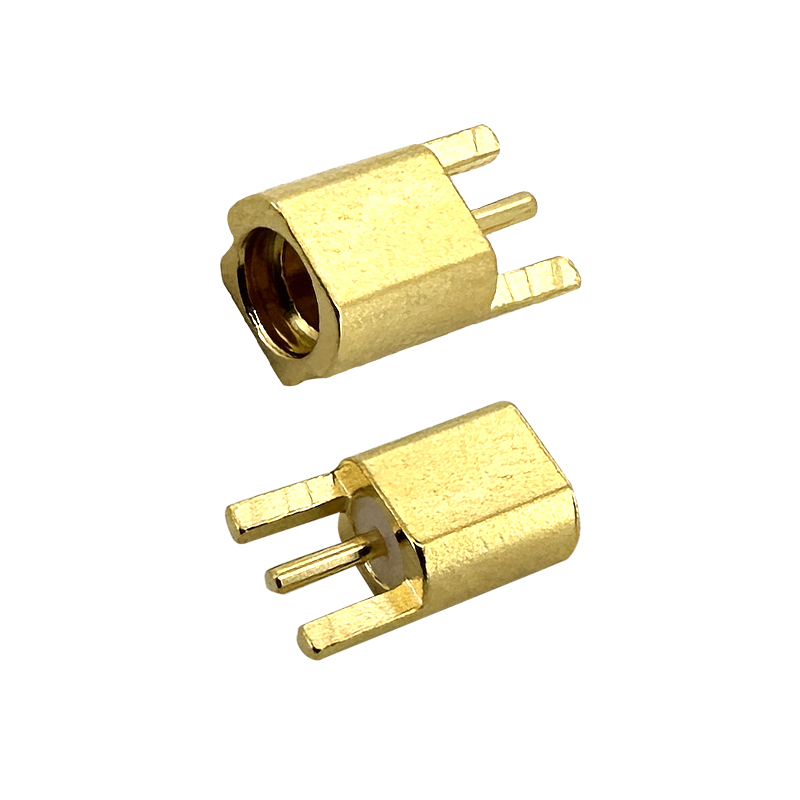

    PCB Mount MMCX Connector (Jack,Female,50Ω) Cross Molex:0734150963 :RE-C-MMCX002

    Series Part No: RE-C-MMCX002
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews

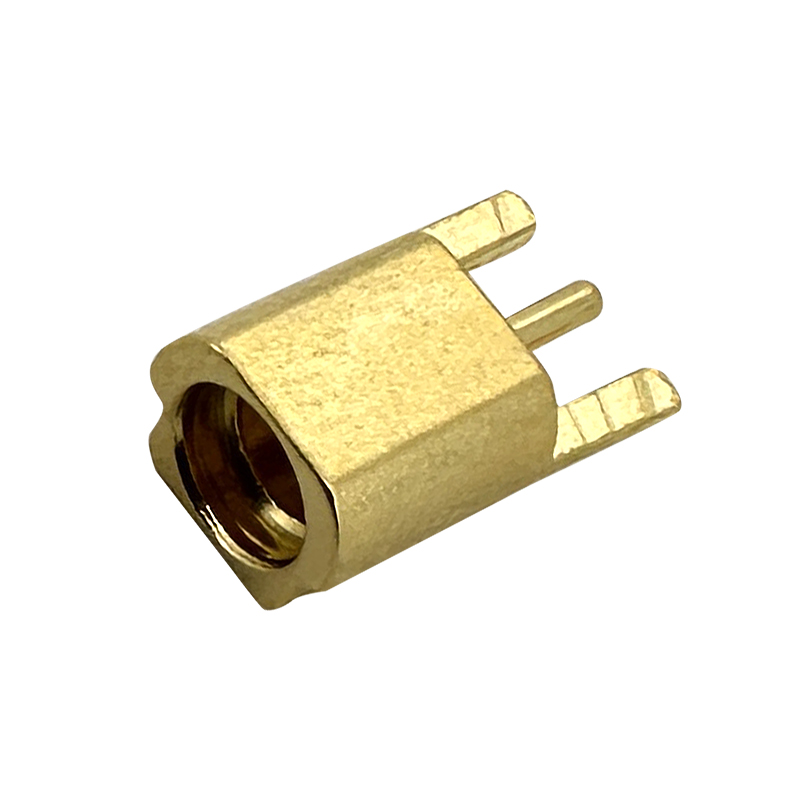

    PCB Mount MMCX Connector  With Jack Female  Straight Type

    Amphenol RF C908-22100-714855 Alternative RE-C-MMCX002
    Molex 734150963 Alternative RE-C-MMCX002
    Johnson / Cinch Connectivity Solutions 135-3711-801 Alternative RE-C-MMCX002

    Electrical Specifications

    Impedance:50 Ω
    Frequency Range:DC - 6 GHz
    VSWR:
    1.15 max. @ DC - 4 GHz
    1.40 max. @ 4 - 6 GHz
    RF-Leakage:
    60 dB minimum @ 1 GHz (flexible cable)
    70 dB minimum @ 1 GHz (semi-rigid cable)
    Voltage Rating (at sea level)  :≤ 170 Vrms
    Contact Resistance:
    center contact: ≤ 10 mΩ
    outer contact: ≤ 5 mΩ
    Insulation Resistance:1,000 MΩ minimum
    Dielectric Withstanding Voltage:500 Vrms (at sea level)


    Mechanical

    Mating:Snap-on coupling
    Contact Captivation:2.3 lbs
    Engagement Force:≤ 3.4 lbs (15N)
    Disengagement Force:≥ 1.4 lbs (6N)
    Durability (matings):500 cycles Min.
    Temperature Range:-55°C to +155°C


    Material

    Body and Outer Contacts :Brass, nickel or gold plated
    Male Contact :Brass, gold plated
    Female Contact :Beryllium copper or phosphor bronze, gold plated
    Crimp Ferrule:Copper or brass, nickel plated
    Insulator:LCP, PTFE or PFA
