Features
-Audio Support: Capable of transmitting multi-channel audio formats such as Dolby Digital, DTS, and uncompressed audio formats for immersive sound experiences.
-Video Support: Supports various video formats including Standard Definition (SD), High Definition (HD), and Ultra High Definition (UHD) formats with deep color and high refresh rates.
-Compatibility: Compatible with various HDMI standards (e.g., HDMI 1.4, HDMI 2.0, HDMI 2.1), ensuring interoperability with a wide range of HDMI-enabled devices.
-Data Transfer: Supports high-definition video resolutions up to 4K Ultra HD (2160p) and higher, delivering crystal-clear visuals.
Applications
1.Home Entertainment Systems
2.Gaming Consoles and PCs
3.Digital Signage and Display Systems
4.Professional Audio/Visual (AV) and Broadcasting
Specifications

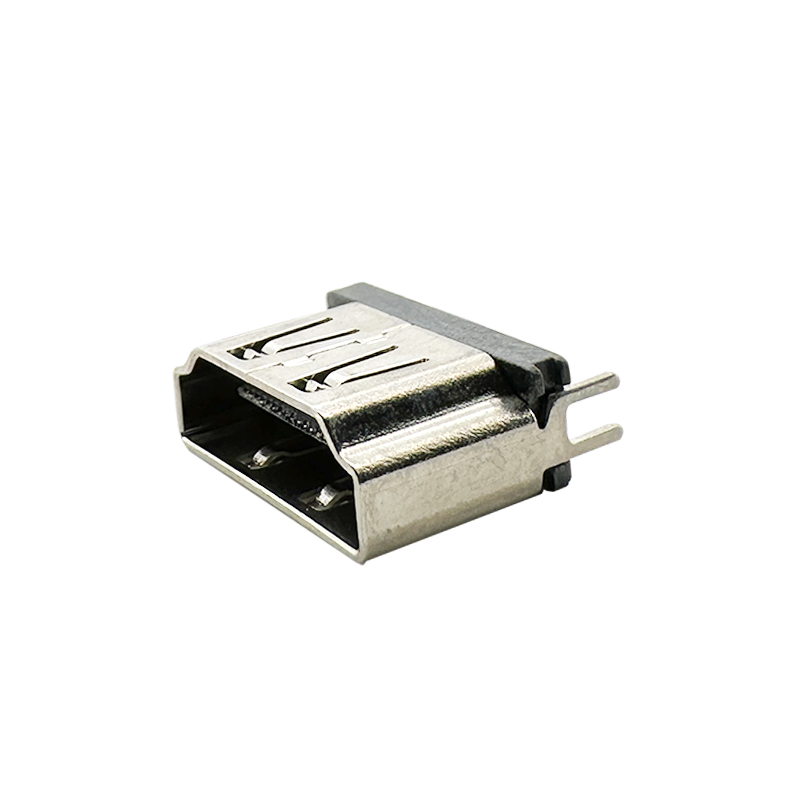

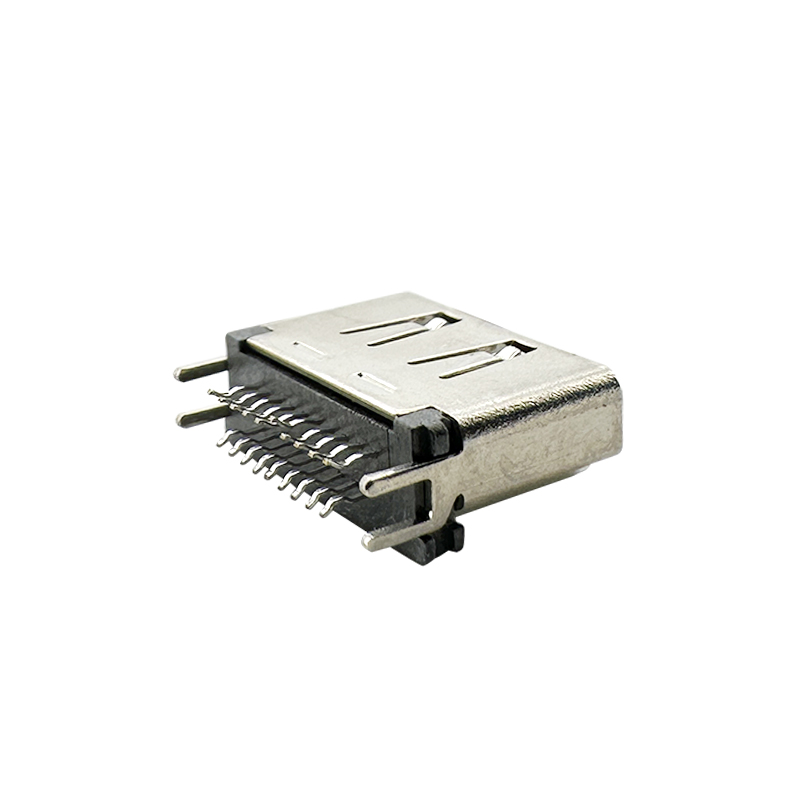

HDMI Connector With Female Dip 180 19P
How to order Example:
RHTAY87-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC
Technical Documents
Please contact us for more information.
DVI connectors & HDMI connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of DVI connectors & HDMI connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
HDMI Female Connector :RHTAY87
