Features
-Connector Type: HDMI (High-Definition Multimedia Interface)
-Standard HDMI Type A Interface: The most commonly used HDMI port type, compatible with a wide range of devices such as TVs, monitors, projectors, gaming consoles, and more.
-Gender: Female (socket)
-Pin Configuration: Typically includes 19 pins, arranged to transmit digital audio, video, and control signals.
-Termination Type: Designed to receive male HDMI connectors, providing a secure and stable connection.
Applications
1.Streaming Devices
2.Home Theater Systems
3.Medical and Healthcare Applications
4.Education and Training
5.Consumer Electronics
Specifications

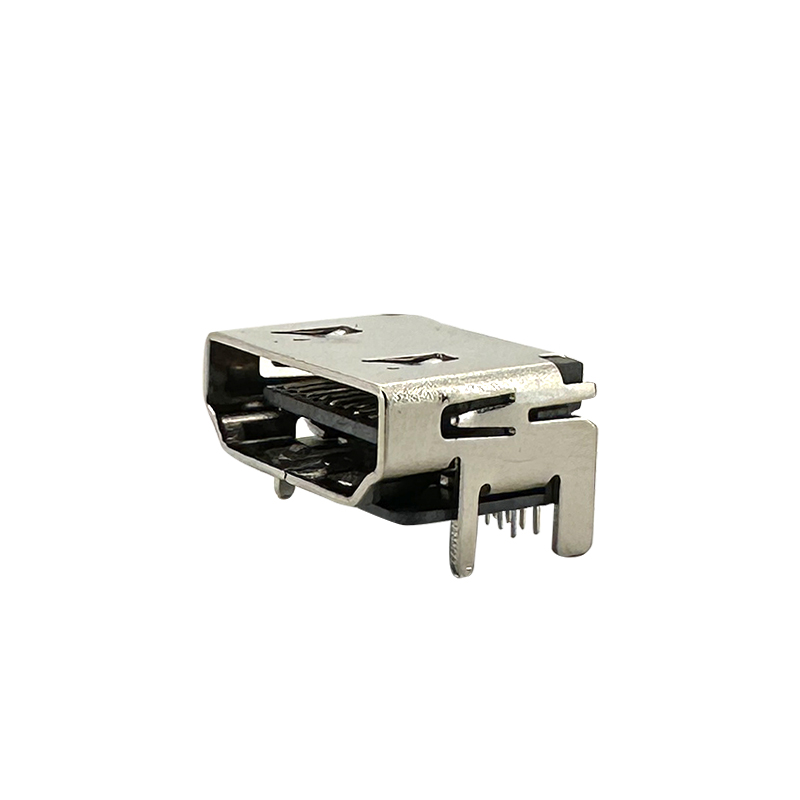

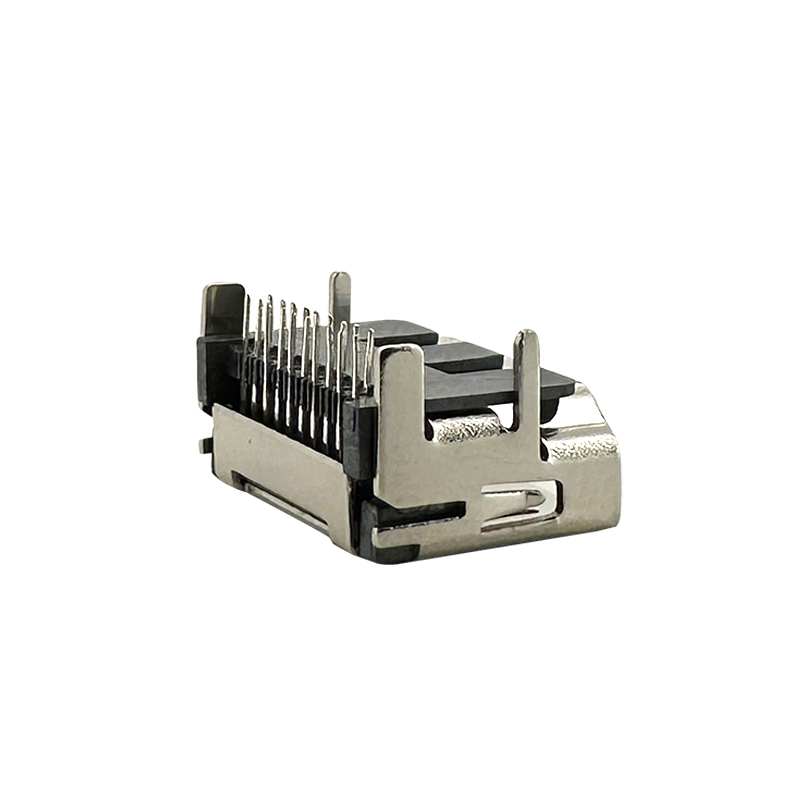

HDMI Female Connector SMT 19P
How to order Example:
RHTAYB85-1-N-30
Shell Material: 1-Brass 2-SPCC
Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U " / 3 = 3U" / 5 = 5U " / 10 = 10U" / 15 = 15U " / 30 = 30U"
Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC
