Features
-Connector Type: Micro USB Type B connector, which is commonly used for data transfer and power charging in various electronic devices.
-Solder Type (T3.0): Indicates that the connector is designed for soldering onto a printed circuit board (PCB), ensuring a secure and permanent connection.
-Dimensions (L6.8mm): The overall length of the connector, indicating its compact size suitable for small electronic devices.
-Design: Engineered for durability and reliability, with a robust housing and contacts that withstand frequent insertion and removal cycles.
Applications
.Mobile Phones and Smartphones
2.Tablets and E-readers
3.Digital Cameras and Camcorders
4.Portable Media Players
Specifications
Material
Housing:Hing Temperature Thermoplastics,
UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

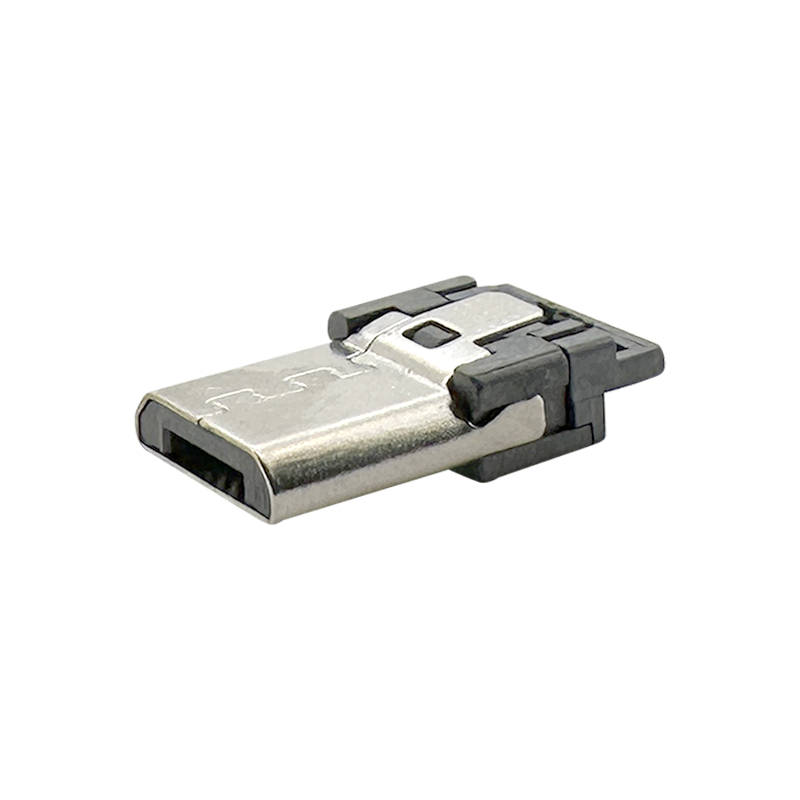

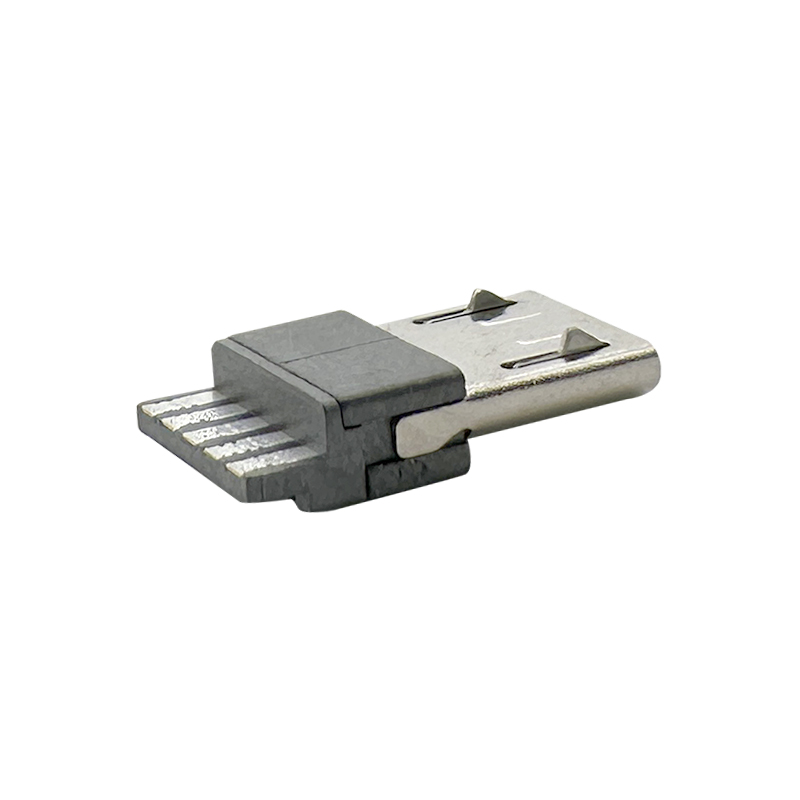

CONN PLUG MICRO USB TYPE B Solder T3.0,L6.8mm:RHTAY35-1
