Features
-Connector Type: Micro USB connectors are compact and widely used for data transfer and power charging in various electronic devices.
-2P: Refers to 2 positions or contacts within the connector, indicating the number of electrical connections available.
-DIP (Dual Inline Package): Designed for through-hole mounting directly onto a printed circuit board (PCB), providing a secure and reliable connection.
-Design: Engineered for durability and reliability, with a robust housing and contacts that withstand frequent insertion and removal cycles.
Applications
Specifications
1.Embedded Systems and Development Boards
2.IoT (Internet of Things) Devices
3.Peripheral Devices
4.DIY Electronics Projects
Technical Documents
Material
Housing:Hing Temperature Thermoplastics,Black.
Contact:Copper Alloy C1591.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.57kgf Max.
Unmated Force:1.02kgf Min.
Please contact us for more information.
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

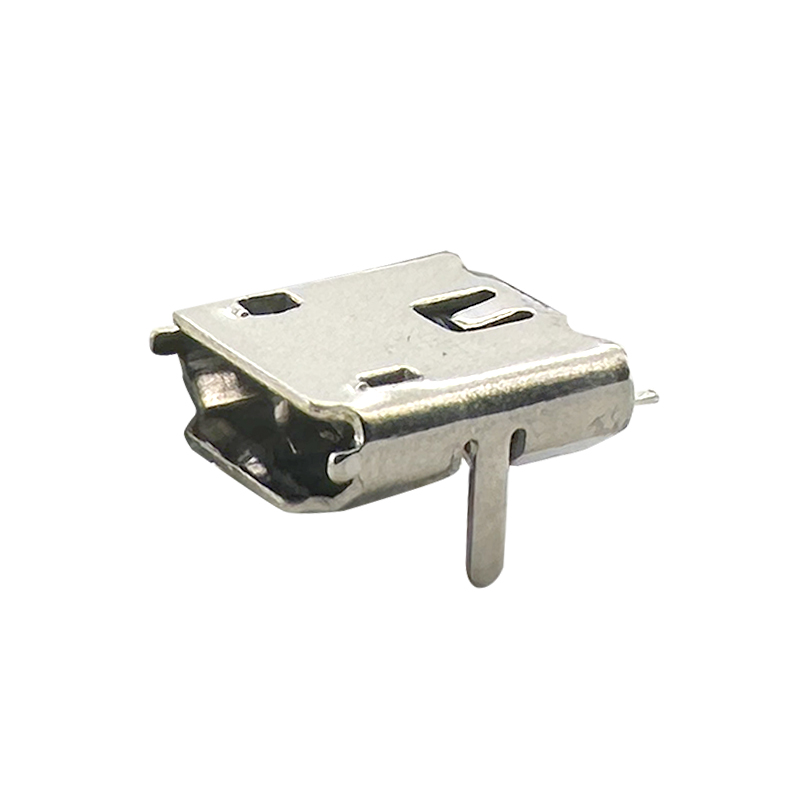

CONN MICRO USB 2P DIP :RHTAY251
